Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DMG MORI - DMF 180/7HU-MIL-DMG-2018-00004
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI DMF 180/7 For Sale | gindumac.com

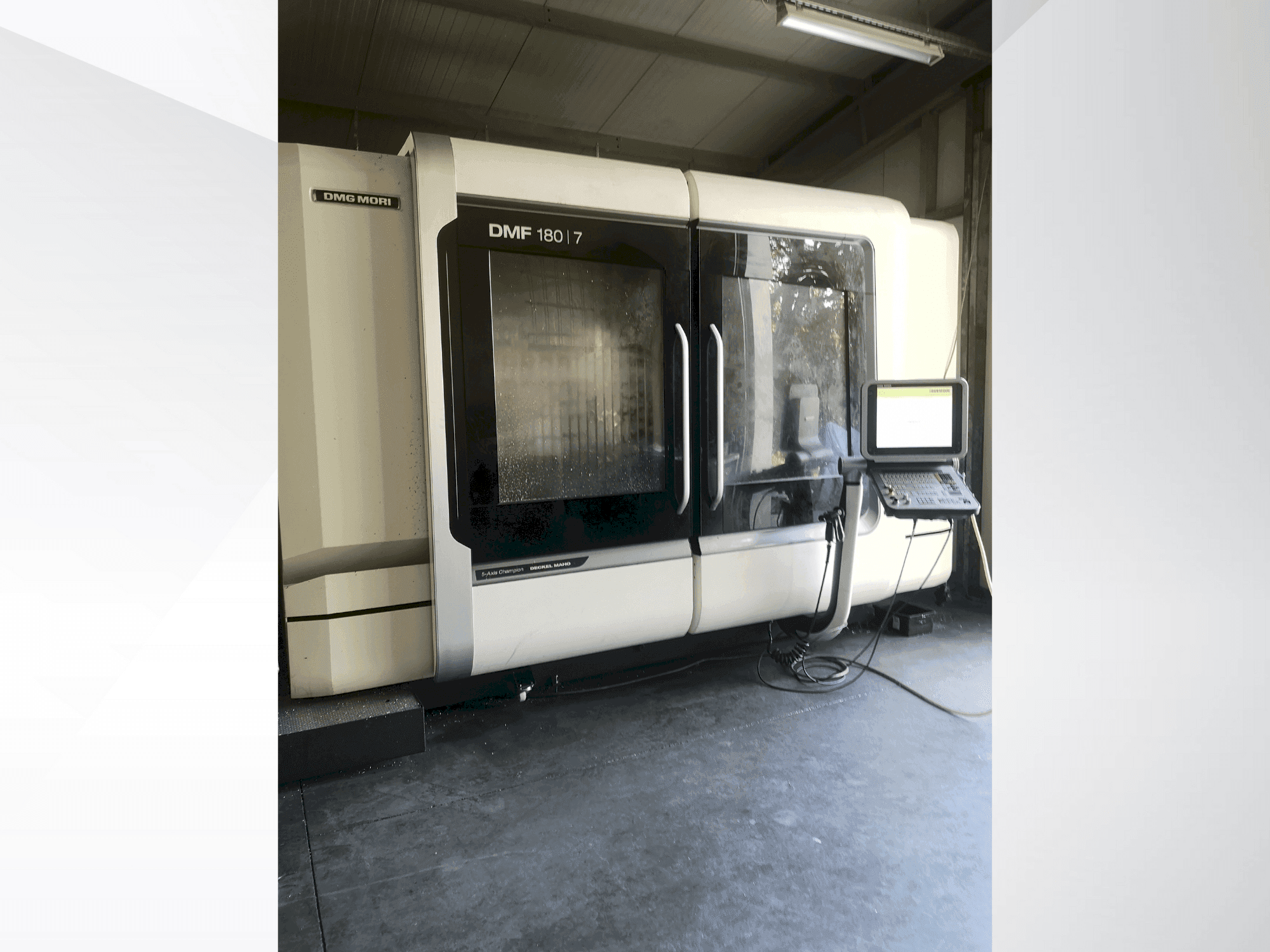

This 5-axis DMG MORI DMF 180/7 was manufactured in 2018, offering advanced capabilities for diverse machining needs. Ideal for complex geometries and precision tasks, this universal machining centre represents a significant asset for enhancing production efficiency. Consider the opportunity to buy this DMG MORI DMF 180/7 universal machining centre. Contact us for more information about this machine.
Overview
- brand: DMG MORI
- year: 2018
- MODEL: DMF 180/7
- application type: Milling
- Location: Hungary
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMF 180/7
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Dimensions
- Table Length: 2100 mm
- Table Width: 700 mm
Movement
- Number of Axes: 5
Technical Specification
- Spindle Power: 35 kW
- Spindle Speed: 20000 RPM
Additional Information
Additional equipment
- Tool Holder: SK40 DIN 69871, DIN 69872 /Tool Magazine: 30 Positions / Tool Change Time: 7.6 s
- Internal Coolant (B-axis)
- Fully Enclosed Cabin, Rotating Control Panel
- Central Lubrication / Chip Conveyor (Chip Disposal) / Air Cooling Through Nozzles / Selectable via M-Function / Infrared Measuring Probe TS649 DMG
- 3D QuickSET Extension Package / Electronic Handwheel
- Documentation in Hungarian / Control Screen in German/Hungarian
Machine Benefits
Technical Machine Benefits
- Moving column machine
- 3d control heidenhain tnc 640 / ergoline® control 19" display / operation mode
- Torque: 130 nm / 86 nm
- Rapid traverse: 40 m/min / rapid traverse acceleration: 4 m/s²
- Load capacity: max 500 kg
- Ixed table with built-in rotary / table diameter: 750 mm / table centrally positioned / tilting rotary table preparation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
