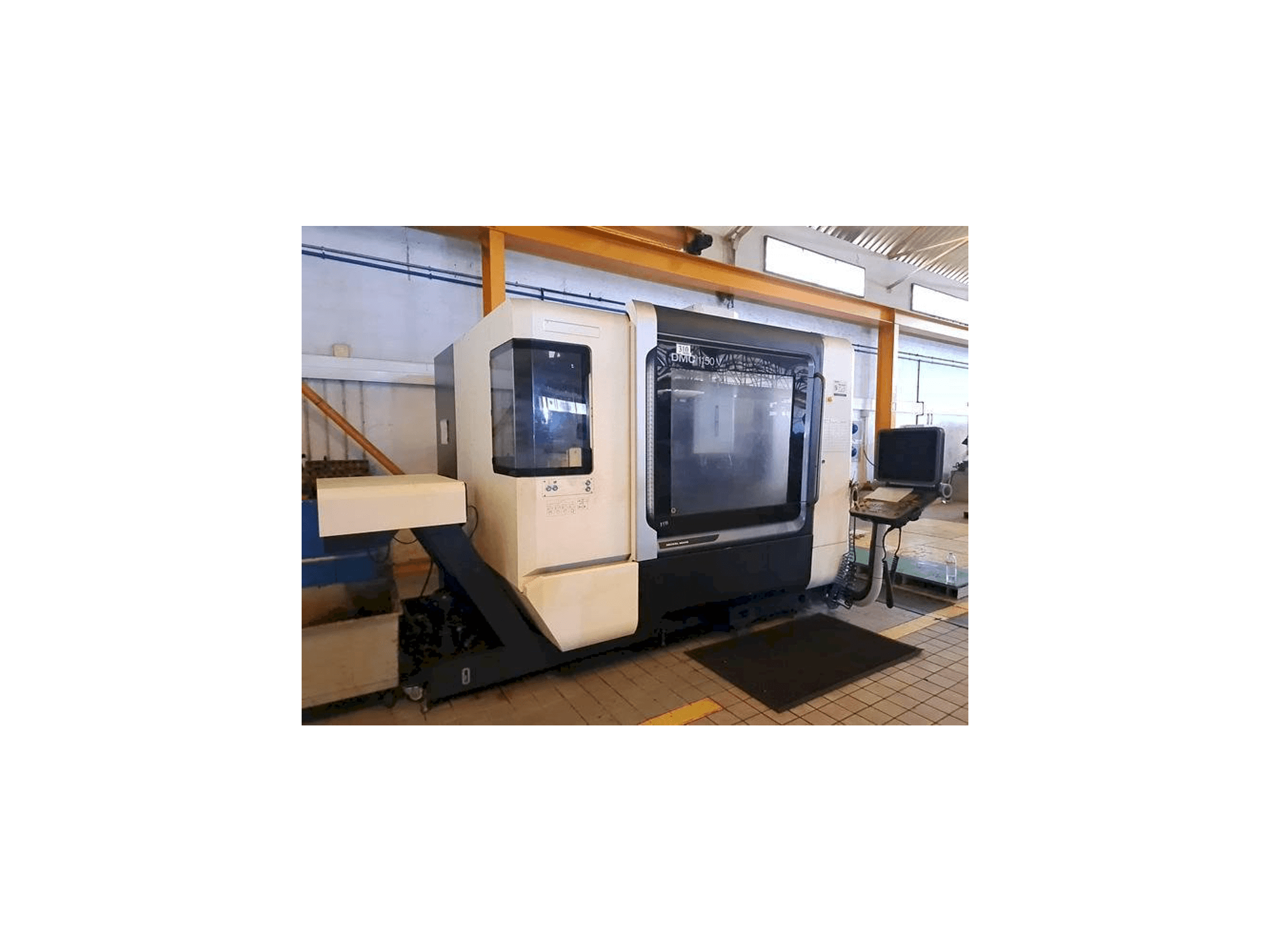

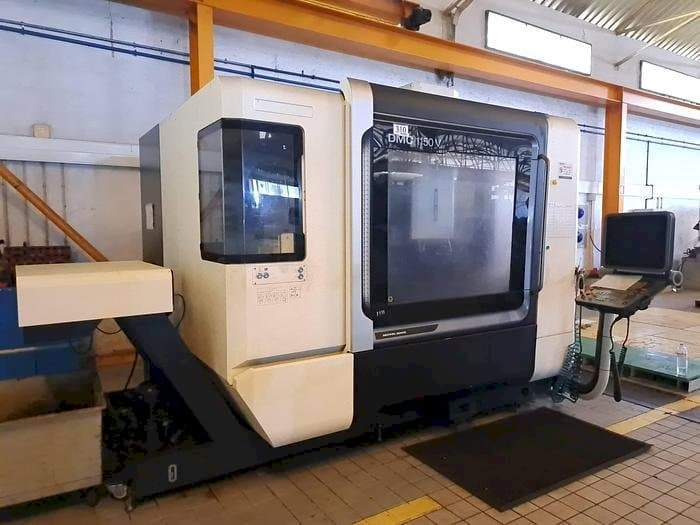

Front view of DMG MORI DMC 1150V  machine

DMG MORI DMC 1150V

DMG MORI - DMC 1150V

2015

Rs. 10,228,650

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG MORI DMC 1150V Vertical Machining center was manufactured in the year 2015 in Germany. It is equipped with a HEIDENHAIN TNC 640 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm and operates with SK40.

Overview

  • brand: DMG MORI
  • year: 2015
  • MODEL: DMC 1150V
  • production hours: 17424
  • application type: Milling
  • Location: Portugal
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HEIDENHAIN
  • GINDUMAC ID: PT-MIL-DMG-2015-00001

Technical Information

General Data

  • Machine weight: 8800 kg

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC 640

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 14.5 kW
  • Tool taper: SK40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1150 MM
  • X-AXIS Rapid traverse: 36 m/min
  • Y-AXIS Movement: 700 mm
  • Y-AXIS Rapid traverse: 36 m/min
  • Z-AXIS Movement: 550 mm
  • Z-AXIS Rapid traverse: 36 m/min

Table

  • Outer length: 1400 mm
  • Outer width: 750 mm
  • Table load: 1500 kg

Tools

  • Slots in storage: 20
  • Max tool diameter: 80 mm
  • Max tool length: 300 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle torque 121 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
