- DMG MORI CTX510 eco V3 Lathe

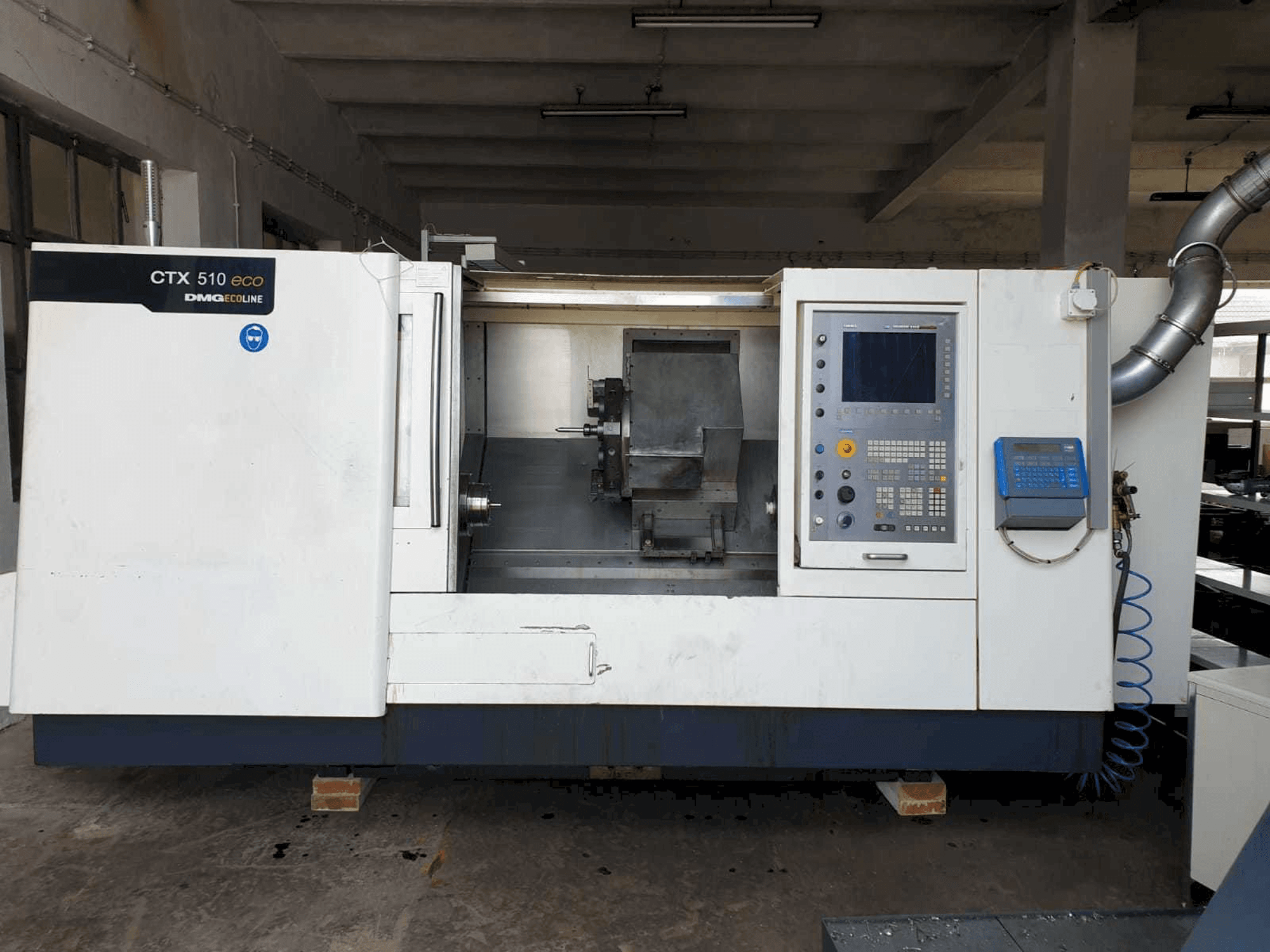

This DMG MORI CTX510 eco V3 Lathe was manufactured in the year 2008 and has 28127 production hours. It is equipped with a Siemens 810D ShopTurn control unit. The machine has a spindle speed of 4000 rpm.
Overview
- brand: DMG MORI
- year: 2008
- MODEL: CTX510 eco V3
- production hours: 28127
- application type: Turning
- Location: Poland
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: SIEMENS
Technical Information - DMG MORI CTX510 eco V3
Control Unit
- Model: 810D ShopTurn
- Brand: SIEMENS
Main drive
- Spindle speed range: 3250 1/MIN
Movement
- X-AXIS Movement: 300 mm
- Z-AXIS Movement: 1050 mm
Media
- Main electronic connection: 400V / 50 Hz
- Power consumption: 40 kVA
Additional Information
- Technical Machine Benefits:
- - Tip distance -rotary tip: 1150 mm
- - Max turning length: 1000 mm
- - Max weight between tips: 350 kg
- - Swing over the bed: 465 mm
- - Spindle bore: 102. 5 mm
- - Hydraulic chuck dim. 250mm
- - Turret head 12 tool slots vdi40, 6 driven slots
- - Rpm-driven tools: 4000 rpm
- - Chip conveyor is included
- Qualitative Machine Benefits:
- - Machine connected, very good condition, ready for tests.
- - Part catcher
- - Tool length probe
- - Programmable hydraulic tailstock
- - Hainbuch collet chuck
- - Oil mist separator
- - Additional coolant tank ikz
- - 1 x angled driven holder vdi40
- - 1 x straight driven holder vdi40
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
