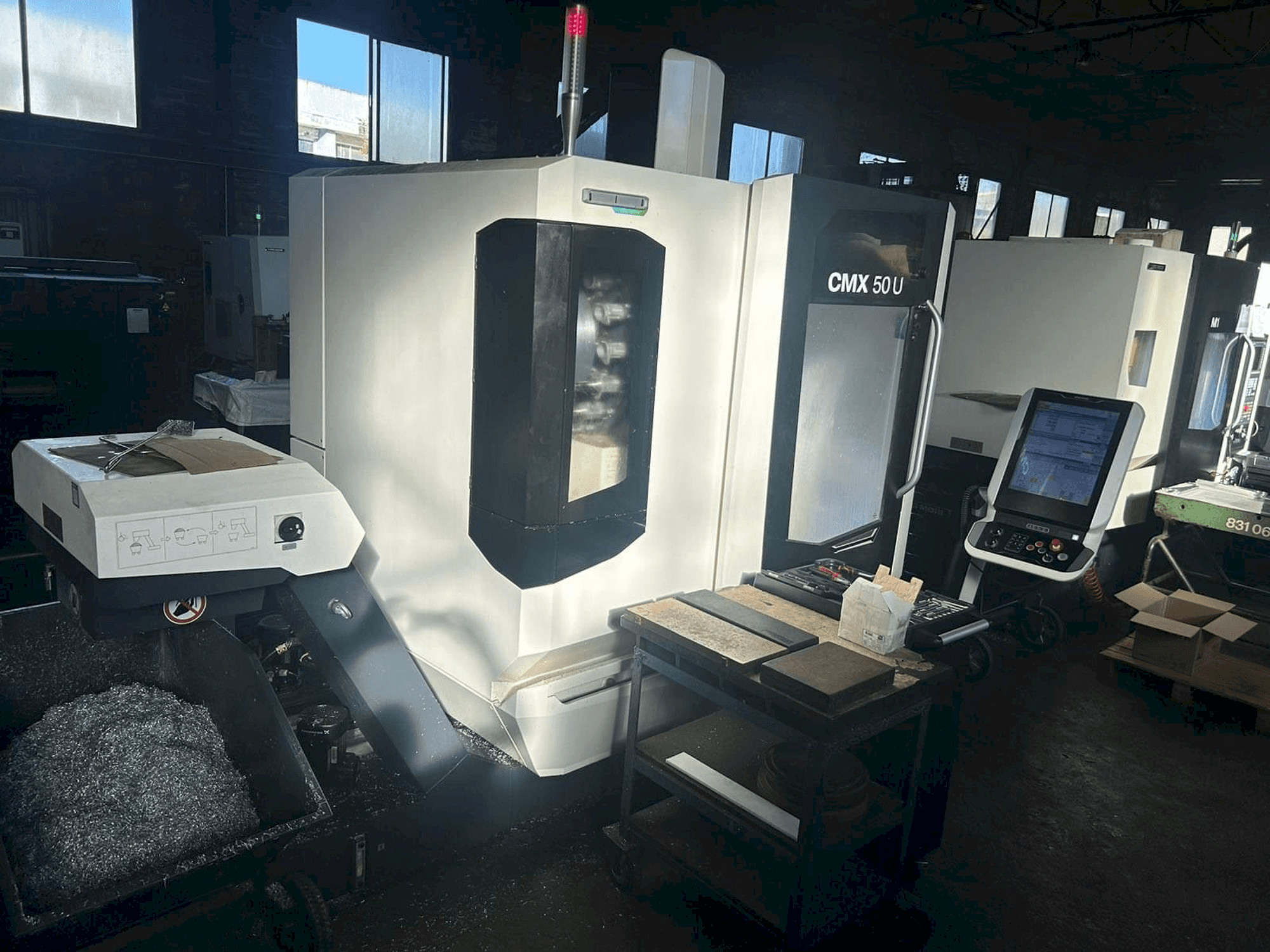

DMG MORI CMX 50 U

Photo Gallery

DMG MORI - CMX 50 UGR-MIL-DMG-2021-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CMX 50 U Universal Machining center

Show in original language

This DMG MORI CMX 50 U Universal Machining center was manufactured in the year 2021 in Poland and has 8115 production hours, of which 5436 are spindle hours. It is equipped with a SIEMENS DMG MORI SLIMline Multi touch control unit and has 3+2 axis. The machine has a spindle speed of 20-12000 rpm.

Overview

brand: DMG MORI
year: 2021
MODEL: CMX 50 U
production hours: 8115
application type: Milling
Location: Greece
machine type: Universal Machining Centre

Technical Information - DMG MORI CMX 50 U

Dimensions

Machine Weight: 4700 kg

Movement

Number of Axes: 3
X-axis Travel: 500 mm
Y-axis Travel: 450 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Tool taper sk40 din 69871
Tool clamping according to din69872
Tool magazine 30 places, chain with pockets and with double gripper
Direct measuring system x, y, z inclusive air purge for measuring system
Coolant air-blast changeover external switchable via m-function
Chip tank
Internal coolant supply 20 bar
Chip conveyor (scraper type) with tank capacity: 250 l
Bed and atc arm flushing via m-function
Coolant spray gun for swarf removal, external electronic handwheel, cabin roof, signal lamp with 4 colours, double cartridge filter for coolant

Technical Machine Benefits

3d control unit technology
Swivel rotary table powered b/c axes
Standard inline spindel, opt. Inlinemaster®
Tool magazine 30 pos
Rigidity, stability of the body
Dmg mori iotconnector included in standard
Table d 630x500
Rotary range b (-5°/+110°) / c (360°)
Rapid feed linear axes 30 m/min
Ac main drive: 13/9 kw (40/100% dc)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
