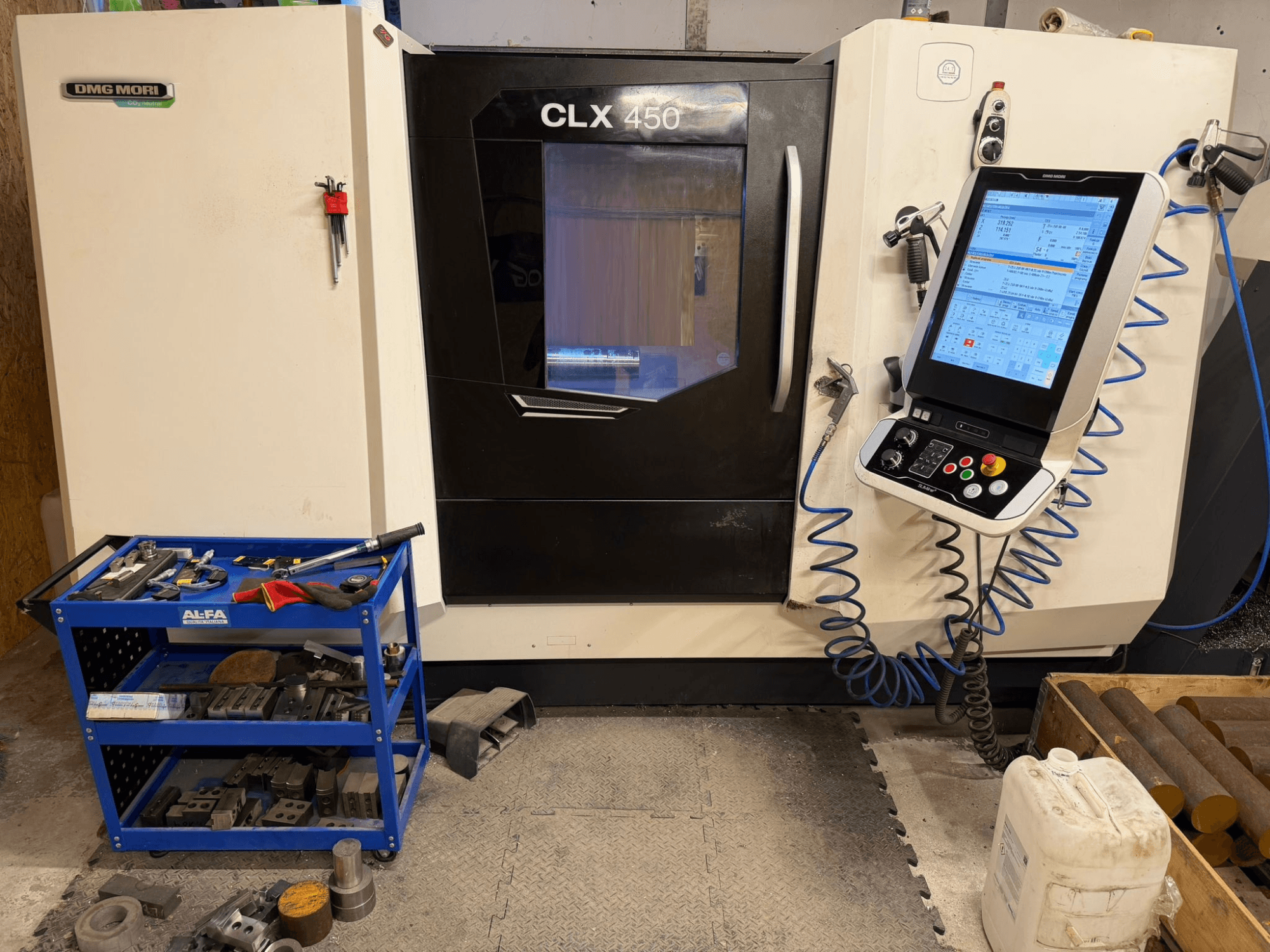

DMG MORI - CLX 450 V3 PL-TUR-DMG-2022-00002

• Version: V3 (no Y-axis); configured for turning + milling (C-axis)

• Working area:

  • Swing over bed: 650 mm

  • Swing over cross slide: 465 mm

  • Max. turning diameter: 400 / 315 mm

  • Rapid traverse X/Z: 30 / 30 m/min

• Axes: X, Z, C; C-axis positioning accuracy: 20 arcsec

• Main spindle:

  • Spindle nose: A2-8

  • Bar capacity: 80 mm

  • Front bearing diameter: 130 mm

  • Chuck diameter options: 210 / 250 / 315 mm

  • Spindle power (40% / 100%): 25.5 / 17 kW

  • Max. torque (40% / 100%): 426 / 283 Nm

• Turret (VDI 40):

  • 12 stations (12 driven)

  • Tool station diameter: 40 mm

  • Driven tool power: 5.44 kW

  • Driven tool torque: 20 Nm

  • Driven tool max speed: 4000 rpm

• Tailstock:

  • Travel: 500 mm

  • Center interface: MK5

  • Max. force: 8 kN

• Guideways / Ballscrews: X/Z 40 × 10 mm

• Accuracy: Positioning accuracy X/Z: 5 / 10 µm

• Capacity / Workholding:

  • Max. bar capacity: 80 mm

  • Hydraulic chuck: Ø 254 mm (installed)

  • Chuck bore: 82 mm

• Coolant & chip handling: Coolant gun 5 bar; Chip tank

• Control: Siemens SLIMline multi-touch (19")

• Dimensions & weight:

  • Weight without chip conveyor: approx. 4950 – 5050 kg

  • Weight with chip conveyor: approx. 5500 kg

• Notes: Full 12 driven tool stations

Additional equipment

• Chip conveyor (right-side discharge)

• Hydraulic tailstock (M-function controlled)

• Direct measuring system (X-axis)

• External electronic handwheel

• DMG MORI IoTconnector

• Marposs tool probe

• Signal tower (4-color)

• Set of static tool holders VDI 40

• Set of driven tools WTO (QuickFlex, ER32)
