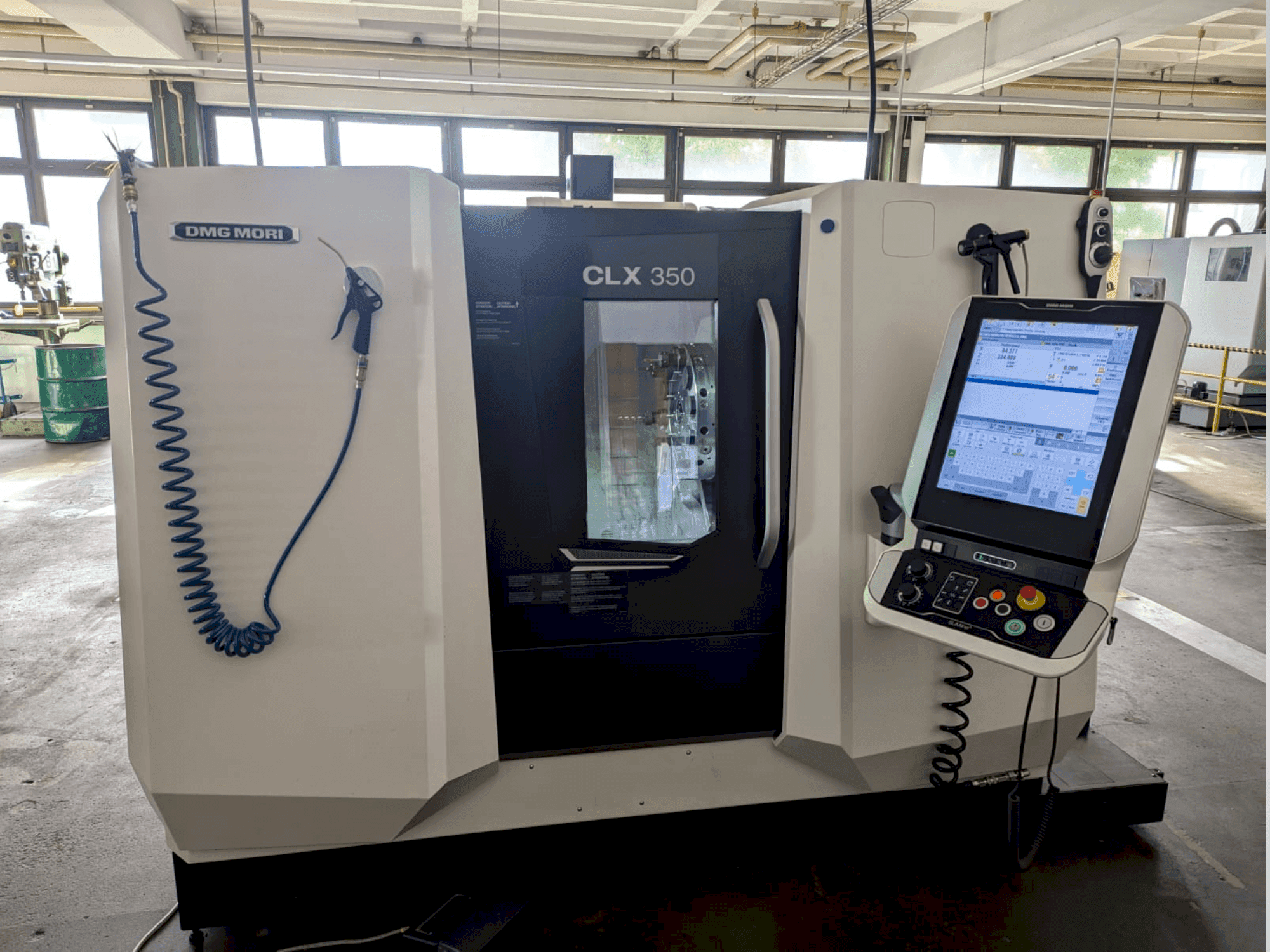

This DMG MORI CLX 350 was manufactured in 2023. A universal turning machine featuring driven tools and a C-axis. It includes a hydraulic 3-jaw chuck D210mm, a 12-slot servo tool turret holder VDI 30 with 12 driven tool stations, and a hollow clamping device with a max. bar capacity of D65mm. A great opportunity to buy this DMG MORI CLX 350 universal turning machine. Contact us for further details regarding this machine.
Overview
- brand: DMG MORI
- year: 2023
- MODEL: CLX 350
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - DMG MORI CLX 350
Control Unit
- Brand: SIEMENS
- Model: DMG MORI SLIMline multi-touch
Main drive
- Spindle speed range: 5000 1/MIN
Turret
- Number of tool slots: 12
Tools
- Type of tool holder: WTO tool holder set VDI 30
Additional equipment
- - Direct path measuring system X axis
- - Chip tray
- - Hollow clamping device
- - Hydraulically movable tailstock via M-function
- - External electronic handwheel
- - DMG Mori IoTconnector
- - 190 Spindle hours
Additional Information
- Technical Machine Benefits:
- - Main spindle: a2-6 with ac motor
- - Hydraulic 3-jaw chuck diameter: 210 mm
- - Max. Bar capacity: 65 mm
- - Driven tools and c-axis for enhanced machining capabilities
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
