➤ Used DMG MORI CLX 350 V4 For Sale | gindumac.com

Show in original language

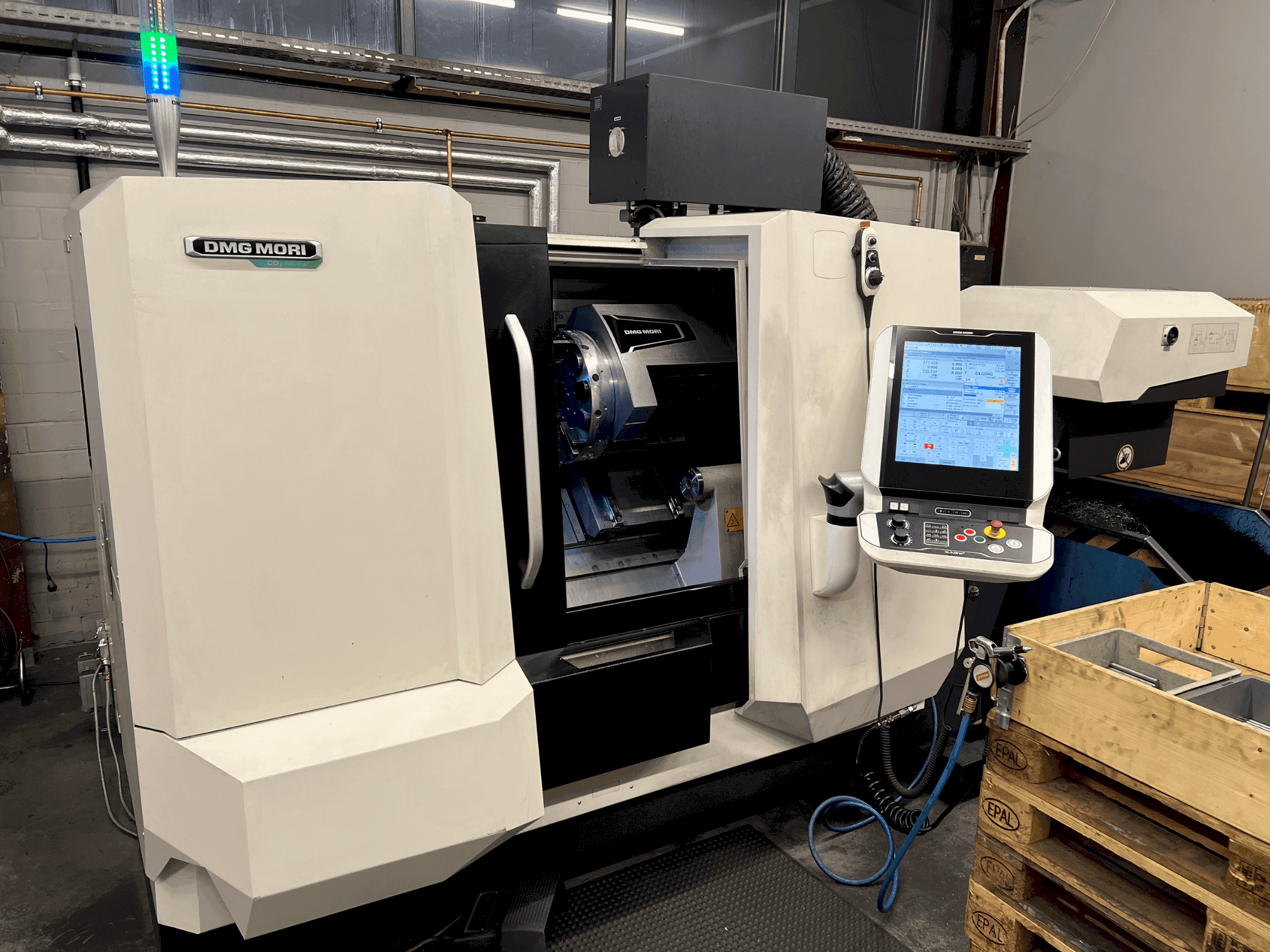

This DMG MORI CLX 350 V4 horizontal turning machine was manufactured in 2022. It features a 12-station servo tool turret, a hydraulic 3-jaw chuck, and a bar capacity up to D65 mm. The machine includes a coolant system with a 5-20 bar range and a coolant spray gun. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 350 V4 machine we have for sale. Contact us for more information about this machine.

Overview

brand: DMG MORI
year: 2022
MODEL: CLX 350 V4
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - DMG MORI CLX 350 V4

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 840D

Movement

Number of Axes: 2
Y-axis Travel: 40 mm

Technical Specification

Spindle Speed: 5000 RPM

Additional Information

Additional equipment

External electronic handwheel
Chip tray
Dividing belt conveyor
Alternating speed technology cycle
Technology cycle Y-Axis parting
Easy Tool Monitoring technology cycle
Messenger V4

Machine Benefits

Qualitative Machine Benefits

Mechanical oil mist separator type afs
600 m³/h with contamination indicator

Technical Machine Benefits

Bar package & interface: up to d65 x 200 mm long
Hollow clamping device, max. Bar capacity d65 mm
Hydraulic 3-jaw chuck schunk rota thw plus 215-66
Foot pedal for tailstock
12-station servo tool turret
12 driven tool stations
Holder: vdi 30
Hydraulically movable tailstock via m function
5-20 bar / coolant system
Coolant spray gun 5 bar

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
