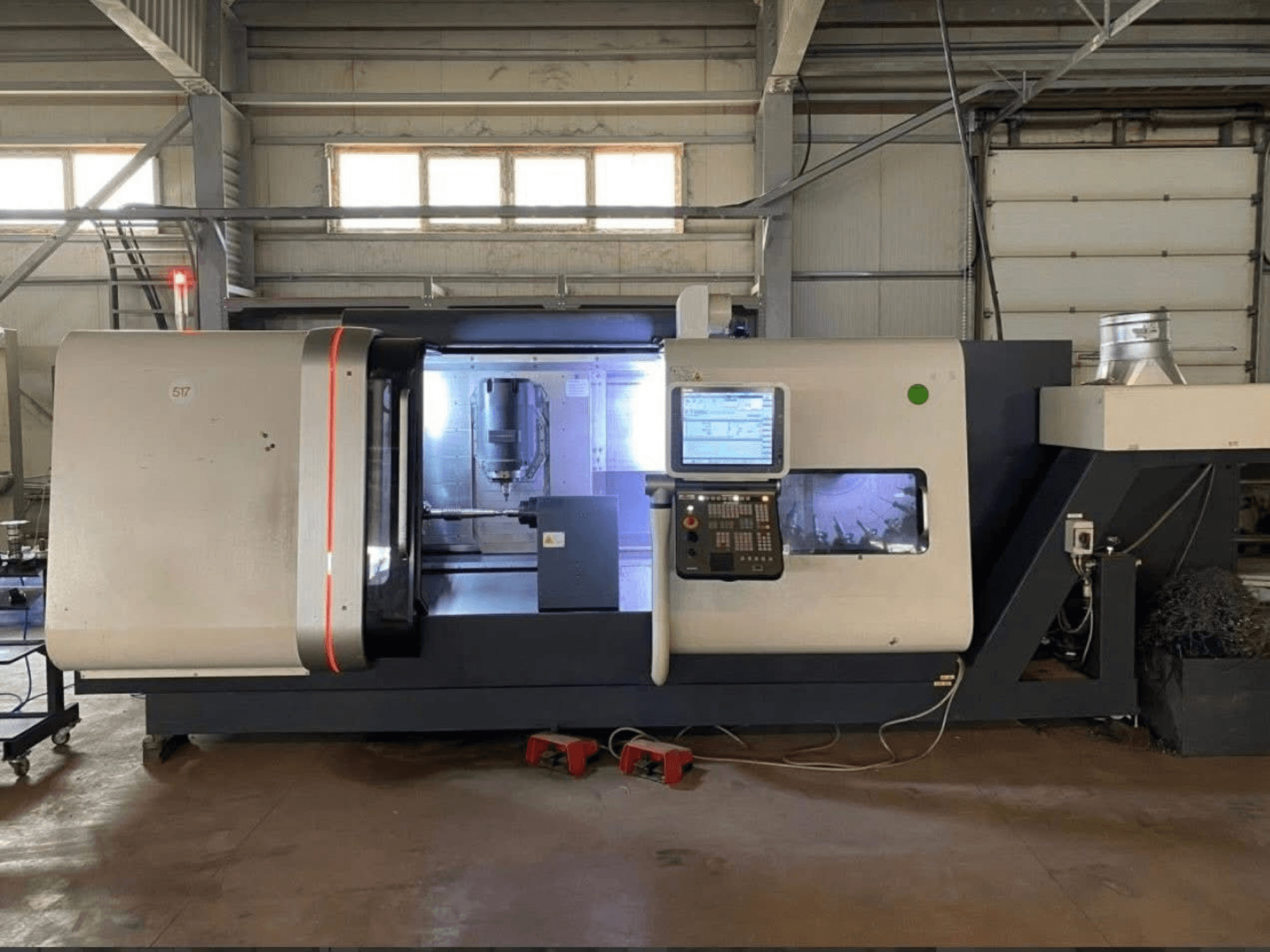

DMG MORI Beta 1250 TC turn-mill centre, front view with control panel, illuminated workspace, and cutting tools visible.
DMG MORI Beta 1250 TC turn-mill centre, front view with control panel, illuminated workspace, and cutting tools visible.

DMG MORI - Beta 1250 TCMD-TUR-DMG-2014-00002

Rs. 16,331,955
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis DMG MORI Beta 1250 TC was manufactured in 2014. It features a maximum workpiece length of 1,200 mm and a bar capacity diameter of 102 mm. The machine includes a swivel range of the B-axis of ± 110° for enhanced flexibility and a tool magazine that accommodates up to 24 tools. If you are looking to get high-quality turning and milling capabilities, consider the DMG MORI Beta 1250 TC turn-mill centre we have for sale. Contact us for further details.

Overview

  • brand: DMG MORI
  • year: 2014
  • MODEL: Beta 1250 TC
  • application type: Turning
  • Location: Moldova
  • machine type: Turn-Mill Centre
  • control unit brand: SIEMENS

Technical Information - DMG MORI Beta 1250 TC

Control Unit

  • Control Brand: SIEMENS

Additional Information

  • Max. workpiece length: 1200 mm

  • Max. bar capacity diameter: 102 mm

  • Y-stroke for external machining: ± 120 mm

  • Swivel range of B-axis: ± 110° for maximum flexibility

  • Tool magazine as a disk or chain magazine for shorter set-up and idle times

  • Disk magazine for 24 tools in standard

  • Chain magazine with 48 or 80 stations as option

  • Tools up to 400 mm length and Ø 120 mm

  • 6-sided complete machining by main spindle up to 700 Nm and optional counter spindle

  • Integrated spindle drives with up to 700 Nm for maximum cutting performance

  • Counter spindles up to 360 Nm and 65 mm bar capacity as an option

  • Precision in μm range

  • Positioning accuracy up to <6 μm and repeatability up to <2 μm

  • Linear scales in the linear axes of the traveling column (X1 / Y1 / Z1)

  • Liquid-cooled spindles and cooling of the X- / Y- / Z-motors

  • Optional with complete package for bar machining with automatic workpiece pickup device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
