DMG DMC63H

Photo Gallery

DMG - DMC63HSI-MIL-DMG-2004-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

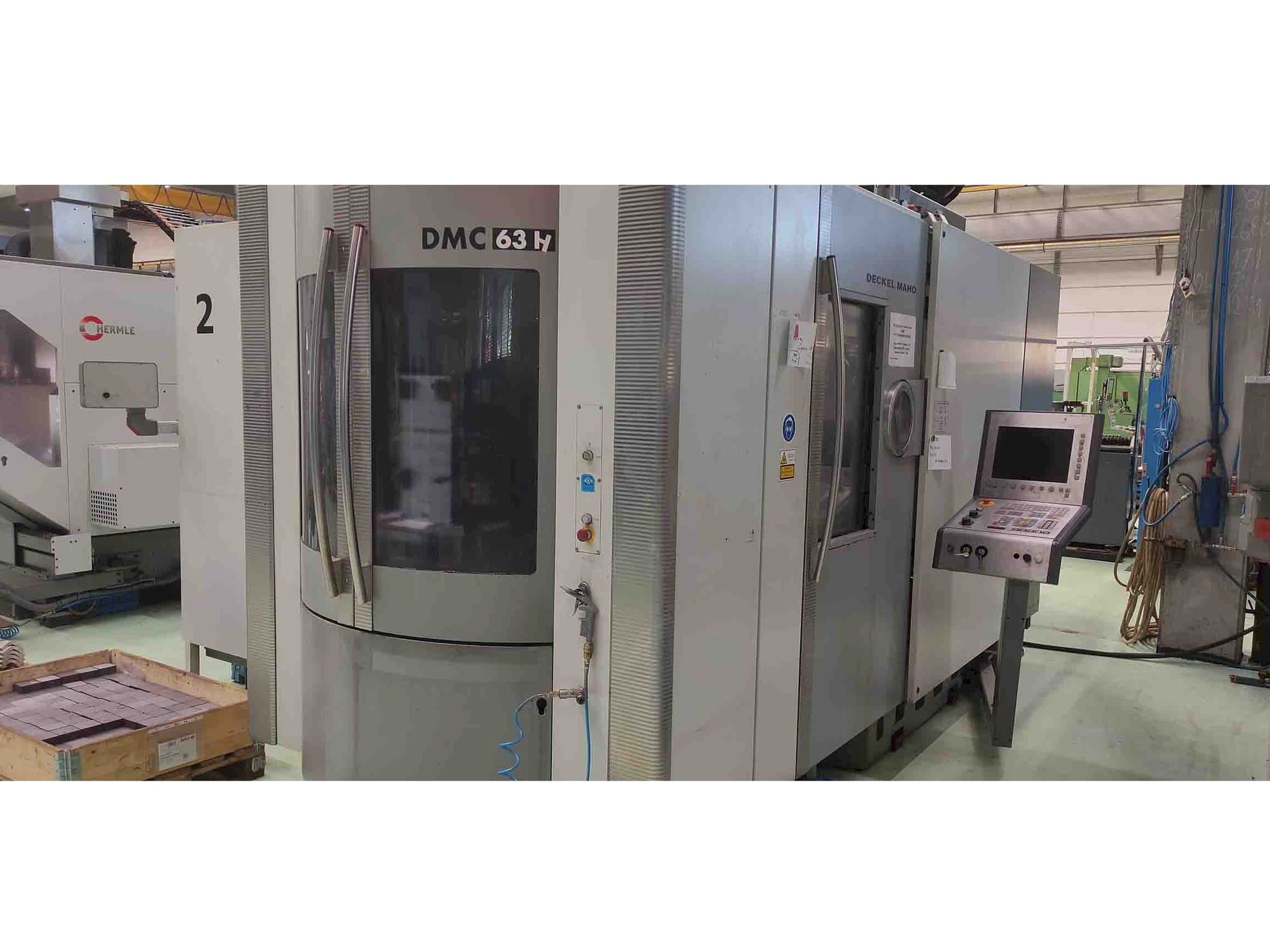

DMG DMC63H Horizontal Machining center

Show in original language

This DMG DMC63H Horizontal Machining center was manufactured in the year 2004. It is equipped with a SINUMERIK 840D powerline control unit and has 4 axis. The machine has a spindle speed of 20000 rpm and has 2pcs. pallets, 1x operation manual, 1x control documentation and 1x electrical documentation as additional equipment.

Overview

brand: DMG
year: 2004
MODEL: DMC63H
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - DMG DMC63H

General Data

Machine weight: 15300 KG

Control Unit

Model: 840D powerline

Main drive

Spindle speed range: 20000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 630 mm
Z-AXIS Movement: 560 mm

Tools

Type of tool holder: HSK 63

Media

Main electronic connection: 400 V
Chip conveyor: Yes

Additional equipment

- 2pcs. pallets additionally
- 1x operation manual
- 1x control documentation
- 1x electrical documentation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2-fold pallet changer
- - Pallet size 400x500mm ( special pallet with t-slots )
- - Feeds x,y,z.... 80m/min
- - Ball screw x,y,z
- - Drill breakage control ( via laser)
- - Chain magazine for 90 tools
- - Additional control panel at the loading station of the tool magazine
- - Internal coolant supply form a-d with vacuum rotaion filter vrf250/1250
- - Pressure increase at the high pressure pump to 60bar adjustable via pressure steps
- - Rotoclear viewing window
Qualitative Machine Benefits:
- - Spray gun at pallet changer
- - Oil and emulsion mist separator
- - Operating mode 4
- - Signal lamp
- - The machine was used exclusively for machining of aluminum parts. 2-3shift operation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
