TAJMAC-ZPS - H40 TRENDCZ-MIL-TAJ-2004-00001

Rs. 2,264,873
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

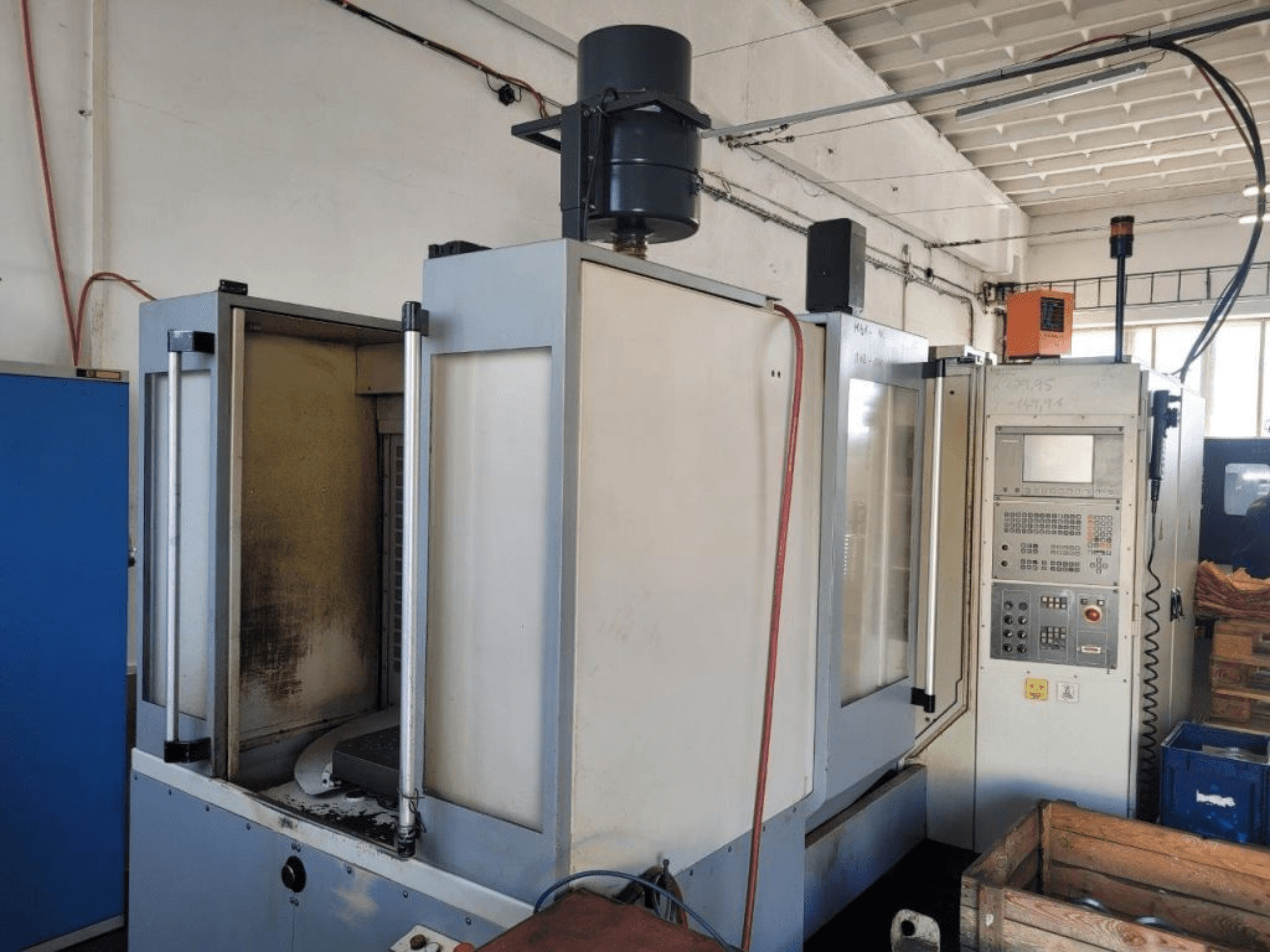

This 4-axis TAJMAC-ZPS H40 TREND was manufactured in 2004. It features a rotary table and two-pallet automatic changer, enhancing productivity and flexibility. The machine accommodates a maximum workpiece size of dia 600 x height 600 mm and supports up to 300 kg. Ideal for complex machining tasks, it includes a high-pressure cooling system and a laser tool probe. Contact us for more information about this machine.

Overview

  • brand: TAJMAC-ZPS
  • year: 2004
  • MODEL: H40 TREND
  • application type: Milling
  • Location: Czech Republic
  • machine type: Horizontal Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - TAJMAC-ZPS H40 TREND

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Dimensions

  • Machine Height: 2242 mm
  • Machine Length: 4177 mm
  • Machine Weight: 8600 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 560 mm
  • Y-axis Travel: 510 mm
  • Z-axis Travel: 560 mm

Additional Information

  • Table length: 400 mm

  • Table width: 500 mm

  • Tool magazine: 45 positions

  • Max. workpiece size: Ø600 x 600 mm (H)

  • Max. workpiece weight: 300 kg

  • Machine depth: 2170 mm

Additional equipment

  • 4th axis rotary table (4-axis machining)

  • APC: two-pallet automatic changer, pallet size 400 x 400 mm

  • LOSMA high-pressure coolant system

  • Laser tool probe

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
