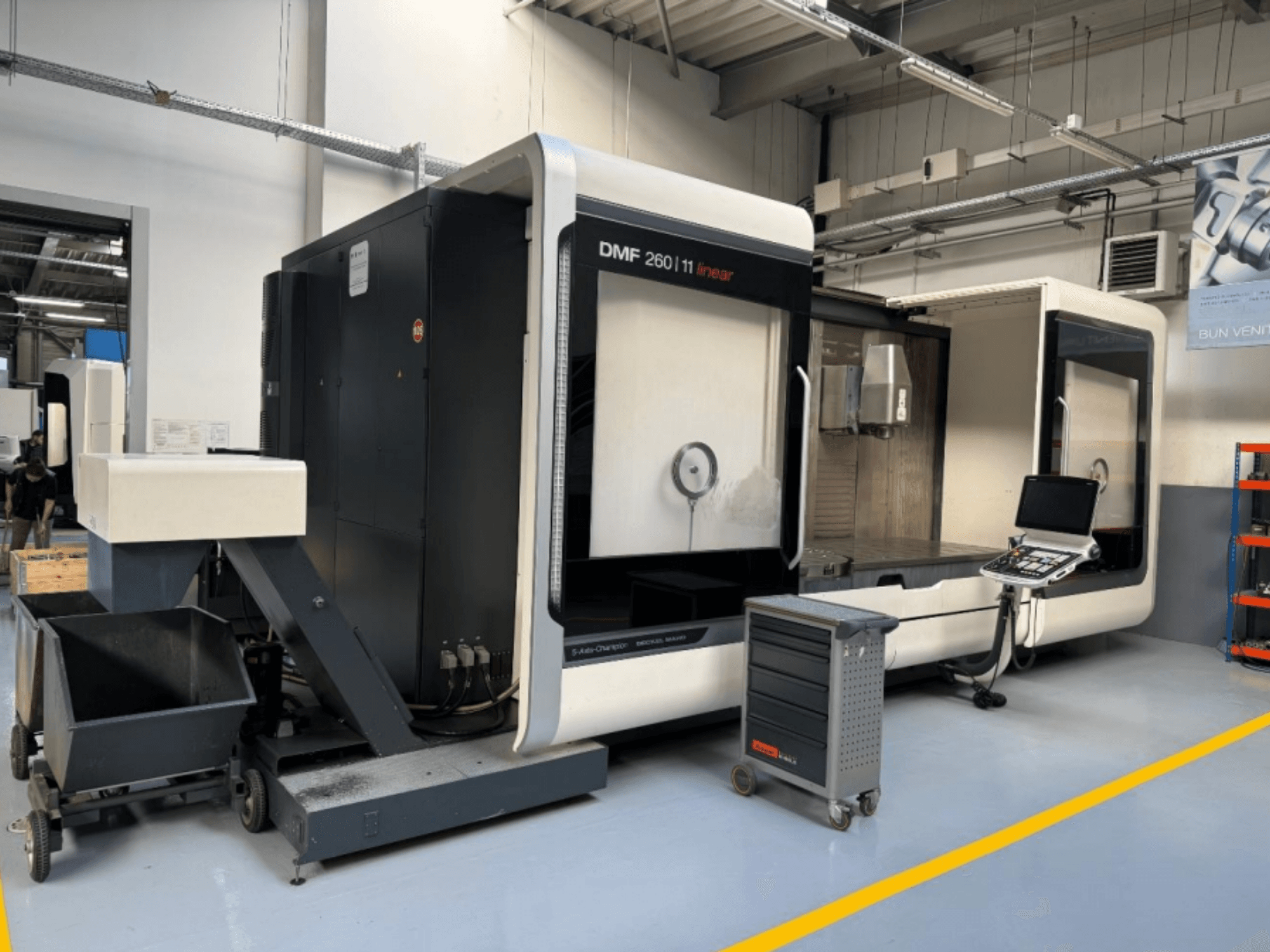

This 5-axis DMG DECKEL MAHO DMF 260-11 was manufactured in 2017. A universal machining centre featuring a travelling column, X-axis linear drive at 80 m/min, and a motor spindle speed up to 15,000 min-1. It includes a swivel head, a 30-tool magazine, and a rigid table measuring 3,200 x 1,100 mm. Consider the opportunity to buy this DMG DECKEL MAHO DMF 260-11 universal machining centre. Contact us for more information about this machine.
Overview
- brand: DMG DECKEL MAHO
- year: 2017
- MODEL: DMF 260-11
- application type: Milling
- Location: Romania
- machine type: Universal Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG DECKEL MAHO DMF 260-11
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D sl
Movement
- Number of Axes: 5
- X-axis Travel: 2600 mm
- Y-axis Travel: 1100 mm
- Z-axis Travel: 900 mm
Technical Specification
- Spindle Power: 46 kW
- Spindle Speed: 15000 RPM
- Taper Size: SK 40
Additional Information
Swivel head (B-axis)
Rigid table: 3,200 x 1,100 mm (125.98 in x 43.30 in)
Rapid traverse (standard): 40 m/min (131.2 ft/min)
Acceleration (standard): 4 m/s² (13.12 ft/s²)
Tool clamping: DIN 69872
Tool magazine: 30 tools (chain with double gripper)
Chip-to-chip time: 9 s (SK40)
Direct measuring systems
Full-protective cabin and coolant tank
S-A3070 Dynamic package for DMF 260 linear (Y 1,100 mm):
Linear drive X-axis with 80 m/min (262.48 ft/min)
Rapid traverse XYZ: 80/60/60 m/min (262.48/196.86/196.86 ft/min)
Acceleration XYZ: 5/6/6 m/s² (16.4/19.68/19.68 ft/s²)
Active chiller for main spindle and linear motor
Tool magazine: 30 tools (chain with double gripper)
Chip-to-chip time: 7.5 s (SK40)
Motor spindle speedMASTER SK40:
Torque: 200 Nm / 130 Nm (148 ft-lbs / 96 ft-lbs)
40% / 100% duty cycle
Additional equipment
Chip conveyor (scraper type)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
