DECKEL MAHO DMU 200P

Photo Gallery

DECKEL MAHO - DMU 200PCZ-MIL-DEC-2002-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

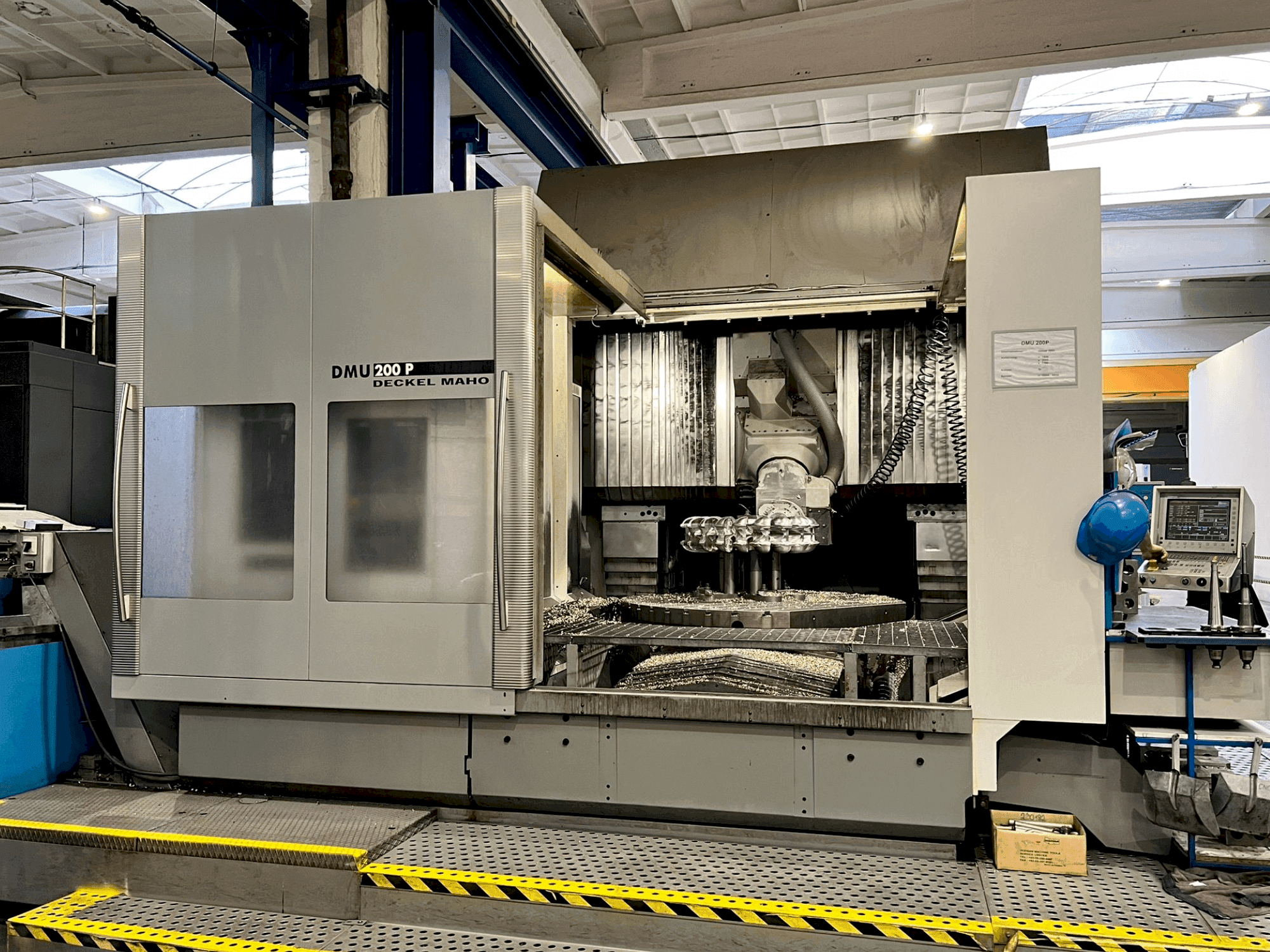

DECKEL MAHO DMU 200P Vertical Machining Centre

Show in original language

This DECKEL MAHO DMU 200P Vertical Machining Centre was manufactured in the year 2000. It operates on a 5-axis scope with X-axis travel: 1800mm, Y-axis travel 2000mm, Z-Axis travel: 2000mm and C-Axis 360 x 0.001 degrees. Spindle speed is at 8000 rpm with SK 50 tool holder. The machine comes with a tool changer with 60 places, a table size of 1700 x 1400 mm and a max. table load of 5000 kg. It is controlled by a HEIDENHAIN control unit.

Overview

brand: DECKEL MAHO
year: 2002
MODEL: DMU 200P
production hours: 76912
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 200P

Control Unit

Control Brand: HEIDENHAIN

Dimensions

Table Length: 1700 mm
Table Load: 5000 kg
Table Width: 1400 mm

Movement

X-axis Travel: 1800 mm
Y-axis Travel: 2000 mm
Z-axis Travel: 1100 mm

Technical Specification

Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Table size: 1700 mm x 1400 mm
Maximum table load: 5000 kg
X-axis travels: 1800 mm // y-axis travels: 2000 mm // z-axis: 1100 mm
C-axis 360 x 0. 001 degrees
Spindle speed: 8,000 rpm
Tool holder: sk 50
Tool changer: 60 places
Control system: heidenhain

Extra Information

Power on hours: 108991 // Cutting hours: 76912

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
