DECKEL MAHO - DMC 80 HCZ-MIL-DEC-2001-00003
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DECKEL MAHO DMC 80 H For Sale | gindumac.com

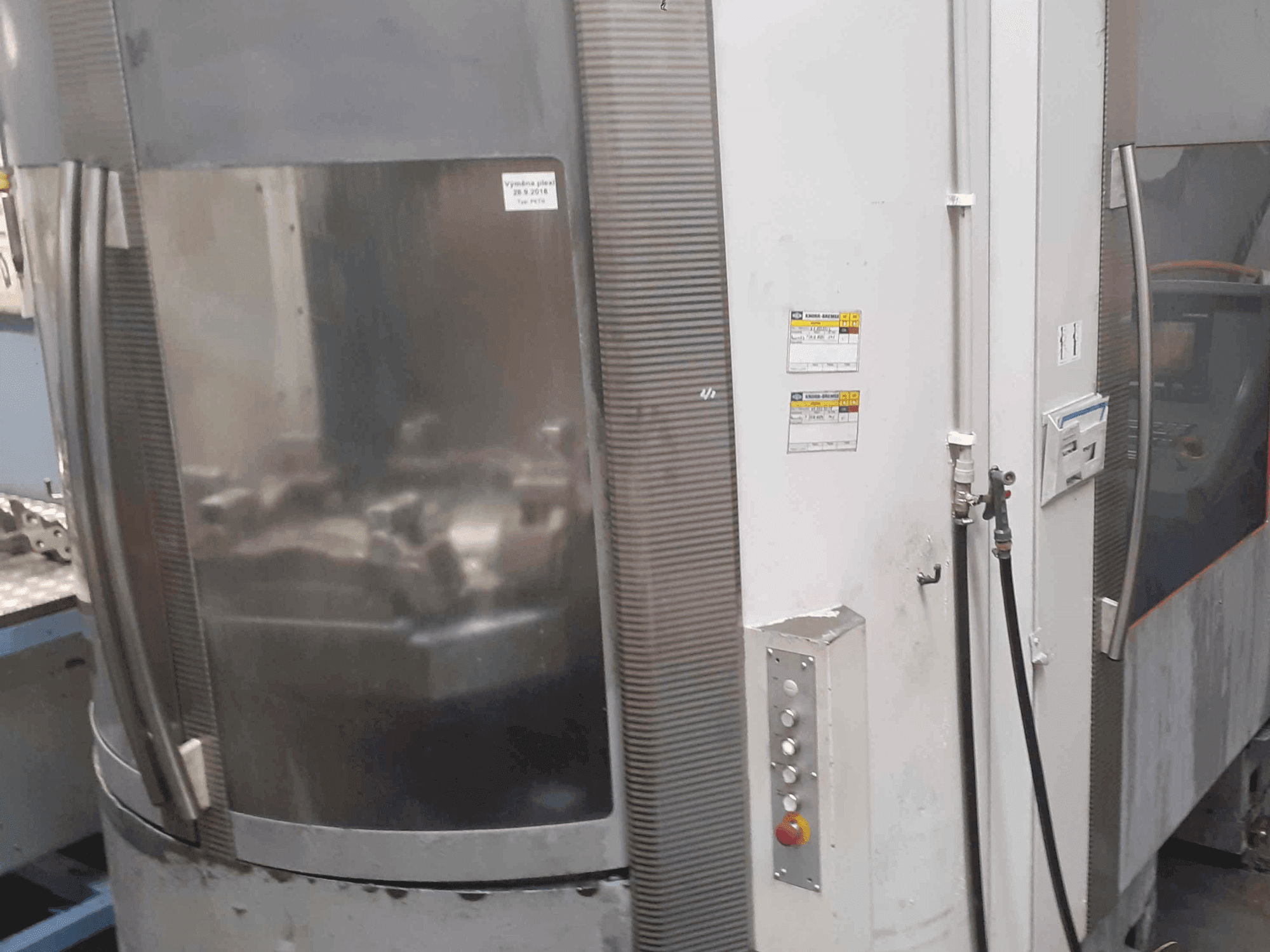

This 4-axis DECKEL MAHO DMC 80 H horizontal machining center was manufactured in 2001. It features a SIEMENS Sinumerik 840D CNC control, a spindle speed of up to 6000 RPM, and a 40-position tool changer. Additional highlights include dual 630 x 500 mm pallets, SK50 spindle taper, and a chip conveyor. Consider the opportunity to buy this DECKEL MAHO DMC 80 H horizontal machining center. Contact us for more information about this machine.
Overview
- brand: DECKEL MAHO
- year: 2001
- MODEL: DMC 80 H
- production hours: 88546
- application type: Milling
- Location: Czech Republic
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - DECKEL MAHO DMC 80 H
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 4
- X-axis Travel: 800 mm
- Y-axis Travel: 710 mm
- Z-axis Travel: 710 mm
Additional Information
Table
Two pallets: 630 x 500 mm
Pallet clamping method: T-slot
Hydraulic clamping through the center of the table: 220 bar
Tool changer: 40 positions
Laser tool break check
Preparation for multi-spindle heads
High-pressure pump for internal cooling
2/2022 New linear guides
axial ball screws
bearings and pulleys on the X, Y axes
1/2024 New clamping cones
1/2025 New B-axis motor installed
Additional Equipment
Hydraulic clamping through the center of the table
Pallets – hydraulic clamping option
Chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
