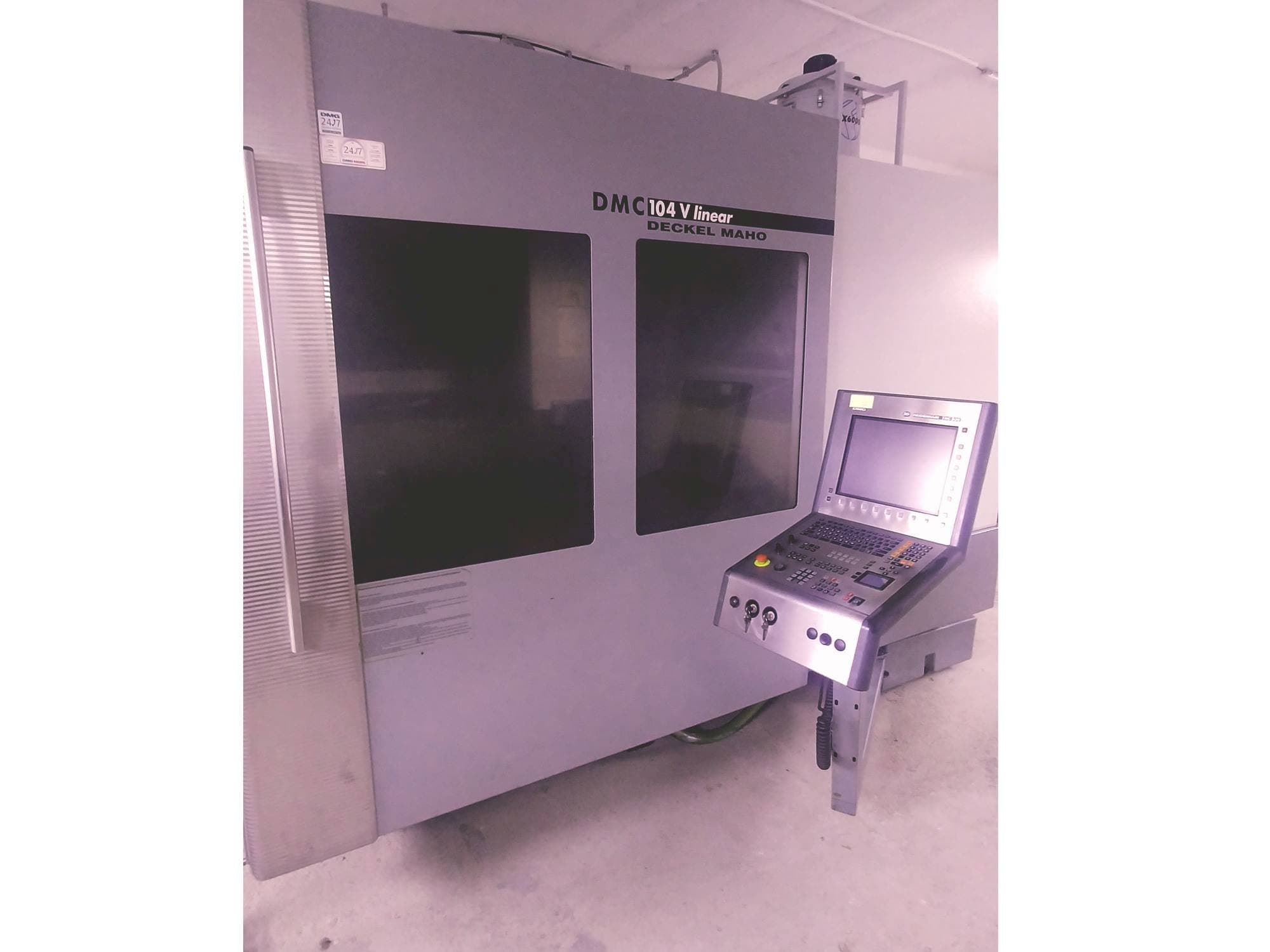

Front view of DECKEL MAHO Dmc 104 V Linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMC 104 V Linear

Photo Gallery

DECKEL MAHO - DMC 104 V LinearSK-MIL-DEC-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Deckel-Maho Dmc 104 V Linear Vertical Machining center

Show in original language

This Deckel-Maho DMC 104 V Linear Vertical Machining center was made in 2008 in Germany and has 80176 production hours, of which 35347 are spindle hours. It is equipped with a Heidenhain iTNC530 control unit and has 3 axis. The machine has a spindle speed of 18000 rpm, is in very good condition, and is well maintained.

Overview

brand: DECKEL MAHO
year: 2008
MODEL: DMC 104 V Linear
production hours: 80176
application type: Milling
Location: Slovakia
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 104 V Linear

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC530

Dimensions

Machine Depth: 2450 mm
Machine Height: 2800 mm
Machine Weight: 8900 kg
Table Length: 1250 mm
Table Width: 600 mm

Movement

Number of Axes: 3
X-axis Travel: 1040 mm
Y-axis Travel: 600 mm
Z-axis Travel: 500 mm

Technical Specification

Number of Tools: 30
Spindle Speed: 18000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition!
Measuring 4/2022: x/y repeat positioning 0,02/0,01 mm
Spindle motor power 22/16 kw (40/100% ed)
Spindle backlash 150mm 0,01mm
11/2017 - kessler spindle refurbished
11/2020 - z axis drive refurbished

Technical Machine Benefits

Heidenhain ts 640 infra probe
Spindle thermal compensation
Exhaust collector
Electrics air conditioning

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
