CHIRON - FZ 12 KWDE-MIL-CHI-2012-00002

Name: CHIRON FZ 12 KW
Brand: CHIRON
SKU: DE-MIL-CHI-2012-00002
Price: 19469350 INR
Availability: InStock

Rs. 19,469,350

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ 12 KW system For Sale | gindumac.com

Show in original language

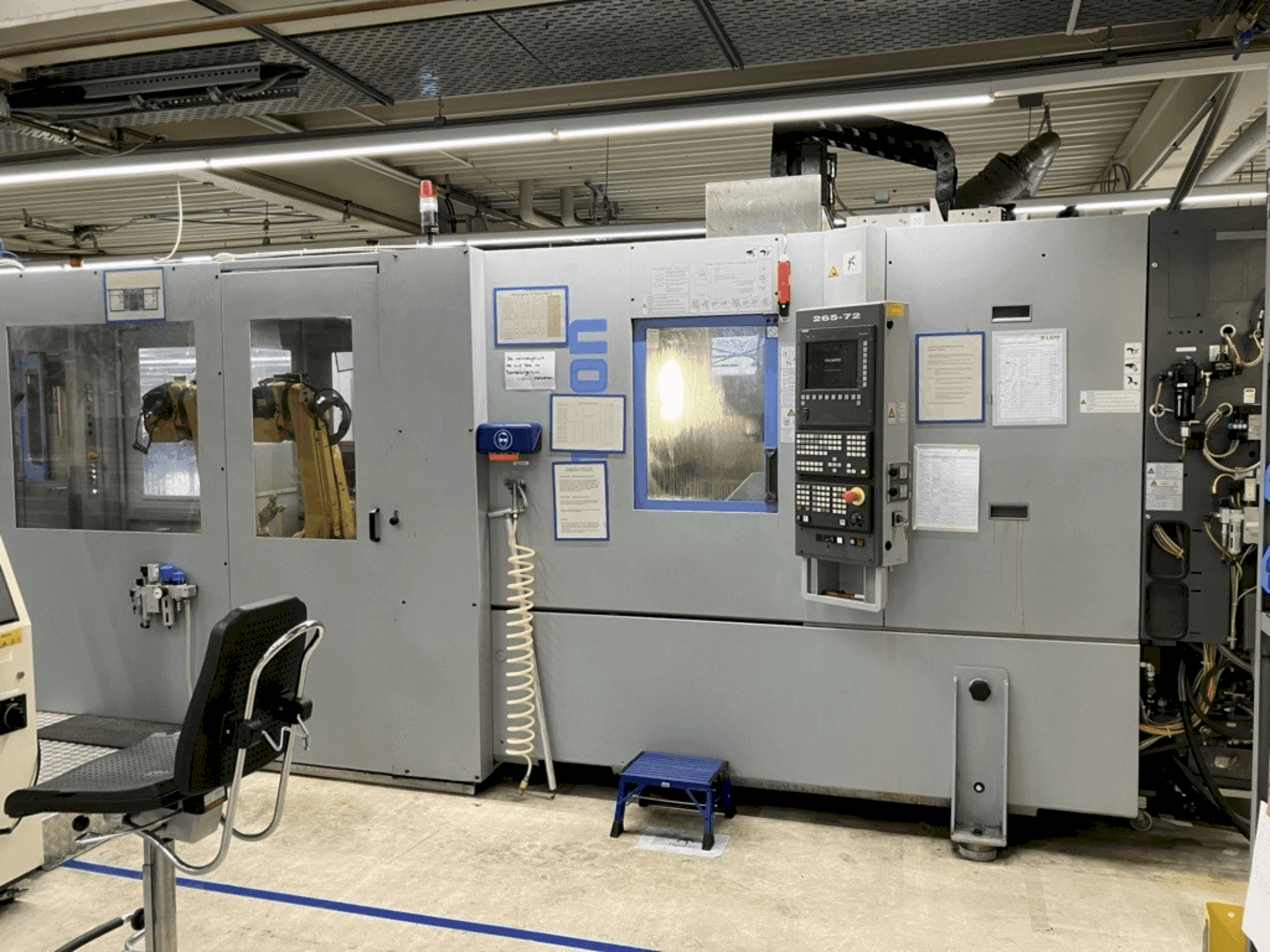

The system consists of: 2 x CHIRON FZ 12 KW (2012) + 2 x Fanuc LR Mate 200iC (2011) + 2 x Fanuc M - 20iA (2011) + Waschstraße. It features a high-speed spindle with a maximum speed of 12,000 rpm and a rapid traverse speed of up to 60 m/min on the Z-axis. Each machine includes a 24-slot automatic tool changer and can handle a table load of up to 500 kg. Ideal for precision machining tasks. Contact us for more information about this machine.

Overview

brand: CHIRON
year: 2012
MODEL: FZ 12 KW
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - CHIRON FZ 12 KW

Main drive

Tool taper: HSK-A 50
Spindle speed range: 12000 1/MIN
Number of axis: 3
Max payload: Up to 5 kg

Movement

X-AXIS Movement: 550 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 320 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 360 mm
Z-AXIS Rapid traverse: 60 m/min

Table

Table load: 500 kg

Tools

Max weight: 5 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Controlled axes: 6 axes
- - Reach: 704 mm
- - Acceleration/deceleration: 0 to 12000 min-1 in 0. 6 seconds
- - Clamping surface: 820 x 440 mm²
- - Drilling capacity in st 60: Ø 16 mm
- - Tapping: m 16
- - Milling capacity in st 60: 80 cm³/min
- - Acceleration: x & y axis 0. 7 g, z axis 1. 0 g

Extra information

- Movement Axis Movement Range and Speed: J1: 340°/360° (option) at 350°/s J2: 200° at 350°/s J3: 388° at 400°/s J4: 380° at 450°/s J5: 240° at 450°/s J6: 720° at 720°/s Allowable Load Moment: J4 & J5: 11.9 Nm J6: 6.7 Nm Repeatability: +/- 0.02 mm Maximum Speed J1: 195°/s J2: 175°/s J3: 180°/s J4 & J5: 400°/s J6: 600°/s Allowable Load Moment J4 & J5: 7.7 Nm J6: 9.8 Nm Tools Automatic Tool Changer: Tool Pockets: 24 Tool Change Time: approx. 0.9 s Chip-to-Chip Time: approx. 2.4 s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
