➤ Used CHIRON FZ 15FX For Sale | gindumac.com

Show in original language

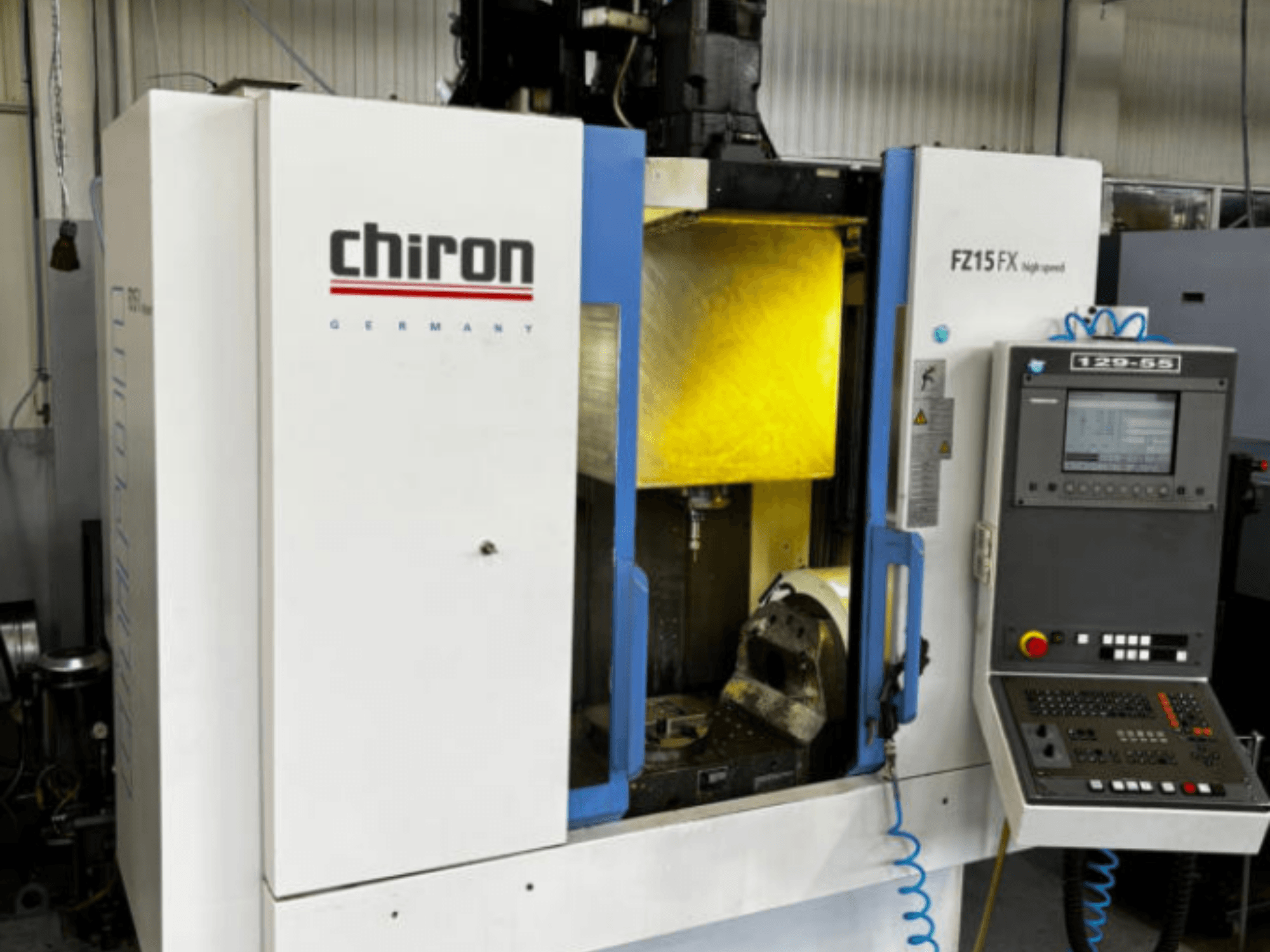

This 5-axis CHIRON FZ 15FX was manufactured in 2002. It features a spindle speed of 12,000 rpm and a 48-station tool magazine for efficient operation. The machine is equipped with a Peiseler rotary table and an internal through-spindle cooling system, ensuring optimal performance. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 15FX vertical machining centre we have for sale. Contact us for further details.

Overview

brand: CHIRON
year: 2002
MODEL: FZ 15FX
production hours: 76130
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
Available from: 03/12/2026
control unit brand: HEIDENHAIN

Technical Information - CHIRON FZ 15FX

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 426

Dimensions

Machine Weight: 5700 kg

Movement

Number of Axes: 5
X-axis Travel: 550 mm
Y-axis Travel: 400 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Speed: 12000 RPM
Through-spindle Coolant: Yes
Tool Stations: 48

Additional Information

- Kinematics: 5-axis (3+2 axes configuration)

- A axis range is between A -100 -> +90

- Table System: Peiseler rotary table equipped with LANG clamping system

- Cooling System: Internal through-spindle cooling system

- Chip Management: Chip conveyor

- Workpiece Measuring: Renishaw probe

- Manual Operation: Operator's handwheel

- Working Voltage: 400 V

- Control Voltage: 230/24 V

- Frequency: 50/60 Hz

- Current Type: 3/N/PE ~

- Rated Current: 67 A

- Rating/Power: 47 kVA

- Fuse Protection: 80 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
