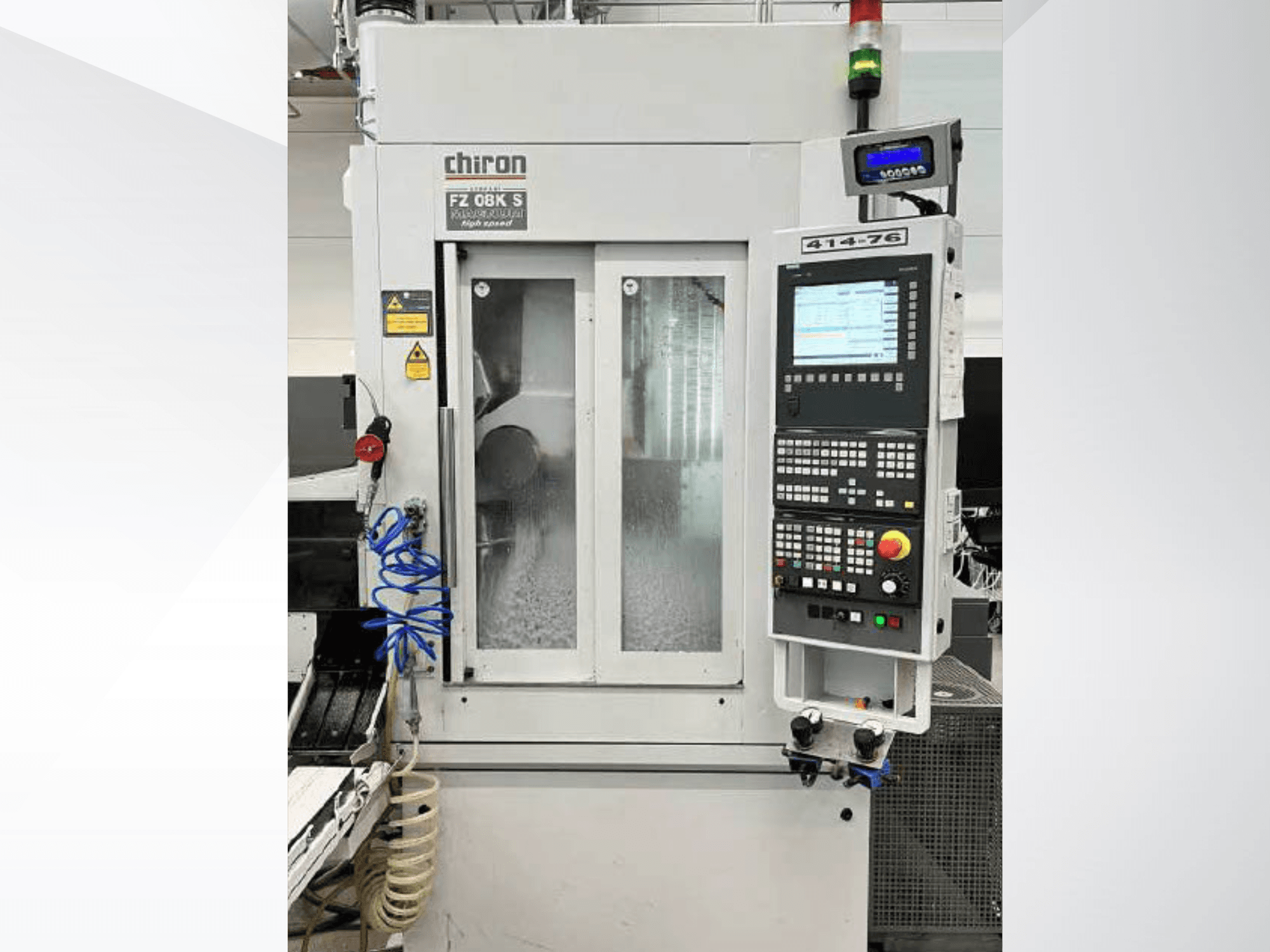

This 5-axis CHIRON FZ 08K S Magnum SK was manufactured in 2007. It features a Siemens 840D control unit, with impressive travels of 450 mm in the X-axis, 270 mm in the Y-axis, and 310 mm in the Z-axis. The machine includes a 40-position tool changer and a high-pressure coolant system. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 08K S Magnum SK vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: CHIRON
- year: 2007
- MODEL: FZ 08K S Magnum SK
- production hours: 22500
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON FZ 08K S Magnum SK
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 3
- X-axis Travel: 450 mm
- Y-axis Travel: 270 mm
- Z-axis Travel: 310 mm
Technical Specification
- Spindle Speed: 15000 RPM
Additional Information
Overhaul: Factory overhauled and technically updated by Chiron (CMS) in 2017
Last Spindle Replacement: September 2025
Last Maintenance: Major annual service (4,000 h) performed in October 2025
NC Swivel Head Range: −20° / +115°
Rapid Feed X/Y/Z: 75 m/min
Acceleration X/Y/Z: 1g / 1.5g / 2g
Tool Changer: 40 positions, HSK-A40
Chip-to-Chip Time: 2.6 s (vertical)
Rotary Table: AWU 160 with D105 mm positioning axis
Operating Hours: Approximately 22,500 h
Additional equipment
Clamping: Hainbuch Spanntop D100 collet chuck
Bar Loader: IRCO SiMag 100.1-3000 for round and profile material
High Pressure Coolant: 70 bar with Vario valve
Coolant Filtration: Knoll VRF, 400-liter vacuum rotation filter
Chip Conveyor: Scraper belt, 1,050 mm discharge height
Measurement/Monitoring: Renishaw TS27R 3D touch probe; tool life monitoring; tool breakage control
Collision Monitoring: Brankamp Marposs CMS 100
Guide Channel Sets: Breuning IRCO sets included (by arrangement)
Collets: Hainbuch collets included (by arrangement)
Tool Holders: Approximately 500 pieces HSK-A40
Spare Parts: Included for this machine type
Operating Materials: Specific operating fluids/materials included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
