CHEN HSONG - JM200-MK6eES-INJ-CHE-2023-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used CHEN HSONG JM200-MK6e For Sale | gindumac.com

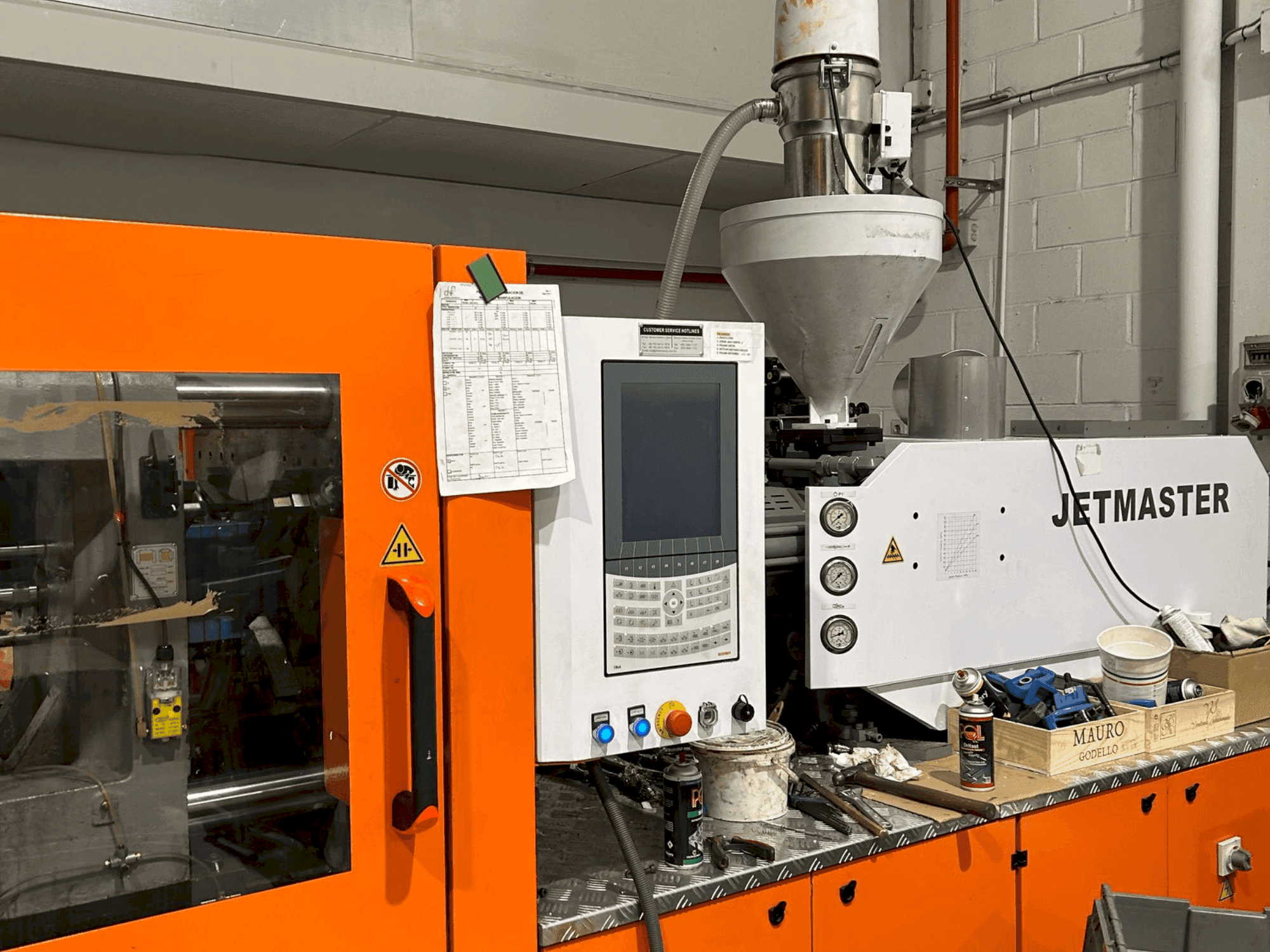

This CHEN HSONG JM200-MK6e was manufactured in 2023. It is a hydraulic injection moulding machine, ideal for precision plastic processing. Consider the opportunity to buy this CHEN HSONG JM200-MK6e hydraulic injection moulding machine. Contact us for further details regarding this machine.
Overview
- brand: CHEN HSONG
- year: 2023
- MODEL: JM200-MK6e
- application type: Injection Moulding
- Location: Spain
- machine type: Hydraulic Injection Moulding Machine
Technical Information - CHEN HSONG JM200-MK6e
Dimensions
- Machine Depth: 5800 mm
- Machine Height: 2100 mm
- Machine Weight: 5700 kg
Technical Specification
- Screw Diameter: 46 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Tie bar distance (hxv): 530 x 530 mm
- Max. Mold thickness: 550 mm
- Min. Mold thickness: 180 mm
- Center ring diameter: 160 mm
- System pressure: 17. 5 mpa
- Heater power: 15. 5 kw
- Temperature control zones: 3 + nozzle
Extra Information
Injection Unit Shot Volume: 431 / 551 / 734 cm³ Injected Weight (PS): 393 / 502 / 668 g Screw L/D Ratio: 23.7 / 21.0 / 18.2 Injection Rate (PS): 141 / 181 / 241 g/s Screw Stroke: 260 mm Nozzle Contact Force: 4.5 tons Nozzle Stroke: 280 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
