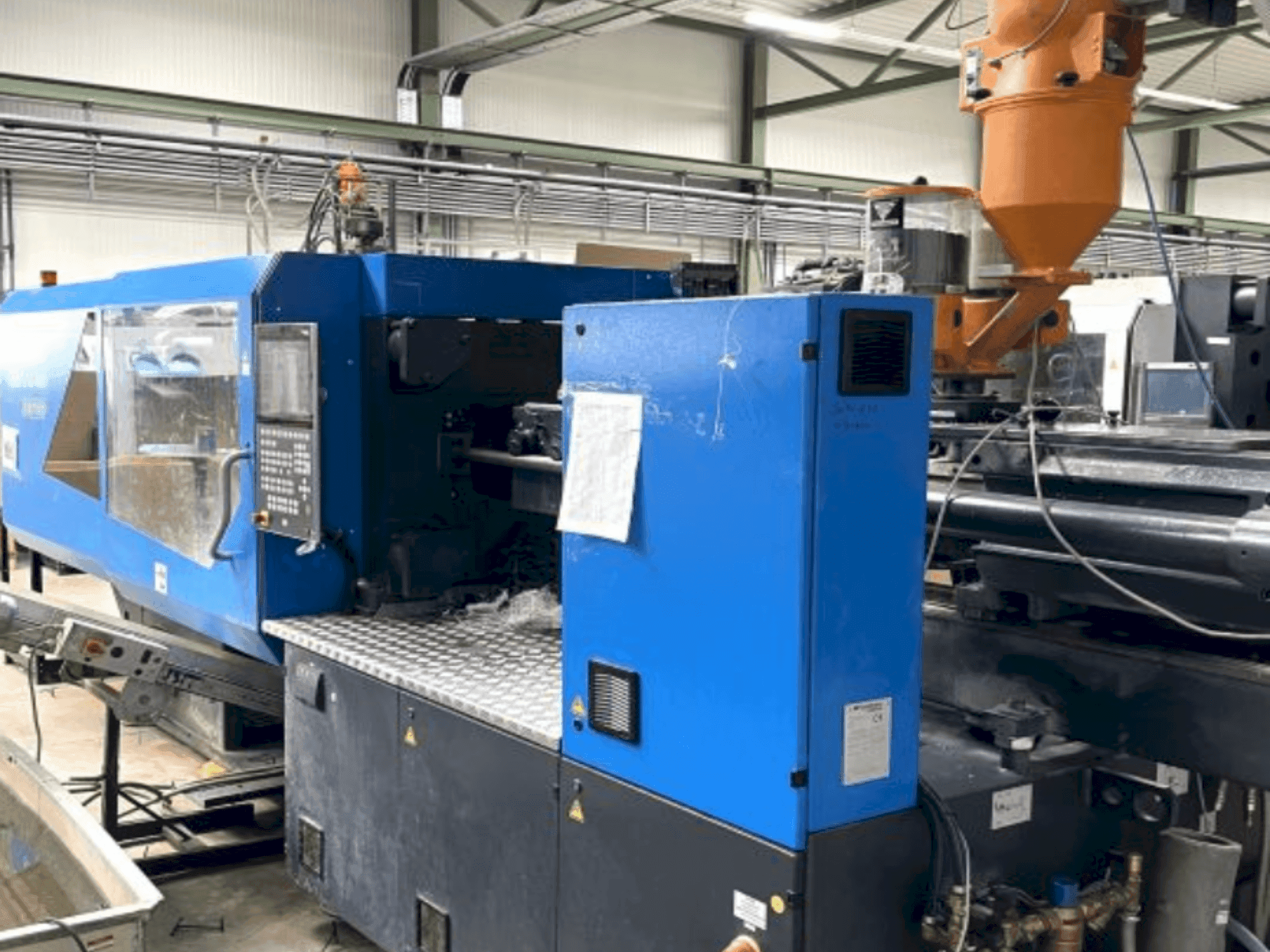

DEMAG - Systec 210/580-840DE-INJ-DEM-2019-00001

The dosing unit (orange part) is not included.

Integrated socket combination, country-specific,

can be switched off via main switch and shutdown program

2 x Schuko 1Ph/230V/16A; 2 x IECEE 3Ph/400V/16A residual current device

Pneumatic 5/2 valve No. 1 on movable mold clamping plate;

programmable, supplied via central air connection

includes hoses. Inputs and outputs freely programmable; 3 inputs and 3 outputs;

Terminal point outside the control cabinet

Interface for additional nozzle heating band; socket only

2-circuit core puller via switching valve on movable mold clamping plate; Q-independent (programmable);

With pilot-operated check valves to prevent core creep

Mold connection dimensions E (similar to Euromap March 96)

With side ejector plate, centering diameter of fixed platen: 160 mm

Centering diameter of movable platen:

Mold installation height increased by 100.0 mm

Min: 340 mm

Max: 790 mm
