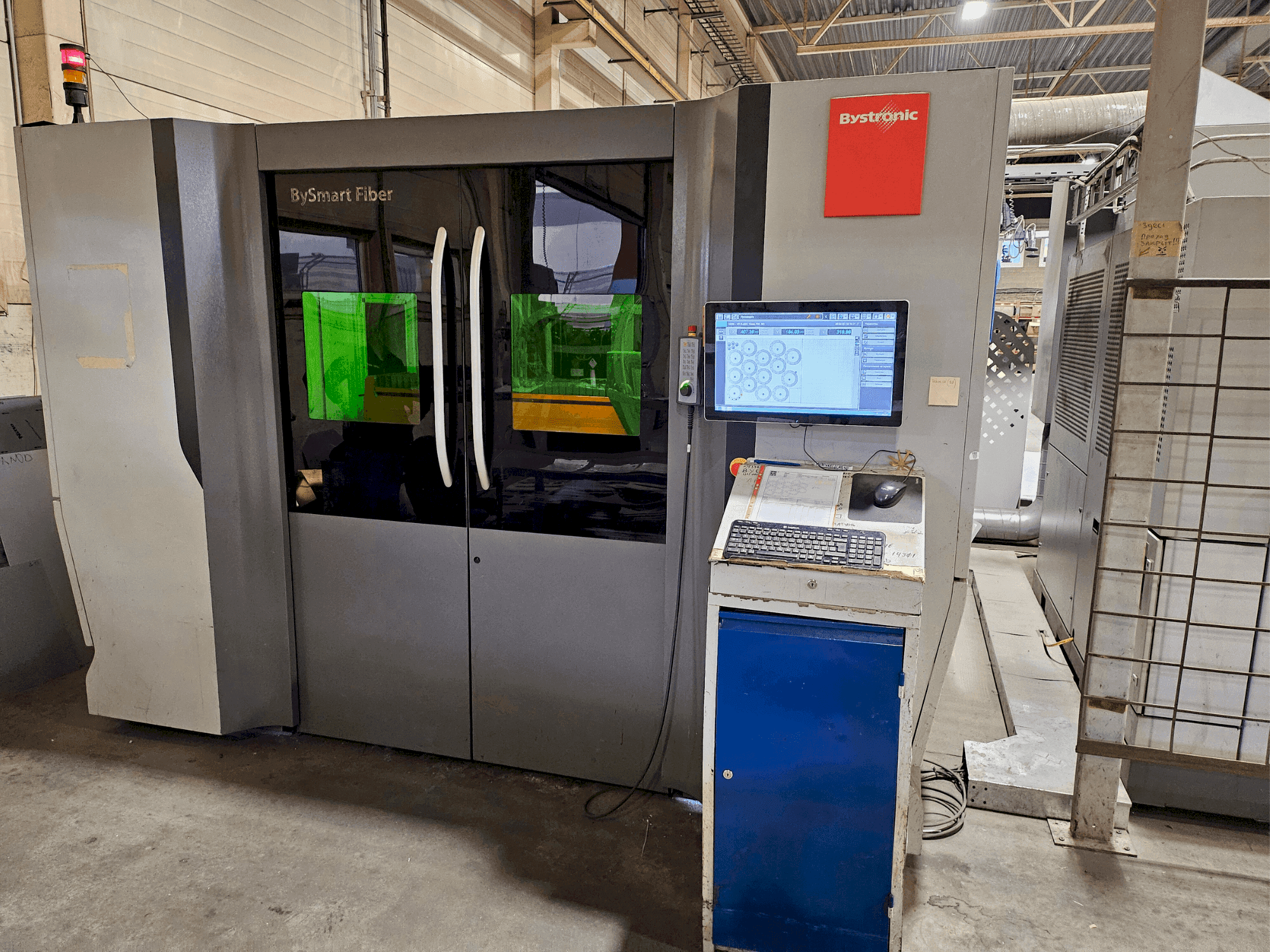

Front view of Bystronic BySmart Fiber 3015 6KW  machine

Bystronic BySmart Fiber 3015 6KW

Bystronic - BySmart Fiber 3015 6KW

2019

Rs. 26,352,000

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This BYSTRONIC BySmart Fiber 3015 6KW Laser Cutting Machine was manufactured in 2019. It is like new with only 6387h of operation. The cutting head was replaced with a new SSC V2.2 HLC8 (last model) end of 2023. In addition 2 modules were replaced. In total € 80.000 invested. The fiber laser has a laser power of 6kW. In production the machine can run with a sheet size of x = 3000mm and y = 1500 mm. See photo and video gallery for more impressions. Original tech specs sheet as PDF attached below.

Overview

  • brand: Bystronic
  • year: 2019
  • MODEL: BySmart Fiber 3015 6KW
  • production hours: 6387
  • application type: Laser Cutting
  • Location: Estonia
  • machine type: Fiber laser cutting machines
  • availability: Immediately
  • GINDUMAC ID: EE-LAS-BYS-2019-00001

Technical Information

General Data

  • Measurements width: 10495 mm
  • Measurements depth: 6903 mm
  • Measurements height: 2880 mm
  • Machine weight: 11800 kg (with chiller)

Movement

  • X-AXIS Movement: 3106 mm
  • Y-AXIS Movement: 1582 mm
  • Z-AXIS Movement: 100 mm

Workpiece

  • Workpiece weight: 1100 kg

Max Material thickness

  • Steel: 25 mm
  • Stainless steel: 30 mm
  • Aluminum: 30 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Sheet size x: 3000mm
      • - Sheet size y: 1500mm
      • - Total electric consumption with exhoust chiller 30kw
      • - Laser source fiber 6000w
    • Qualitative Machine Benefits:
      • - Max. Cutting thickness: steel 25mm // stained steel 30mm // aluminium 30mm // copper 12mm // brass 15mm
      • - Laser like new now very good shape
      • - New cutting head ssc v2. 2 hlc8 last model from 10. 2023, replaced 09. 2023 // 2 modules replaced 08. 2023 // total investment: € 80,000

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
