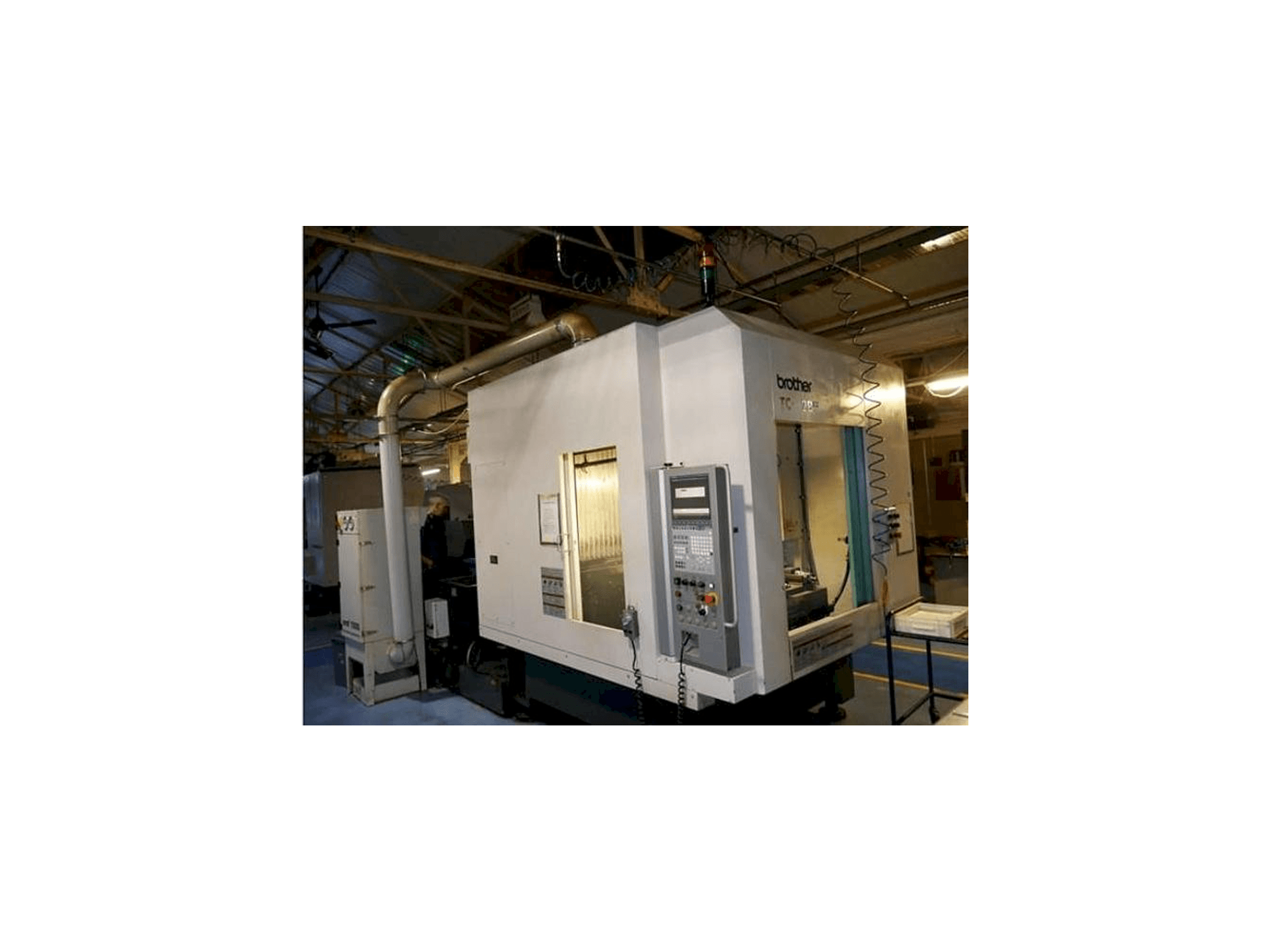

Front view of Brother TC-32 BN QT machine

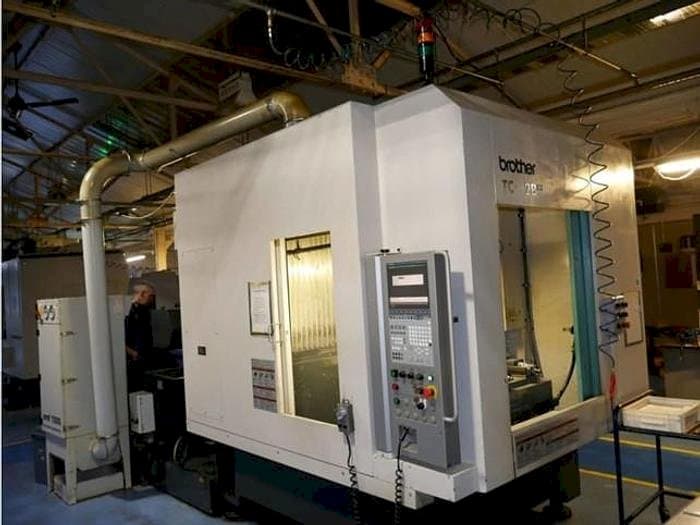

Front view of Brother TC-32 BN QT machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Brother - TC-32 BN QTIT-MIL-BRO-2006-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Brother TC-32 BN QT Vertical Machine Center was manufactured in 2006. It is equipped with a Brother control unit. The machine has a spindle speed of 16 - 16000 rpm.

Overview

  • brand: Brother
  • year: 2006
  • MODEL: TC-32 BN QT
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: BROTHER

Technical Information - Brother TC-32 BN QT

Control Unit

  • Brand: BROTHER

Main drive

  • Spindle speed range: 16 - 16000 1/MIN
  • Spindle motor power: 10 kw
  • Number of axis: 3

Movement

  • X-AXIS Movement: 550 mm
  • X-AXIS Rapid traverse: 70 m/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Rapid traverse: 70 m/min
  • Z-AXIS Movement: 415 mm
  • Z-AXIS Rapid traverse: 70 m/min

Table

  • Outer length: 600 mm
  • Outer width: 425 mm
  • Table load: 200 kg

    Additional Information

    Additional equipment

    • Chip conveyor, Through spindle coolant

    Machine Benefits

    Technical Machine Benefits

    • Distance between table-spindle nose: 645 mm
    • Spindle taper: nikken nc5
    • Tool turret atc: 26+1 positions

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
