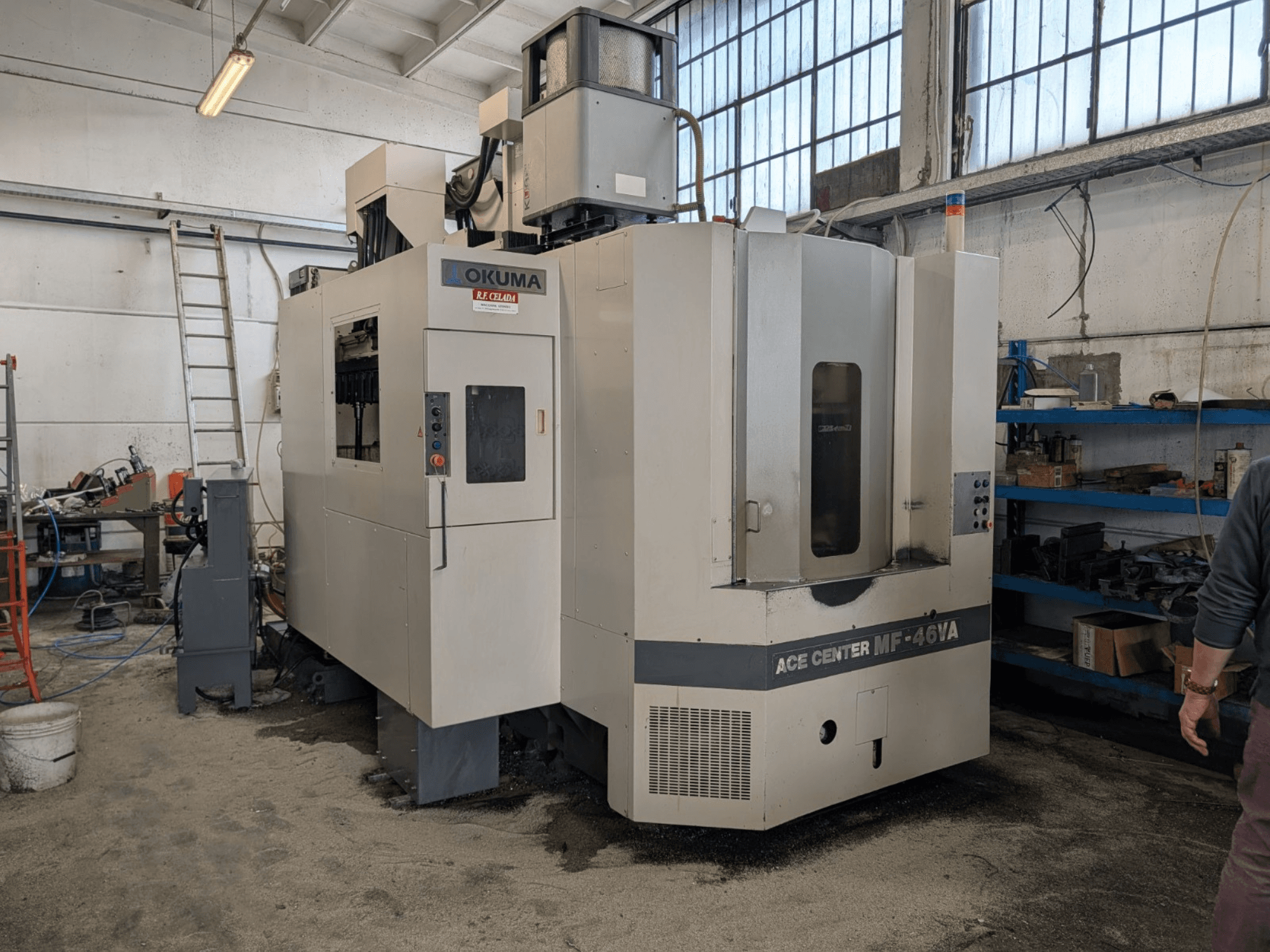

This 3-axis Okuma ACE CENTER MF-46VA was manufactured in 2006. It features an X-axis travel of 762 mm, Y-axis travel of 460 mm, and Z-axis travel of 460 mm. The machine is equipped with a maximum spindle speed of 15,000 rpm and an automatic tool changer with 32 stations. If you are looking to get high-quality machining capabilities, consider the Okuma ACE CENTER MF-46VA vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2006
- MODEL: ACE CENTER MF-46VA
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Okuma ACE CENTER MF-46VA
Dimensions
- Machine Height: 3000 mm
- Machine Length: 300 mm
- Machine Weight: 8000 kg
- Machine Width: 3270 mm
- Table Load: 400 kg
Movement
- Number of Axes: 3
- X-axis Travel: 762 mm
- Y-axis Travel: 460 mm
- Z-axis Travel: 460 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Tool Stations: 32
- Spindle Power: 22 kW
- Spindle Speed: 15000 RPM
- Taper Size: BT 40
Additional Information
Distance table to spindle nose: 180–640 mm
Rapid traverse (X/Y): 40 m/min
Rapid traverse (Z): 32 m/min
Maximum cutting feed: 32,000 mm/min
Positioning accuracy (X/Y/Z): ±0.004 mm (JIS)
Repeatability (X/Y/Z): ±0.0015 mm (JIS)
Pallet changer: 2 pallets, rotary automatic pallet changer
Pallet size: 760 × 460 mm
Pallet T-slots: 3 × 18 mm, 125 mm pitch
Pallet change time: 6.0 s
Spindle speed: 15,000 rpm (upgrade from 8,000 rpm)
Spindle motor power: 22 / 18.5 kW
Max spindle torque: 199 Nm
Thermal compensation: TAS-S (spindle) and TAS-C (structure)
ATC capacity: 32 tools (upgrade from 20), random management
Tool change time (adjacent): 1.2 s
Max tool diameter: 90 mm (125 mm with adjacent pockets empty)
Max tool length: 300 mm
CNC functions: Hi-2 NC with NURBS, Super Hi 2 NC profile management, synchronized rigid tapping, helical cutting, spindle cutting load monitor, IGF conversational programming, RS-232-C interface, 3.5" floppy drive
4th axis capability: prepared for 4th axis integration
Documentation: operator manuals and CE declaration of conformity included
Additional equipment
Tool breakage detection sensor (table-side mounted)
Prepared for Renishaw zero-offset part probe (probe not included)
“Shower” type work area coolant wash system
Belt-type oil skimmer on coolant tank
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
