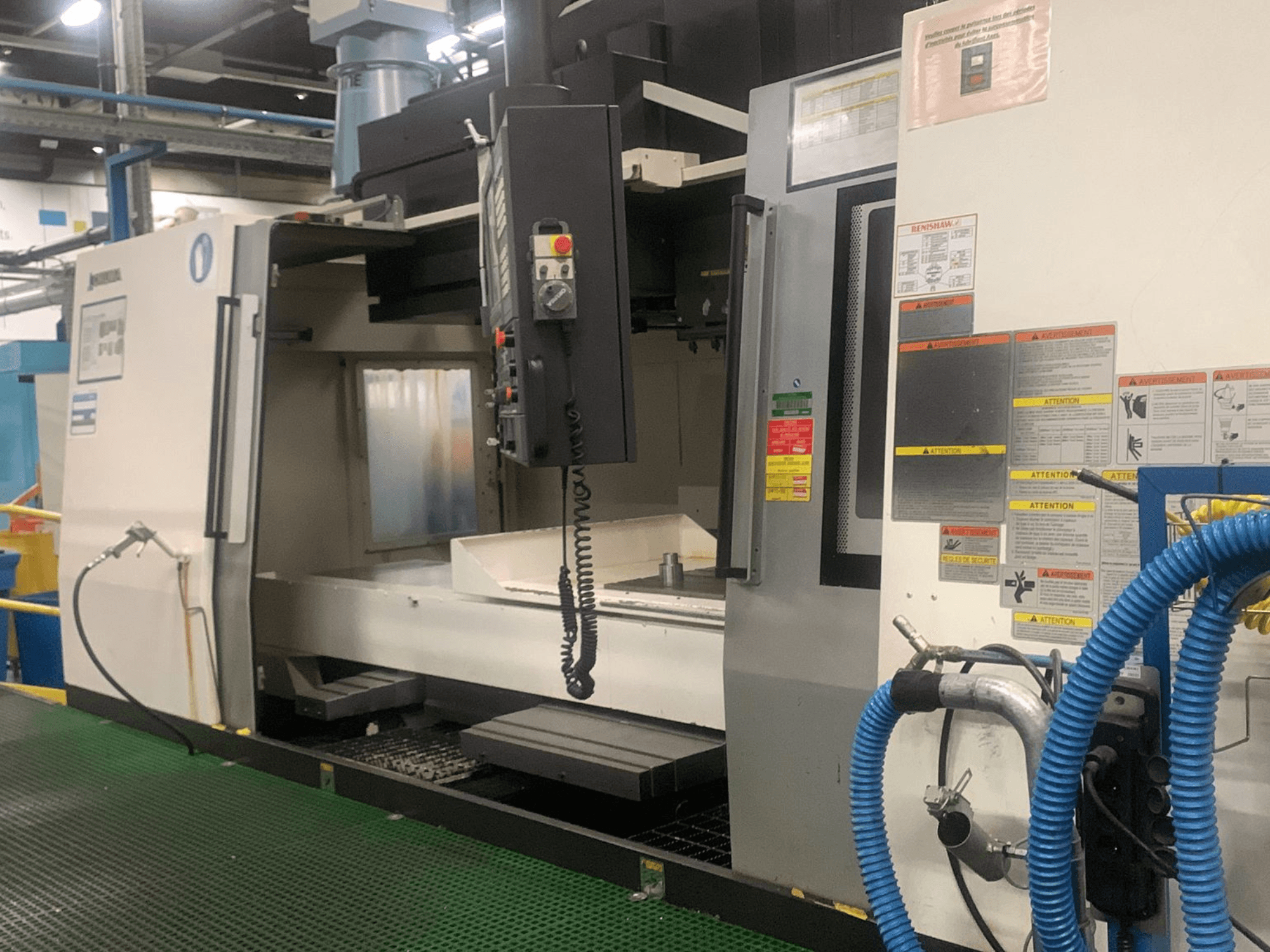

This 3-axis Okuma Millac 852 VII was manufactured in 2015. It features a robust table size of 2,200 × 850 mm and a maximum table load of 2,500 kg. The machine is equipped with a high-torque spindle motor of 18.5 kW and a rapid traverse of 20,000 mm/min. If you are looking to get high-quality machining capabilities, consider the Okuma Millac 852 VII vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2015
- MODEL: Millac 852 VII
- production hours: 500
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
Technical Information - Okuma Millac 852 VII
Dimensions
- Machine Weight: 20500 kg
- Table Load: 2500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2050 mm
- Y-axis Travel: 850 mm
- Z-axis Travel: 750 mm
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 6000 RPM
- Taper Size: BT 50
- Tool Stations: 36
Additional Information
Condition: Excellent; approximately 500 cutting hours; near-new condition
Heavy-duty machining center for high material removal rates
Extremely rigid machine structure
Box guideways on all axes; quadruple box guideway system on Y-axis
Automatic oil lubrication for guideways with machine stop monitoring
Okuma OSP300 control with IGF conversational programming
Parameterized automatic tool collision prevention system
Automatic cutting force, tool load, and spindle torque monitoring
Tool life management and tool usage monitoring
Communication interfaces: USB, PCMCIA, RS-232
Cutting force: 580 Nm
Chip removal capacity: 540 cm³/min
Spindle speed: 6,000 rpm
Spindle oil cooler
Table size: 2,200 × 850 mm
Rapid traverse: 20,000 mm/min
Tool change time: 0.5 s; chip-to-chip time: 5 s
Machine currently under production; can be inspected under power by an official Okuma technician
Includes documentation: spare parts list, electrical diagrams, programming manual, operation manual
Delivery: Immediate, subject to prior sale
Additional equipment
Renishaw tool measuring system
Independent Knoll high-pressure coolant system (70 bar)
30-micron coolant filtration system
LTA mist extraction system
Rear hinge-type chip conveyor
Large set of BT50 tool holders
Transformer
