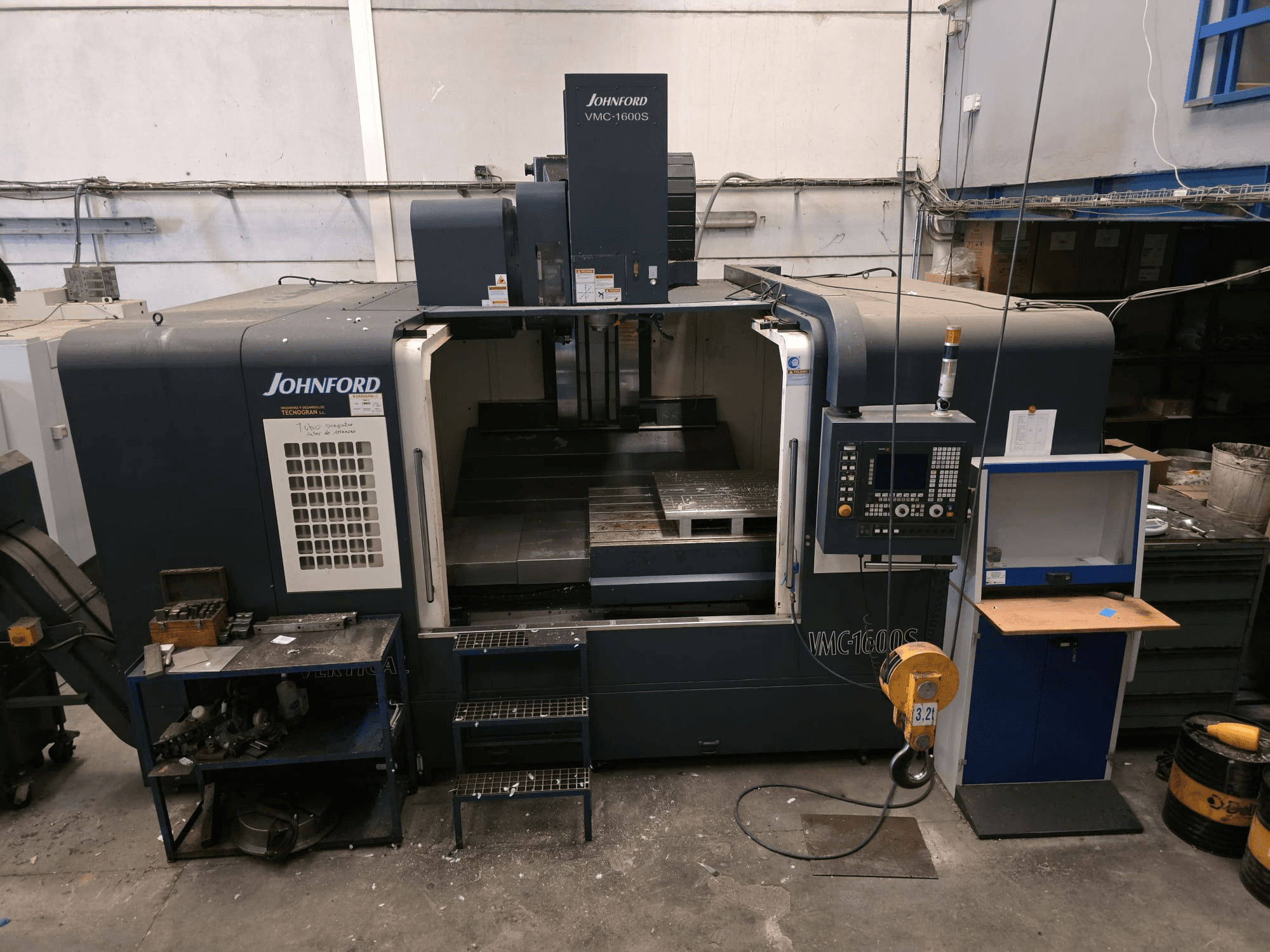

Johnford - VMC-1600SES-MIL-JOH-2014-00001

Table working surface: 70.9” x 39.4” (1800 x 1000 mm)

Spindle nose to table: 5.9”–37.4” (150–950 mm)

Spindle center to column: 45.3” (1150 mm)

Spindle taper:

• VMC-1600S: BT-40 / CAT-40

• VMC-1600SHD: BT-50 / CAT-50

Spindle diameter:

• VMC-1600S: 2.75” (70 mm)

• VMC-1600SHD: 3.9” (100 mm)

Spindle speed:

• VMC-1600S: Auto Hi-Lo Gear 80–8000 rpm

• VMC-1600SHD: Auto Hi-Lo Gear 10–4500 rpm

Spindle motor:

• VMC-1600S: 15/10 HP (15/20 HP optional)

• VMC-1600SHD: 25/20 HP

Rapid traverse (X/Y/Z): 18 / 18 / 12 m/min

Feed (spindle): 1–12,000 mm/min

Tool selection: Bi-direction random type, shortest path

Number of tools:

• VMC-1600S: Armless 24; Arm type 24/32 (optional)

• VMC-1600SHD: Armless 20; Arm type 24/32 (optional)

Max tool diameter:

• VMC-1600S: 4” (100 mm)

• VMC-1600SHD: 9.8” (250 mm)

Max tool length:

• VMC-1600S: 12.5” (320 mm)

• VMC-1600SHD: 15.7” (400 mm)

Max tool weight:

• VMC-1600S: 22 lbs (10 kg)

• VMC-1600SHD: 33 lbs (15 kg)

Floor space: 177.2” x 209.8” (4500 x 5330 mm)

X/Y/Z ballscrew diameter: φ50 / φ63 / φ50

Cutting capacity (S45C):

• Milling: 180 cc/min (S) / 320 cc/min (SHD)

• Drilling: φ40 mm (S) / φ52 mm (SHD)

• Tapping: M30 x P3.5 (S) / M50 x P4.5 (SHD)
