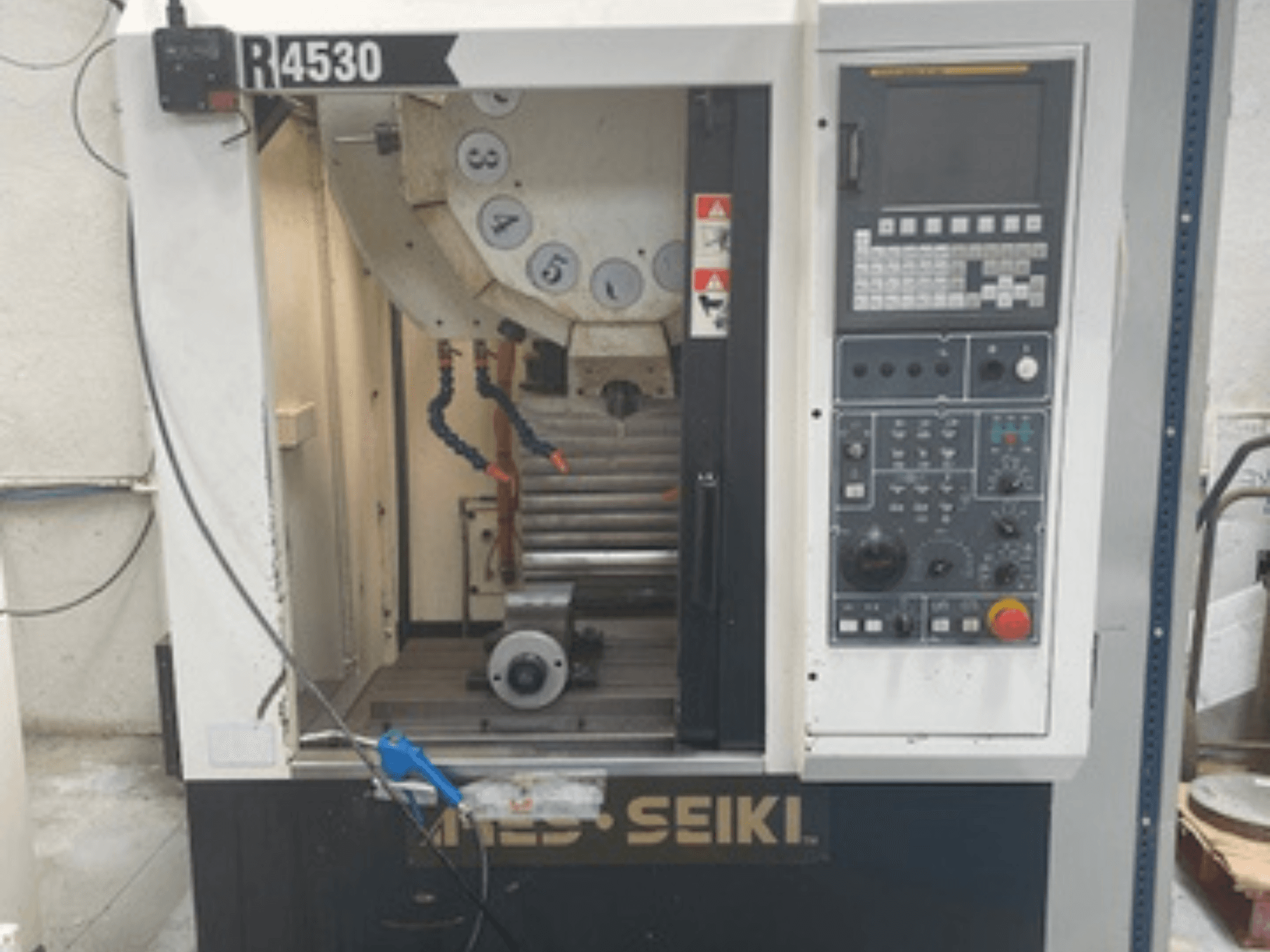

This 3-axis ARES-SEIKI R4530 was manufactured in 2006. It features an X-axis travel of 450 mm, Y-axis travel of 300 mm, and Z-axis travel of 300 mm. The machine includes a work table size of 600 mm x 300 mm and a maximum table load of 200 kg. If you are looking to get high-quality machining capabilities, consider the ARES-SEIKI R4530 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: ARES-SEIKI
- year: 2006
- MODEL: R4530
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
Technical Information - ARES-SEIKI R4530
Dimensions
- Machine Weight: 2550 kg
- Table Load: 200 kg
Movement
- Number of Axes: 3
- X-axis Travel: 450 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 300 mm
Technical Specification
- Max. Tool Weight: 3 kg
- Spindle Power: 5.5 kW
- Spindle Speed: 8000 RPM
- Taper Size: BT 30
Additional Information
Travels & Table
Work table size: 600 x 300 mm
Automatic Tool Changer (ATC)
Tool storage capacity: 10 tools
Tool selection: Random, bi-directional
Max. tool diameter: 80 mm
Max. tool length: 200 mm
Tool-to-tool change time: 1.0 s
Motion & Accuracy
Rapid traverse (X/Y/Z): 30,000 mm/min
Cutting feedrate: 1–5,000 mm/min
Positioning accuracy: ±0.005/300 mm
Repeatability: ±0.002 mm
General Data
Power requirement: 15 kVA
Air pressure requirement: 5 kg/cm²
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
