➤ Used Bernardo Variomill FU 2000E Servo | Machining

Show in original language

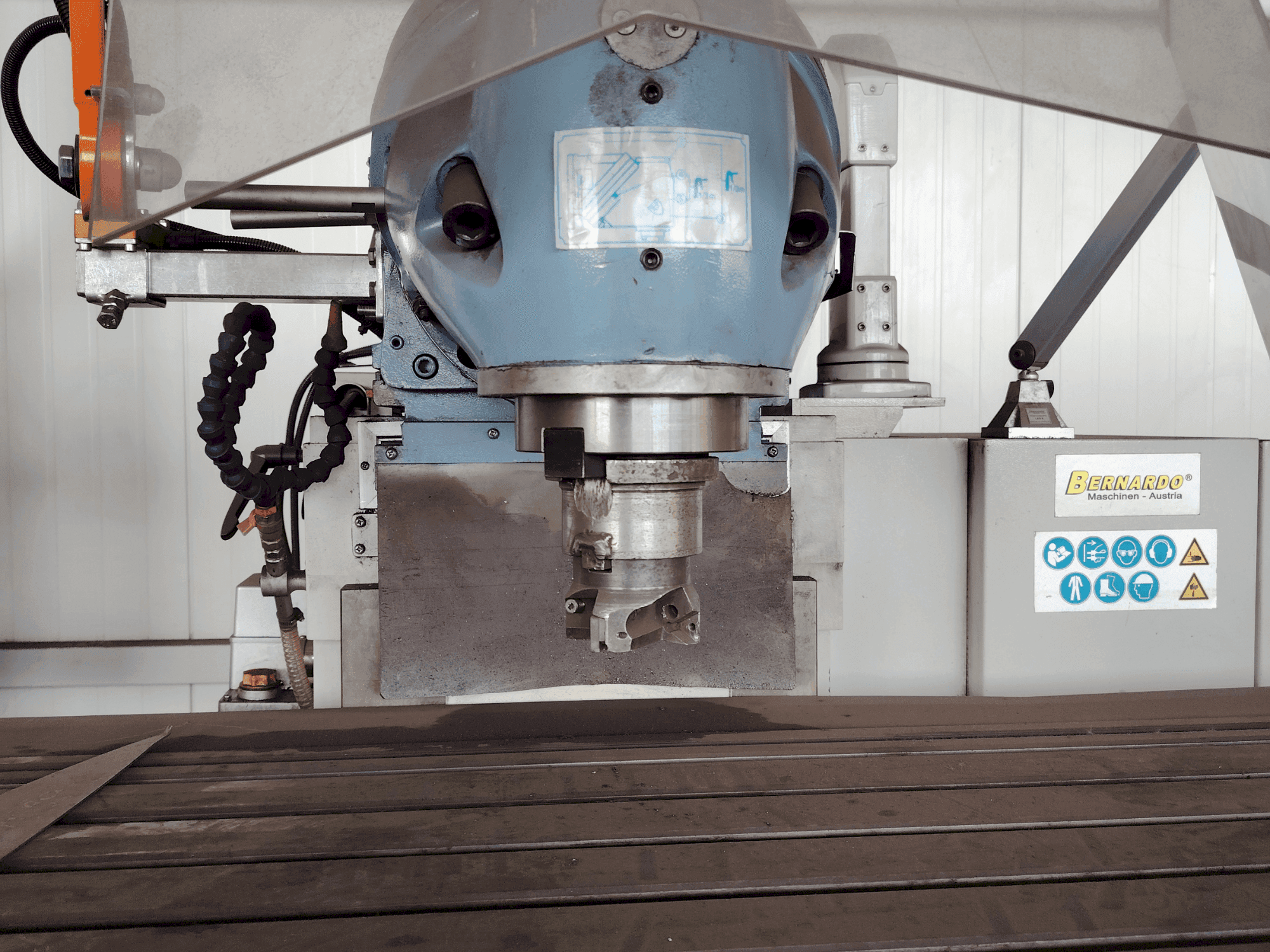

This 3-axis Bernardo Variomill FU 2000E Servo was manufactured in 2020. It features a table size of 2000 x 500 mm, spindle taper ISO 50, and a spindle speed range of 30 - 2050 rpm. The machine offers a maximum table load capacity of 1800 kg and includes rapid traverse rates up to 2200 mm/min in X/Y axes. Consider the opportunity to buy this Bernardo Variomill FU 2000E Servo vertical machining centre. Contact us for more information.

Overview

brand: Bernardo
year: 2020
MODEL: Variomill FU 2000E Servo
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - Bernardo Variomill FU 2000E Servo

General Data

Measurements width: 2600 mm
Measurements depth: 2285 mm
Measurements height: 2100 mm
Machine weight: 5000 kg

Main drive

Number of spindles: 1
Spindle speed range: 2050 rpm 1/MIN
Spindle motor power: 7.5 kW
Tool taper: ISO 50
Number of axis: 3

Movement

X-AXIS Movement: 1400 mm
X-AXIS Rapid traverse: 2200 mm/min
Y-AXIS Movement: 700 mm
Y-AXIS Rapid traverse: 2200 mm/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 1100 mm/min

Table

TSlots size: 18 mm
Number of tslots: 5

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T-slots (spacing): 80 mm
- - Automatic feed rate in x-axis: 10 – 1000 mm/min
- - Automatic feed rate in y-axis: 10 – 1000 mm/min
- - Automatic feed rate in z-axis: 5 – 500 mm/min
- - Spindle-to-table distance: 50 – 550 mm
- - Spindle-to-column clearance – min. : 28 mm
- - Spindle-to-column clearance – max. : 728 mm
- - Speed change – number of gears / stepless: 27

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
