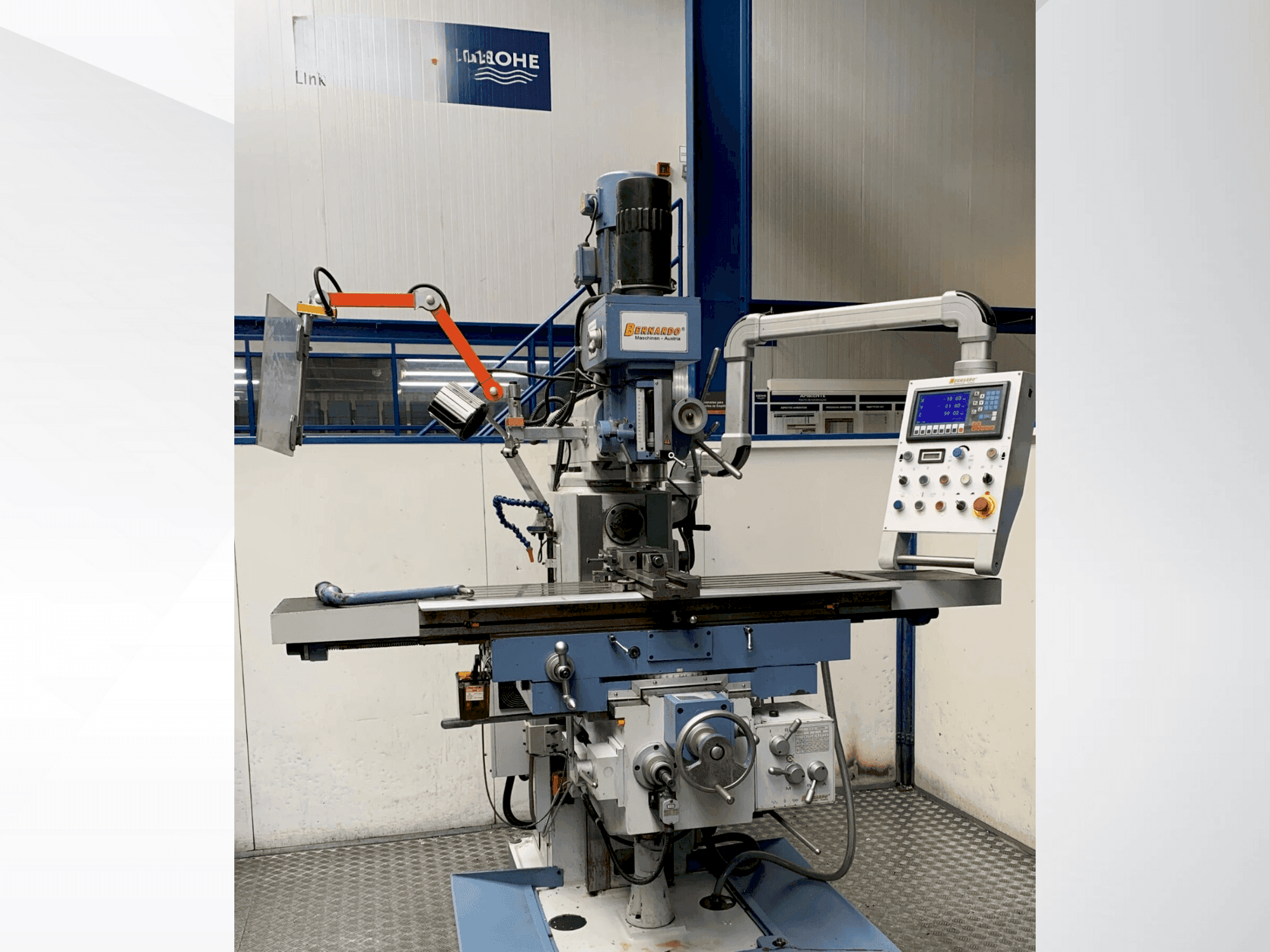

Front view of Bernardo UWF 95 N machine
Front view of Bernardo UWF 95 N machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bernardo - UWF 95 NPT-MIL-BER-2020-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bernardo UWF 95 N Universal Milling Machine was built in the year 2020 in Austria. It is equipped with a Bernardo control unit. The machine has a vertical spindle speed of 90 - 2000 rpm and a horizontal spindle speed of 40 - 1300 rpm.

Overview

  • brand: Bernardo
  • year: 2020
  • MODEL: UWF 95 N
  • application type: Milling
  • Location: Portugal
  • machine type: Universal Machining Centre

Technical Information - Bernardo UWF 95 N

Dimensions

  • Machine Depth: 1960 mm
  • Machine Height: 2400 mm
  • Machine Weight: 2200 kg
  • Table Length: 1600 mm
  • Table Width: 360 mm

Movement

  • X-axis Travel: 1300 mm
  • Y-axis Travel: 300 mm
  • Z-axis Travel: 400 mm

Technical Specification

  • Taper Size: ISO 40

Additional Information

Machine Benefits

Technical Machine Benefits

  • Spindle speed vertical: (8) 90 - 2000 rpm, motor power vertical: 2. 2 kw
  • Spindle speed horizontal: (12) 40 - 1300 rpm, motor power horizontal: 2. 2 kw
  • Spindle stroke: 120 mm
  • Spindle feed: 0. 08 / 0. 15 / 0. 25 mm/rev.
  • Distance spindle to column: 150 - 770 mm
  • Table util table: -45° to +45°
  • Spindle head tilting range: -90° to +90°
  • Distance spindle / table: 120 - 520 mm
  • Feed range longitudinal: (8) 22 - 420 mm/min, feed range cross: (8) 22 - 393 mm/min, feed range vertical: (8) 6 -112 mm/min
  • T-slot size: 14 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
