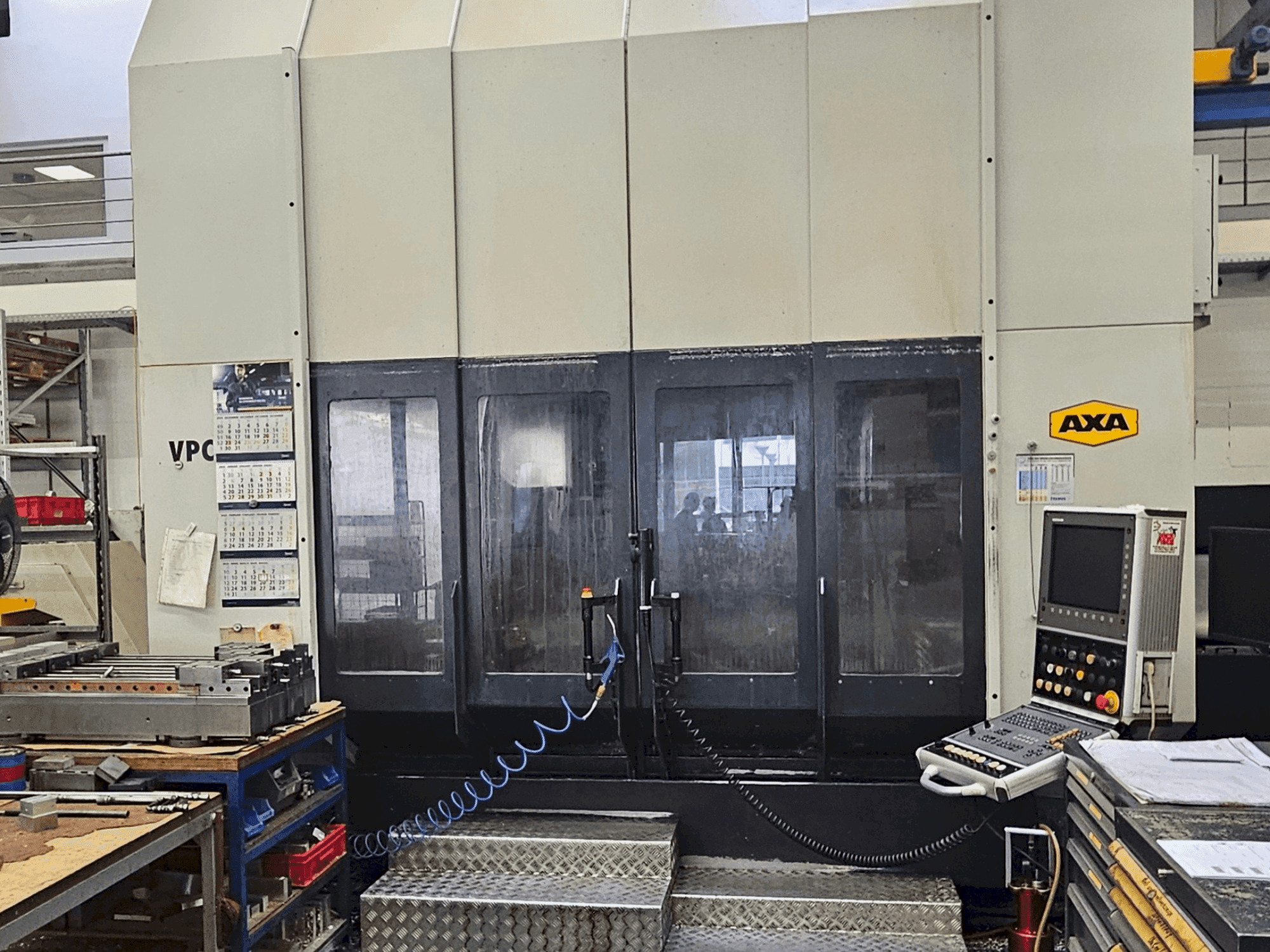

AXA - VPC-40-UDE-MIL-AXA-2003-00002

Machine Benefits

Technical Machine Benefits

• Spindle torque (40% ed): 143 nm
• Clamping area: 1100×1100 mm
• T-slots: 7 pieces (middle guide slot: h7), 14 h9 mm
• Chain magazine pockets: 36
• Tool change time: approximately 6 seconds
• Max. Tool weight/max. Tool length: 8 kg/340 mm
• Max. Tool weight (in gripper): 10 kg

Extra Information

Rotary Table RTA 5 Clamping Area: 1100×1100 mm, corners chamfered at 150 mm×45∘ T-slots: 7 pieces (Middle guide slot: H7), 14 H9 mm Load Capacity: 1500 kg per table (with uniform, flat load) Max. Transmissible Torque (by worm gear): 4500 Nm Max. Tangential Torque (with hydraulic clamping): 10000 Nm Max. Tilting Moment: 26000 Nm Measurement System Accuracy: ±5 " Repeatability: ±0.01 mm Positioning Accuracy (per 1000 mm per axis X, Y, Z): ±0.015 mm
