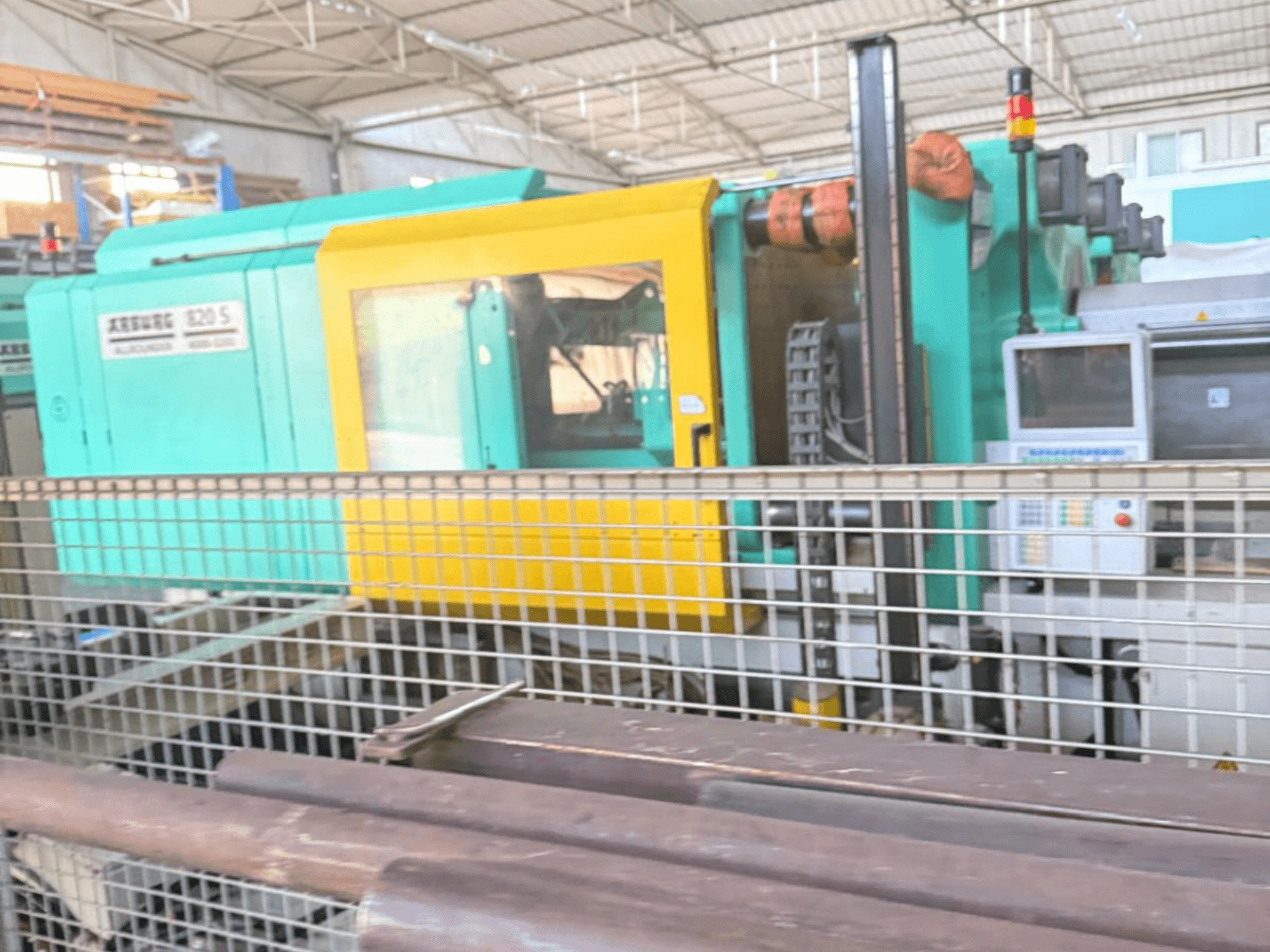

Arburg - SELECTA 820 S 4000 - 3200 IT-INJ-ARB-2005-00001

Quantity available: 4

Clamping unit:

• Opening force: 100 kN

• Opening stroke: 700 mm

• Minimum mould height: 350 mm

• Maximum daylight: 1550 mm

• Tie bar spacing: 820 x 820 mm

• Platen size: 1171 x 1171 mm

• Max. moving platen weight: 4500 kg

• Ejector force: 100 kN

• Ejector stroke: 250 mm

Injection unit:

• Screw diameter: 70 mm

• Screw L/D ratio: 23 / 20 / 18

• Max. screw stroke: 320 mm

• Shot volume: 1323 / 1608 / 2036 cm³

• Max. shot weight (PS): 1215 / 1469 / 1860 g

• Injection pressure: 2500 / 2000 / 1530 bar

• Injection rate: 304 / 396 / 502 cm³/s

• Screw speed: 350 rpm

• Screw peripheral speed: 65 / 75 / 80 m/min

• Screw torque: 2247 Nm

• Nozzle contact force: 110 kN

• Nozzle stroke: 600 mm

Drive and power:

• Hydraulic pump motor: 55 kW

• Total installed power: 96.2 kW

Heating:

• Cylinder heating capacity: 6 zones (5500 + 4300 W)

• Nozzle heating: 1250 W

Oil tank capacity: 590 l
