Arburg - Allrounder Selecta 720 S 3200-2100DE-INJ-ARB-2004-00003

Name: Arburg Allrounder Selecta 720 S 3200-2100
Brand: Arburg
SKU: DE-INJ-ARB-2004-00003
Price: 1954800 INR
Availability: InStock

Rs. 1,954,800

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery

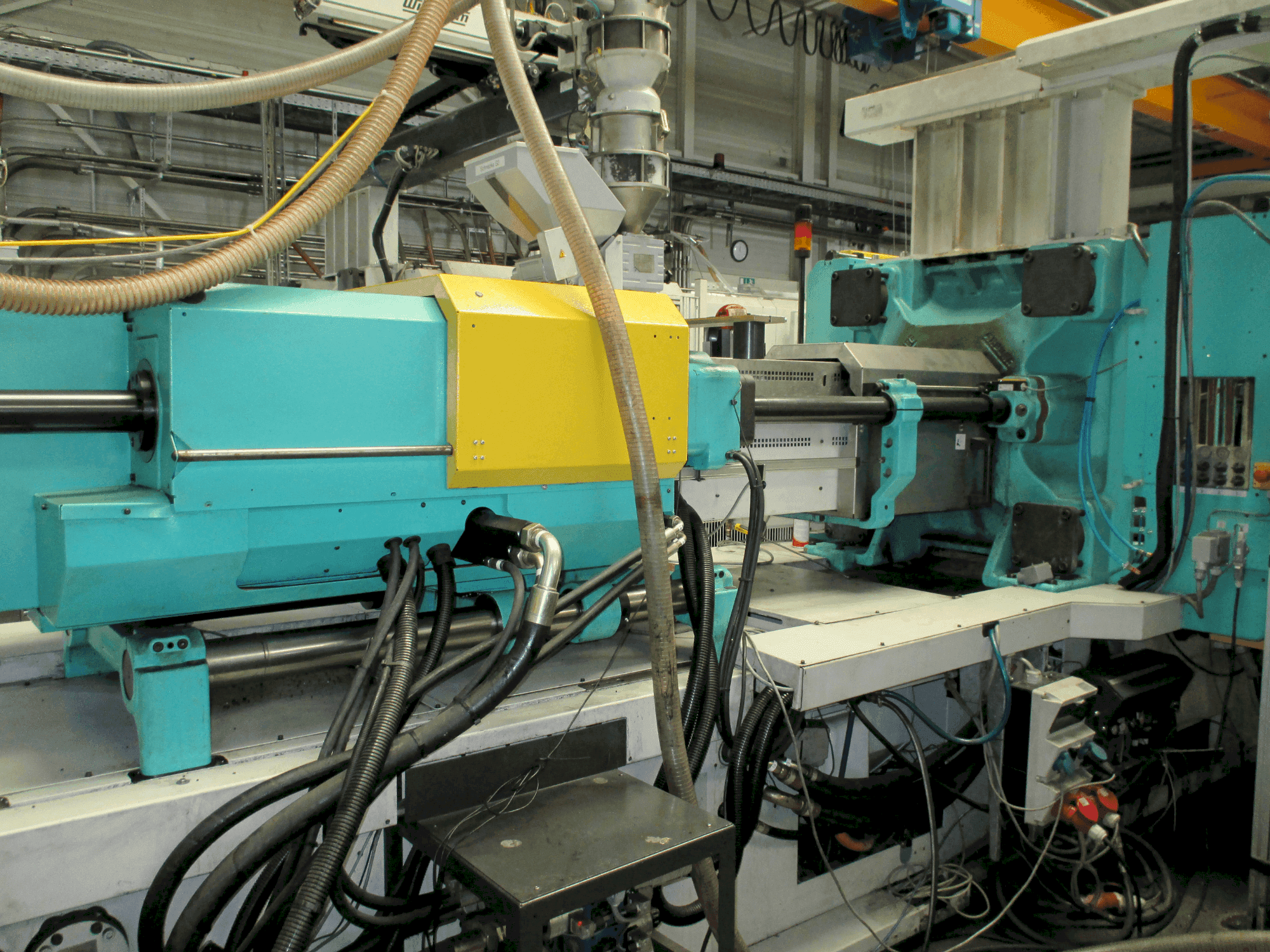

➤ Used Arburg Allrounder Selecta 720 S 3200-2100 For Sale

Show in original language

This hydraulic injection moulding machine was manufactured in 2004. It features a screw diameter of 60mm and can handle a maximum injection weight of 723g. The machine supports a clamping force of 3200kn with a maximum opening stroke of 700mm. It is equipped with special features like 2xAS core pull and 6xDS hot runner control points. Ideal for robust performance in a production setting, the Arburg Allrounder Selecta 720 S 3200-2100 machine we have for sale. Contact us for more information.

Overview

brand: Arburg
year: 2004
MODEL: Allrounder Selecta 720 S 3200-2100
production hours: 64300
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Allrounder Selecta 720 S 3200-2100

General Data

Measurements width: 2200 mm
Measurements depth: 7200 mm
Measurements height: 2400 mm
Machine weight: 17700 kg

Injection Unit

Screw diameter: 60 mm
Shot weight: 723 g/hp max
Injection pressure: 2500 bar max

Clamping unit

Clamping force: 3200 kN
Opening stroke: 700 mm max
Distance between bars: 720 mm x 720 mm
Mould height min: 300 mm
Size of mold platens: 1040 mm x 1040 mm

Additional Information

Additional equipment

The Wittmann robot is not included
Conveyor belt is included, protective housing only for the electrical components
No other peripherals are included.

Machine Benefits

Qualitative Machine Benefits

Condition: used, pump overhauled

Technical Machine Benefits

Known defects: water computer and water batteries should be overhauled (no influence on function)
Machine without handling system and peripherals

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
