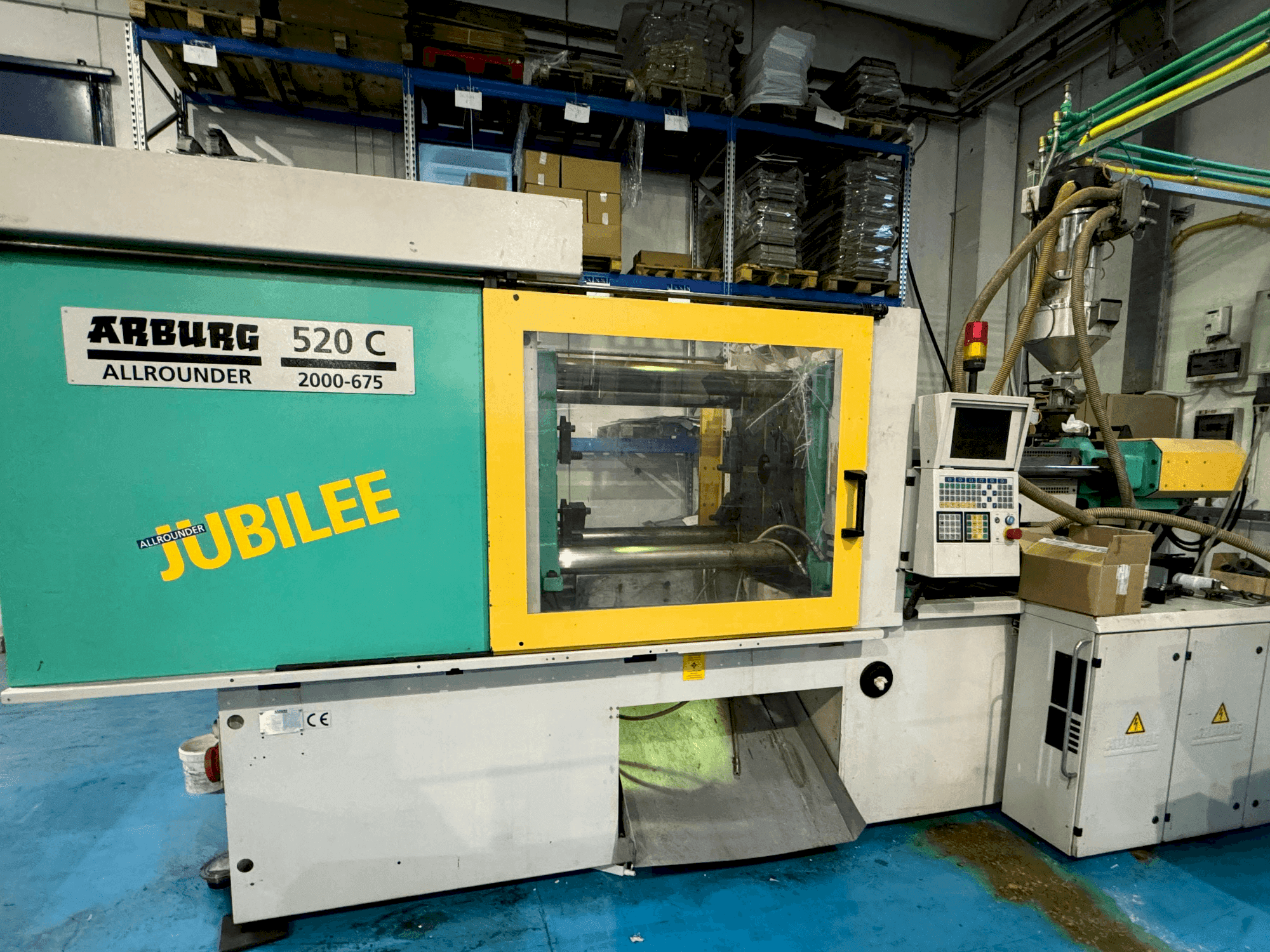

Front view of Arburg ALLROUNDER CENTEX 520 C 2000-675  machine

Arburg ALLROUNDER CENTEX 520 C 2000-675

Arburg - ALLROUNDER CENTEX 520 C 2000-675

1998

Rs. 624,300

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ARBURG ALLROUNDER CENTEX 520 C 2000-675 Injection moulding machine was manufactured in 1998 in Germany. It has a clamping force of 2000 kN, an opening stroke of 650 mm and is equipped with an injection unit with 55mm screw diameter. The plate dimensions are 715x715 mm and distance between columns is 900 mm. It is still under power and can be inspected on-site anytime.

Overview

  • brand: Arburg
  • year: 1998
  • MODEL: ALLROUNDER CENTEX 520 C 2000-675
  • application type: Injection Moulding
  • Location: Italy
  • machine type: Injection Moulding Machine
  • availability: Immediately
  • GINDUMAC ID: IT-INJ-ARB-1998-00001

Technical Information

General Data

  • Machine weight: 6630 kg

Injection Unit

  • Screw diameter: 55 mm
  • Injection pressure: 1720 bar
  • Heating capacity: 14.9 kW

Clamping unit

  • Clamping force: 2000 kN
  • Opening stroke: 650 mm
  • Distance between bars: 900 mm
  • Size of mold platens: 715 x 715 mm

Media

  • Main electronic connection: 400 V 3 ~ 50 HZ
  • Pump drive power: 1 x 30 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
