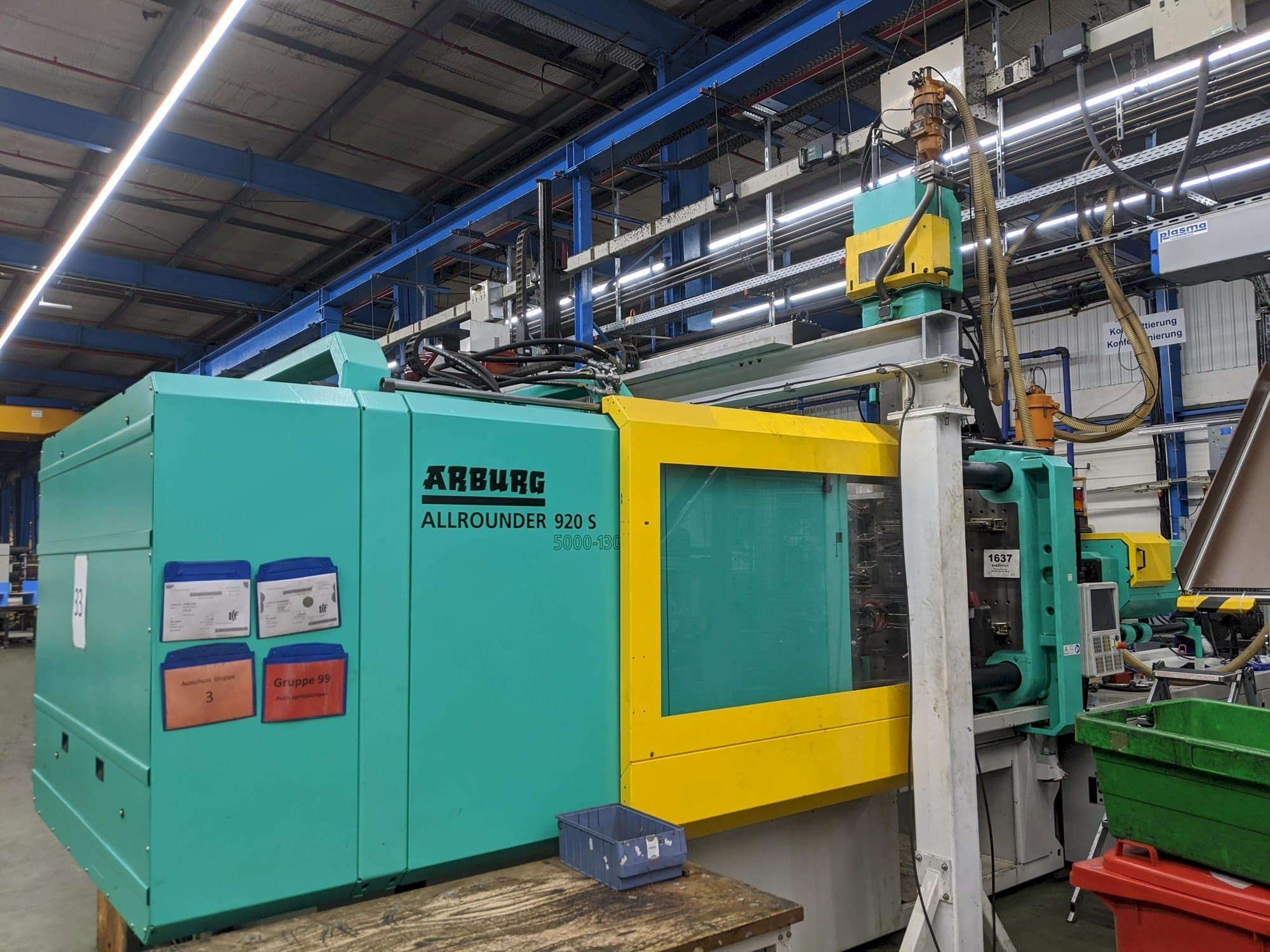

Front view of Arburg ALLROUNDER 920 S 5000 - 1300 / 400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg ALLROUNDER 920 S 5000 - 1300 / 400

Photo Gallery

Arburg - ALLROUNDER 920 S 5000 - 1300 / 400DE-INJ-ARB-2018-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg ALLROUNDER 920 S 5000 - 1300 / 400 injection moulding machine

Show in original language

This Arburg ALLROUNDER 920 S 5000 - 1300 / 400 injection moulding machine was built in 2018 in Germany. It is operated through a ARBURG SELOGICA control unit. This machine has a clamping force of 5000 kN. It has approximately 4500 hours.

Overview

brand: Arburg
year: 2018
MODEL: ALLROUNDER 920 S 5000 - 1300 / 400
production hours: 4500
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: ARBURG

Technical Information - Arburg ALLROUNDER 920 S 5000 - 1300 / 400

Control Unit

Model: SELOGICA
Brand: ARBURG

Clamping unit

Clamping force: 5000 kN
Opening stroke: 900 mm
Distance between bars: 1300-1950 mm
Mould height min: 700|400 mm
Size of mold platens: 1280 x 1280 mm
Ejector force for / back: 100-250 kN

Additional Information

Machine Benefits

Qualitative Machine Benefits

There is no integrated turning unit, but we could offer an additional turning unit (hydraulic alternating) - extra cost

Technical Machine Benefits

The machine is equipped with a set of horizontal d55 and vertical d45
The ee2 is a vertical angle unit
Weight movable tool half: 8000 kg max
Clear column spacing (w x h): 920 x 920 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
