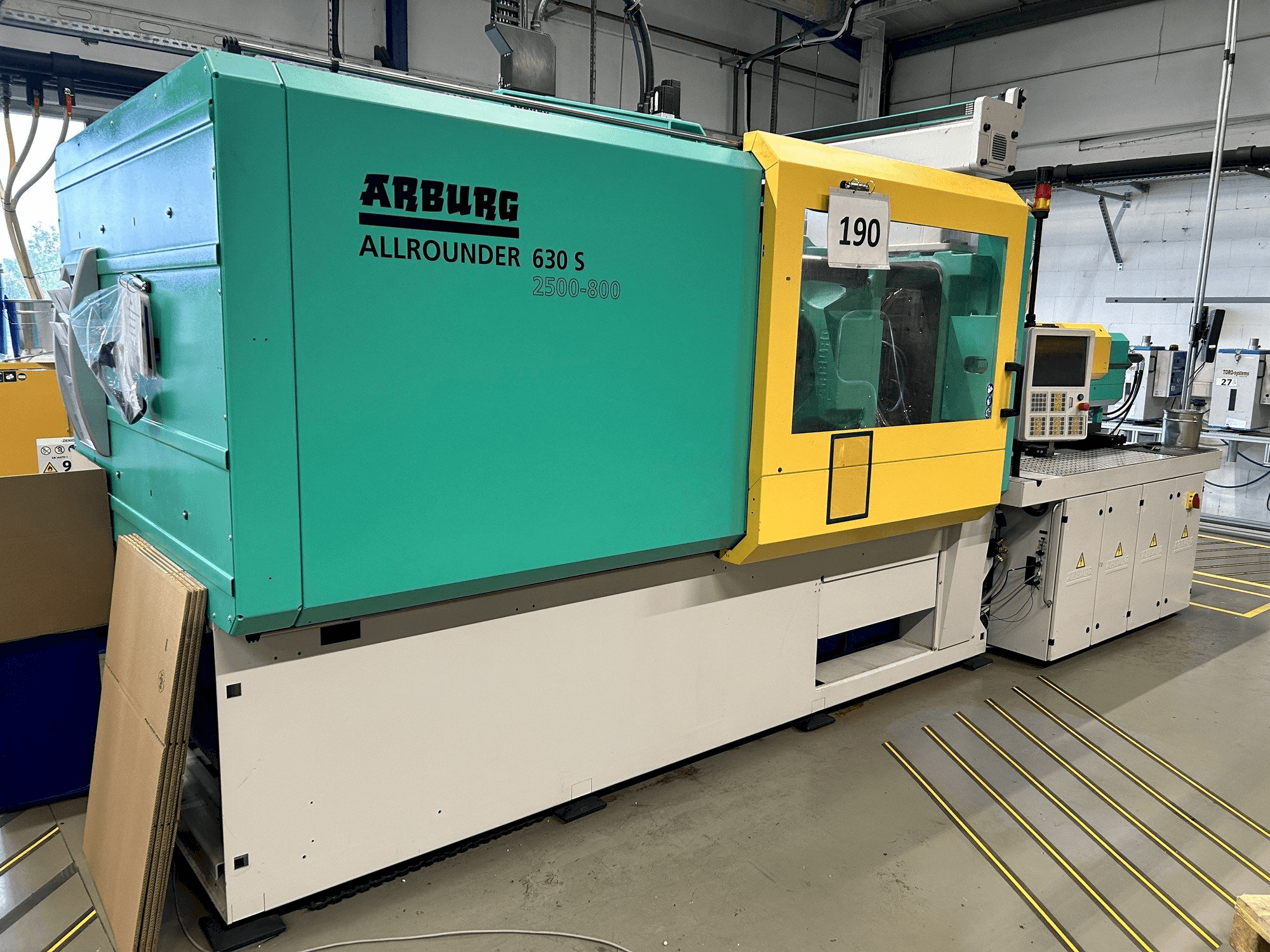

Front view of Arburg Allrounder 630S 2500-800 (2016)  machine

Arburg Allrounder 630S 2500-800

Arburg - Allrounder 630S 2500-800

2016

Rs. 8,048,550
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ARBURG Allrounder 630S 2500-800 injection moulding machine was manufactured in May 2016. It offers a robust 2750kN clamping force, with a hydraulic drive system and precise control features, including 18 hot runner control zones. Key specifications include 45mm screw diameter, a 318cm³ dosing volume, 2470 bar maximum injection pressure, and a 242 cm³/s injection speed, ensuring high performance and consistent quality in production. Furthermore, it's equipped with a Multilift Select robotic system, enhancing automation and efficiency in handling. The ARBURG Allrounder machine we have for sale is tailored for high-volume and intricate moulding operations. It is in very good condition, and has low hours (only 4507 automatic hours) as it was mainly used as technical center machine for sampling and tryouts. Contact us for more information about this injection moulding machine. See original order confirmation (German) for further details attached below.

Overview

  • brand: Arburg
  • year: 2016
  • MODEL: Allrounder 630S 2500-800
  • production hours: 4507
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Injection Moulding Machine
  • availability: Immediately
  • control unit brand: Arburg
  • GINDUMAC ID: DE-INJ-ARB-2016-00002

Technical Information

General Data

  • Measurements width: 6157 MM
  • Measurements depth: 5935 MM
  • Measurements height: 2665 MM
  • Machine weight: 12200 KG

Control Unit

  • Brand: Arburg
  • Model: Selogica
  • CNC main language: German, English

Main drive

  • Max payload: 15 kg

Injection Unit

  • Screw diameter: 45 mm
  • Shot weight: 291g (PS)
  • Stroke volume: 318 CM³
  • Injection pressure: 2470 bar
  • Heating capacity: 19.9 kW
  • Adjustable heating zones: 18

Clamping unit

  • Clamping force: 2500 kN
  • Opening stroke: 600 mm
  • Distance between bars: 630 mm
  • Mould height min: 300 mm
  • Mould height max: 1300 mm
  • Size of mold platens: 900 mm
  • Ejector stroke: 225 mm
  • Ejector force for / back: 90 kN

    Additional equipment

    • - Robot system: Arburg Multilift Select with Payload: 15 kg, 3-CNC axes (X=2000/Y=700/Z=1000) + C-axis (O° / 90°, 24 Nm), and integration
    • - Extended mold installation height via adjustment plate
    • - Interface for communication with Kistler CoMo Injection
    • - Conveyor belt
    • - Safety fence for Multilift operation

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Number of core pulls (hydraulically controlled): 6
        • - Number of hot runner control zones: 18
      • Qualitative Machine Benefits:
        • - Integrated robot system (arburg multilift select) for efficient handling and production automation
        • - It is in very good condition, and has low hours (only 4507 automatic hours)
        • - Mainly used as technical center machine for sampling and tryouts

      Extra information

      • - Machine cycles: 338114 // Operating hours pump: 7868 // Operating hours automatic: 4507 // Operating hours semi-automatic: 570 // Operating hours robot system: 2315

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
