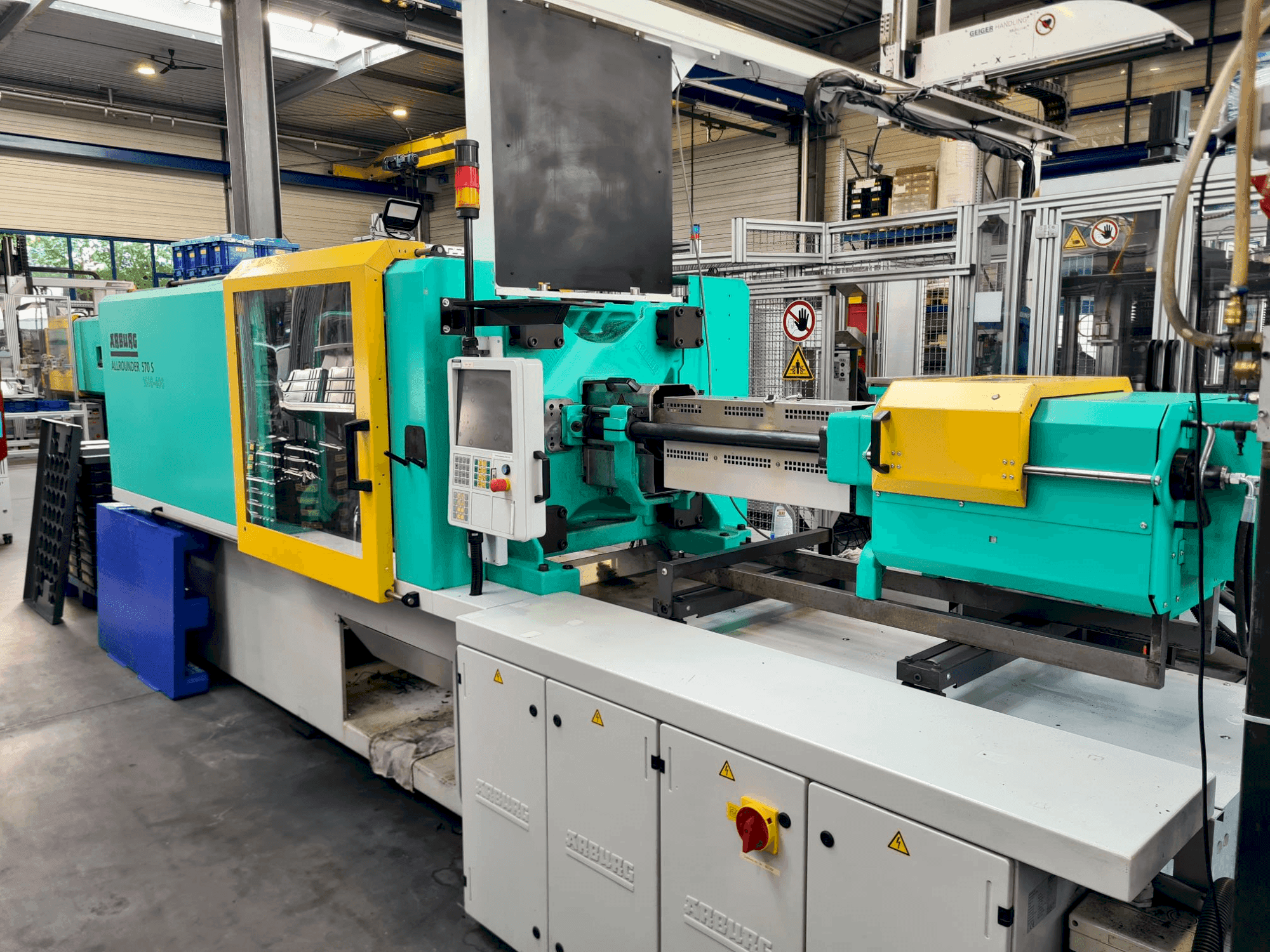

Front view of Arburg Allrounder 570S 1600-400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 570S 1600-400

Arburg - Allrounder 570S 1600-400DE-INJ-ARB-2017-00005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 570S 1600-400 | Injection Moulder

Show in original language

This Arburg Allrounder 570S 1600-400 was manufactured in 2017. A robust injection moulding machine featuring a clamping force of 1600 kN and a screw diameter of 40 mm, ensuring precise and efficient operation. It includes a Midi-Liner handling system by Geiger, enhancing its automation capabilities. Ideal for producers looking for a reliable machine with significant production capacity. For more information about this injection moulding machine, please reach out to us.

Overview

brand: Arburg
year: 2017
MODEL: Allrounder 570S 1600-400
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg Allrounder 570S 1600-400

Main drive

Main motor power: 30 kW

Injection Unit

Screw diameter: 40 mm
Stroke volume: 201 cm³
Injection pressure: 2000 bar

Clamping unit

Clamping force: 1600 kN
Opening stroke: 575 mm
Max open daylight: 1200 mm
Distance between bars: 570 x 570 mm
Mould height min: 550 mm
Size of mold platens: 795 x 795 mm

Additional equipment

- Handling equipment: Midi-Liner (Geiger)
- Robot: YASKAWA DX200
- Handling: Geiger Handling

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Oil tank capacity: 390 l

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
