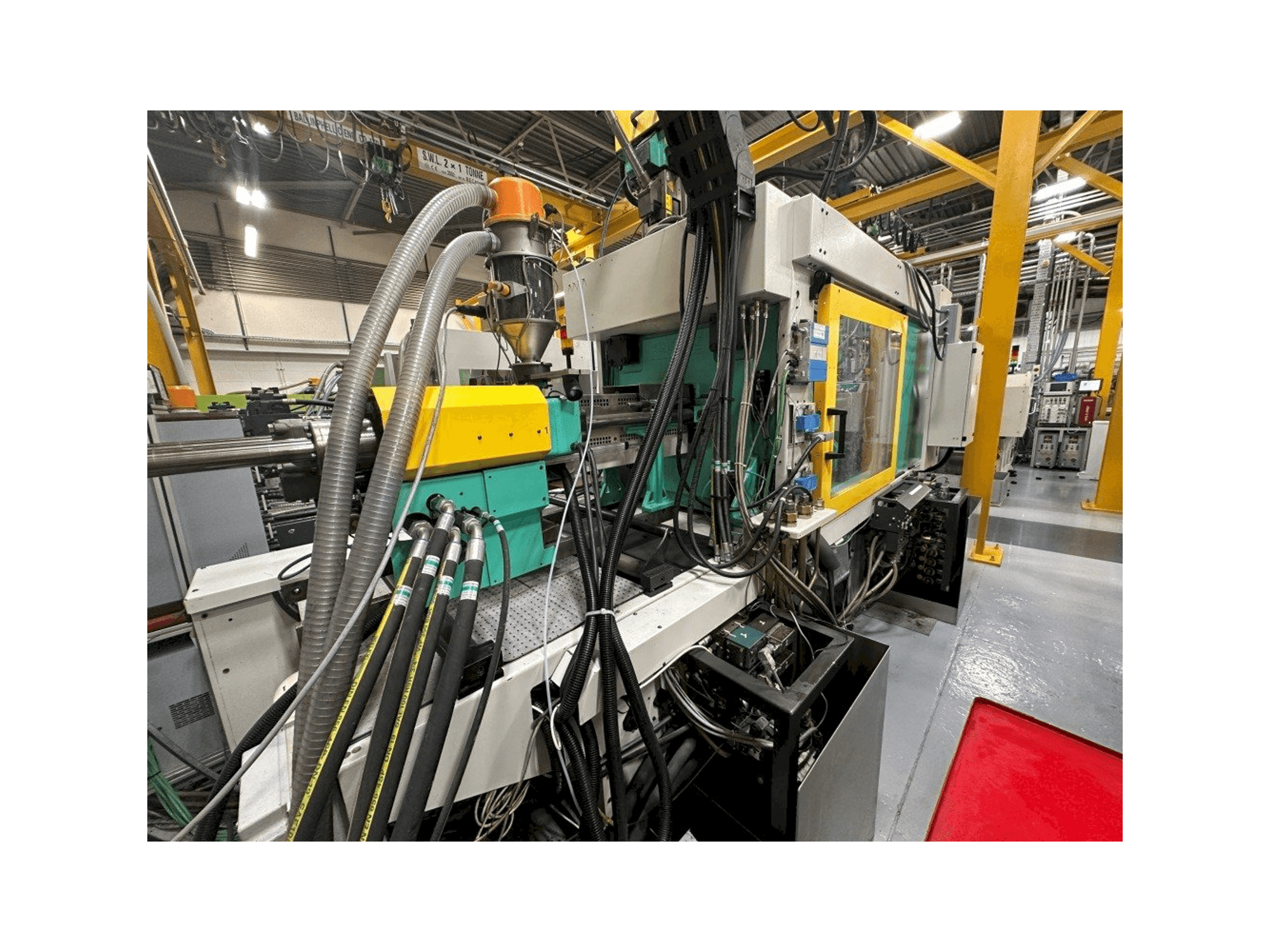

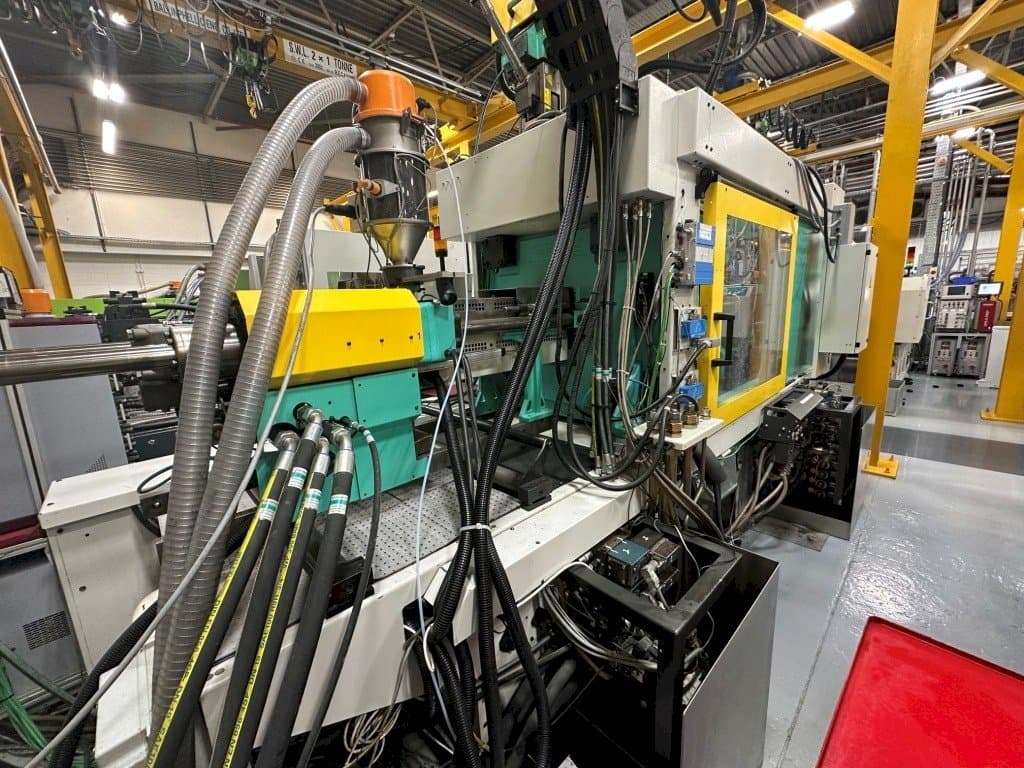

Left side view of Arburg Allrounder 570C 2000 -350/150 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 570C 2000 -350/150

Photo Gallery

Arburg - Allrounder 570C 2000 -350/150IE-INJ-ARB-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg Allrounder 570C 2000 -350/150 Injection moulding machine

Show in original language

This Arburg Allrounder 570C 2000 -350/150 Injection moulding machine was made in 2001 in Germany. It is equipped with an Arburg control unit. The machine has a clamping force of 4000 kN and a srew diameter of 40 mm, is in very good condition and well maintained.

Overview

brand: Arburg
year: 2001
MODEL: Allrounder 570C 2000 -350/150
application type: Injection Moulding
Location: Ireland
machine type: Hydraulic Injection Moulding Machine
control unit brand: ARBURG

Technical Information - Arburg Allrounder 570C 2000 -350/150

General Data

Measurements width: 5300 mm
Measurements depth: 1800 mm
Measurements height: 2400 mm
Machine weight: 8000 kg

Control Unit

CNC main language: English
CNC language customizable: Yes
Brand: ARBURG

Injection Unit

Screw diameter: 40 mm
Shot weight: 153 g/PS
Stroke volume: 182 cm³
Injection pressure: 2900 bar

Clamping unit

Clamping force: 2000 kN
Opening stroke: 650 mm
Max open daylight: 950 mm
Distance between bars: 570 mm
Mould height min: 300 mm
Size of mold platens: 795 mm
Ejector stroke: 225 mm
Ejector force for / back: 66 kN

Media

Main electronic connection: 400 V
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition
Well maintained

Technical Machine Benefits

200t machine

Machine History

Industries

Automotive industry

End product

Automotive parts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
