Arburg ALLROUNDER 570 C 2000-800 GOLDEN EDITION

Photo Gallery

Arburg - ALLROUNDER 570 C 2000-800 GOLDEN EDITIONPL-INJ-ARB-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery

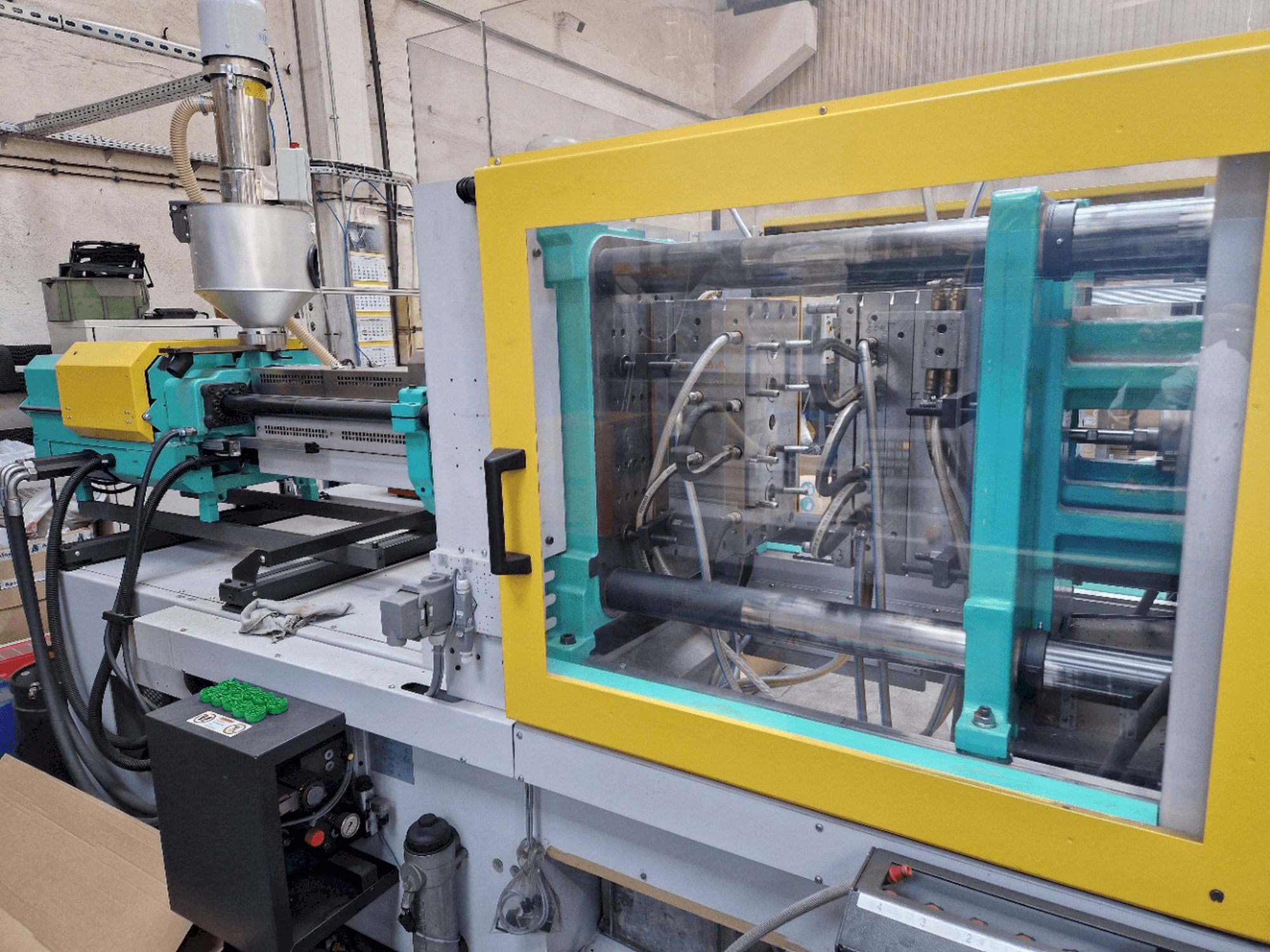

ARBURG ALLROUNDER 570 C 2000-800 GOLDEN EDITION Injection moulding machine

Show in original language

This ARBURG ALLROUNDER 570 C 2000-800 GOLDEN EDITION Injection moulding machine was manufactured in the year 2018 in Germany and has 4077 production hours. It is equipped with an ARBURG control unit. The machine has a clamping force of 2000 kN.

Overview

brand: Arburg
year: 2018
MODEL: ALLROUNDER 570 C 2000-800 GOLDEN EDITION
production hours: 4077
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
control unit brand: ARBURG

Technical Information - Arburg ALLROUNDER 570 C 2000-800 GOLDEN EDITION

Control Unit

Control Brand: ARBURG

Dimensions

Machine Depth: 1795 mm
Machine Height: 2210 mm
Machine Weight: 7450 kg

Technical Specification

Clamping Force: 2000 kN
Screw Diameter: 50 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

So-pole connection according to euromap 67, for controlling the operation of the manipulator
Authorization of service with the use of cards chip cards according to euromap 65
Connection for controlling the operation of the dye dispensing device (signal on - off)

Technical Machine Benefits

Injection capacity volume: 392 cm3
Injection capacity weight: 359 g
Screw circumferential speed: max 60 m/min
Max opening stroke: 650 mm
Mold height: 300 mm
Distance between bars: 570 x 570 mm
Platen daylight fixed: 950 mm
Platen size: 570 mm with central hole 125 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
