Arburg - Allrounder 470 S 1300-350FR-INJ-ARB-2000-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Arburg Allrounder 470 S 1300-350 Injection Moulding Machine

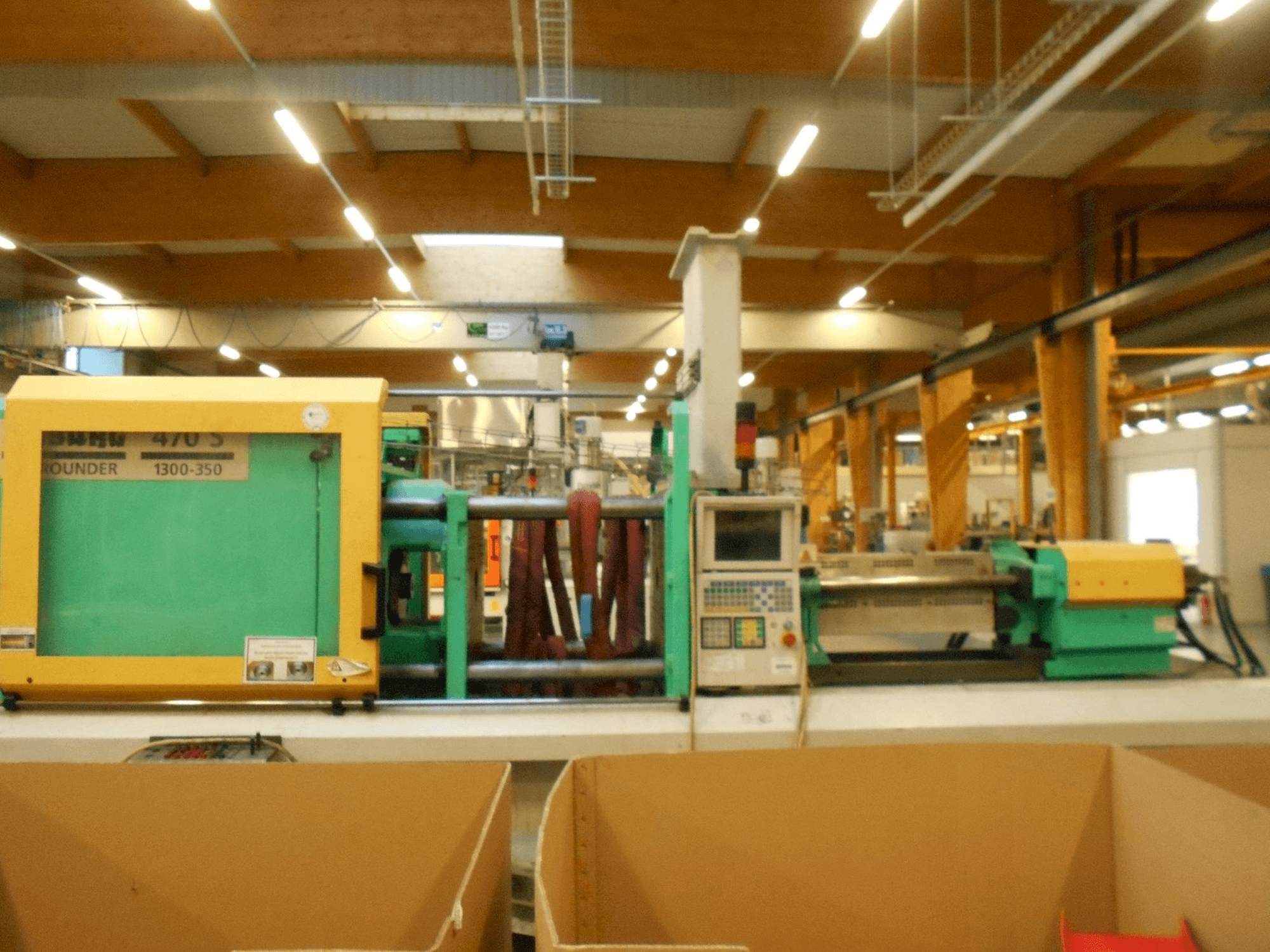

This Arburg Allrounder 470 S 1300-350 Injection Moulding Machine was built in the year 2000 in Germany. The machine has a clamping force of 1300 kN, a screw diameter of 50 mm, and new seals in the clamping unit.
Overview
- brand: Arburg
- year: 2000
- MODEL: Allrounder 470 S 1300-350
- application type: Injection Moulding
- Location: France
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Arburg Allrounder 470 S 1300-350
Injection Unit
- Screw diameter: 50 mm
- Shot weight: 117 g
- Stroke volume: 353 CM³
- Injection pressure: 2500 bar
Clamping unit
- Clamping force: 1300 kn
- Opening stroke: 575 mm
- Max open daylight: 850 mm
- Size of mold platens: 6600 x 840 mm
Additional Information
- Technical Machine Benefits:
- - Tie bar clearance: 470 x 470 mm
- Qualitative Machine Benefits:
- - New seals in clamping unit
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
