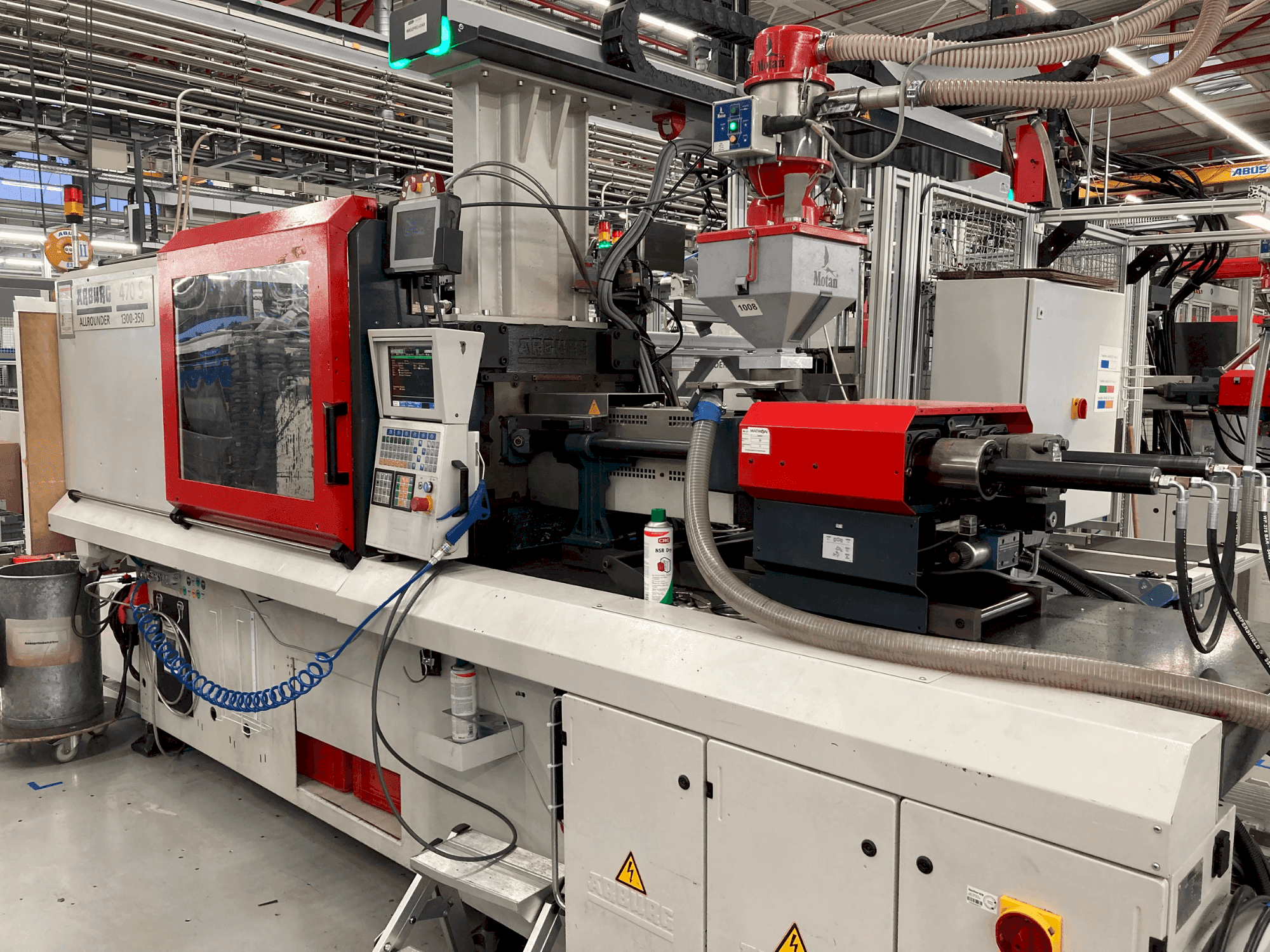

Front view of Arburg Allrounder 470 S 1300-350 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 470 S 1300-350

Photo Gallery

Arburg - Allrounder 470 S 1300-350DE-INJ-ARB-2001-00010

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 470 S 1300-350 For Sale

Show in original language

This Arburg Allrounder 470 S 1300-350 was manufactured in 2001. It is a hydraulic injection moulding machine, ideal for precision plastic processing. Consider the opportunity to buy this Arburg Allrounder 470 S 1300-350 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Arburg
year: 2001
MODEL: Allrounder 470 S 1300-350
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg Allrounder 470 S 1300-350

General Data

Measurements width: 3900 MM
Measurements depth: 6100 MM

Injection Unit

Screw diameter: 35 mm
Stroke volume: 139 ccm CM³
Injection pressure: 2500 bar

Clamping unit

Clamping force: 1300 kn

Additional equipment

- Picker: Wittmann W832PRO-0349
- Temperature Control Units: 3x HB-Therm Thermo 5
- Robot Payload: 30 kg
- Thermolator Max Temperature: 160°C
- Series: Serie 5
- Interface Coloring Device: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Aggregate 1 size: 350
- - Number of hydraulic core pulls (fixed side): 1
- - Temperature sensor (mold): yes
- - Robot axes: x, y, z, c, b
- - Conveyor system: tray, 2 lanes, direction: lengthwise
- - Valve gate number: 1
- - Hk control points: 6 (3)
- - Quick coupling: qca90
- - Communication connector: double sub-d
- - Robot vacuum circles: 6
Qualitative Machine Benefits:
- - Robot gripper circles: 5
- - Oil filling quantity: 250 liters

Extra information

- The conveyor belt is a double-track tray conveyor with 3 stop bars on each side Robot Payload [kg]: 20 -robot travel paths are X-900, Y-1200, and Z-2500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
