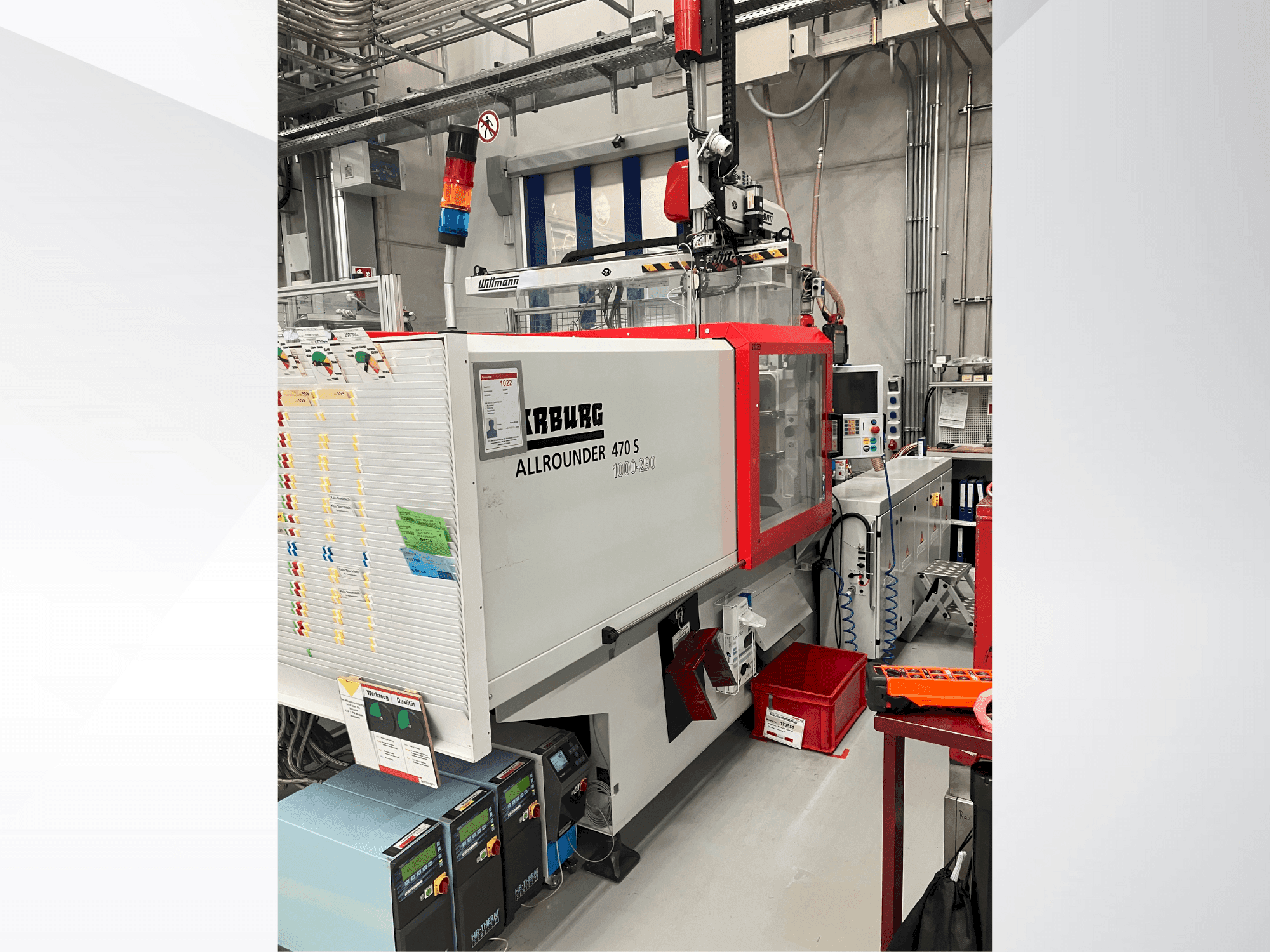

Front view of Arburg Allrounder 470 S 1000-290  machine

Arburg - Allrounder 470 S 1000-290DE-INJ-ARB-2017-00007

Rs. 4,535,300
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Arburg Allrounder 470 S 1000-290 was manufactured in 2017. It's a hydraulic injection moulding machine, ideal for precision plastic processing. Consider the opportunity to buy this Arburg Allrounder 470 S 1000-290 hydraulic injection moulding machine. Contact us for more information.

Overview

  • brand: Arburg
  • year: 2017
  • MODEL: Allrounder 470 S 1000-290
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • availability: 01 07 2025
  • control unit brand: Selogica direkt

Technical Information - Arburg Allrounder 470 S 1000-290

General Data

  • Measurements width: 2650 mm
  • Measurements depth: 4900 mm

Control Unit

  • Brand: Selogica direkt

Injection Unit

  • Screw diameter: 30 mm
  • Stroke volume: 106 cm CM³
  • Injection pressure: 2500 bar

Clamping unit

  • Clamping force: 100 kN
  • Distance between bars: 470 mm

    Additional equipment

    • - Plus Peripherals: Robot / 3x Temperature Control Unit / 1x Temperature Control Unit

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Tonnage: 100 tons
        • - Operating voltage: 50 / control voltage: 24
        • - Motor-heating rated current: 148/88 a
        • - Total connected load: 133
        • - Language options: german
        • - Maximum opening: 509 mm / maximum plate distance: 959 mm / maximum ejector length: 175 mm
        • - Coupling diameter: 32 mm / center ring diameter: 125 mm / valve gate: 2 / hk control points: 12 (3)
        • - Number of hydraulic core pulls (fixed side): 1 / number of hydraulic core pulls (moving side): 1

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
