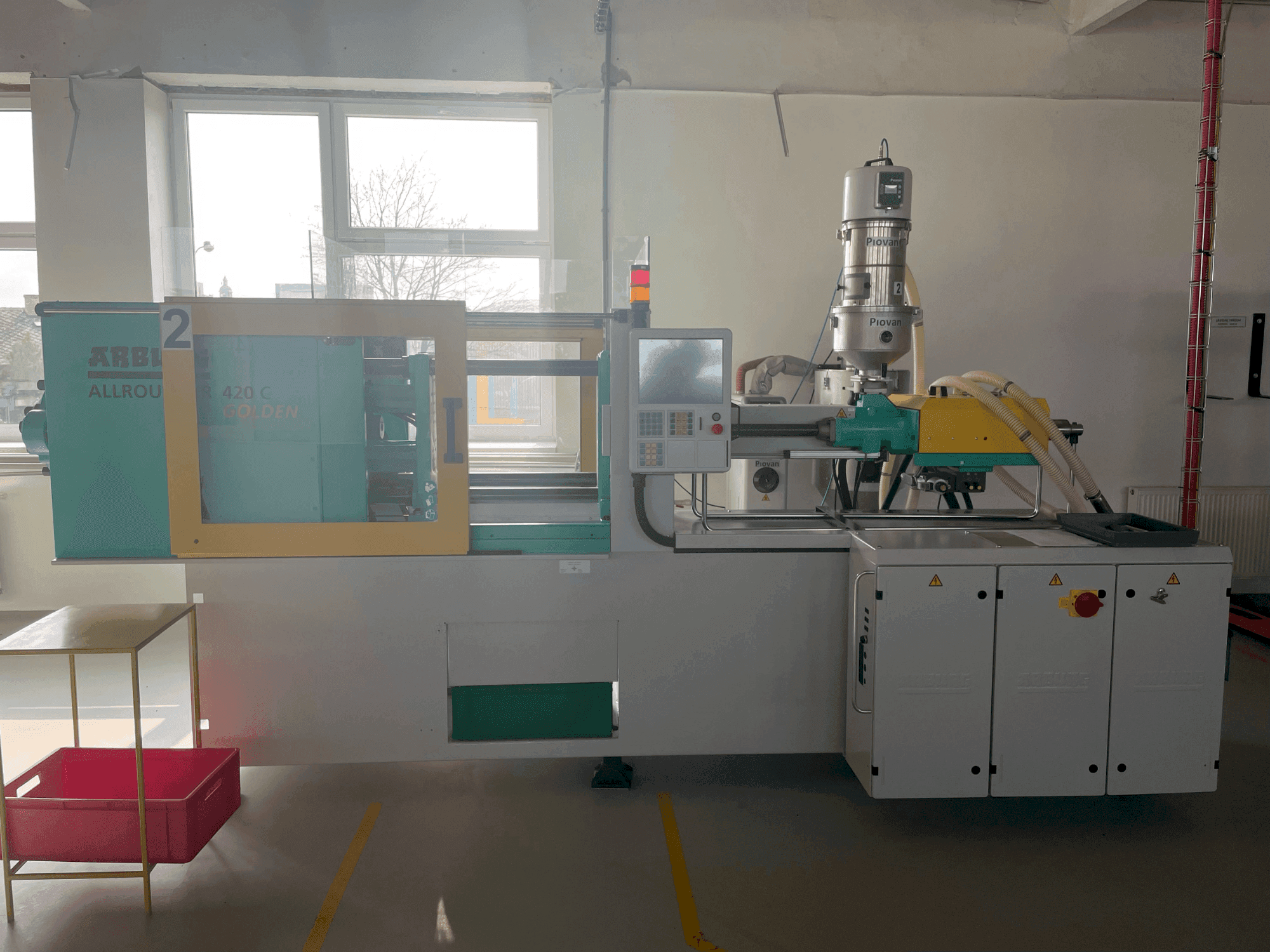

Front view of Arburg Allrounder 420C 1000-290 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 420C 1000-290

Arburg - Allrounder 420C 1000-290CZ-INJ-ARB-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
ARBURG Allrounder 420C 1000-290 Injection moulding machines

Show in original language

This ARBURG Allrounder 420C 1000-290 Injection moulding machines machine was manufactured in 2018 in Germany. It has a clamping force of 1000 kN, a screw diameter of 35mm, an opening stroke of 500 mm and an ejector force of 40 kN. This injection moulding machine is like new as only used for test operations. In total it has only 220 pump hours. In addition to the machine there is additional equipment available for extra charge: Dryer T50, Tempering unit THW9 and Granulate suction assembly. See tech specs as PDF (EN) attached (scroll down to access the document). See tech specs as PDF (EN) attached (scroll down to access the document).

Overview

brand: Arburg
year: 2018
MODEL: Allrounder 420C 1000-290
production hours: 220
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg Allrounder 420C 1000-290

Injection Unit

Screw diameter: 35 mm
Shot weight: 132 g/PS
Stroke volume: 144 CM³
Injection pressure: 2000 bar
Adjustable heating zones: 5

Clamping unit

Clamping force: 1000 KN
Opening stroke: 500 mm
Max open daylight: 750 mm
Distance between bars: 420x420 mm
Size of mold platens: 570x570 mm
Ejector stroke: 175 mm
Ejector force for / back: 40 kN

Additional equipment

- Dryer T75 C56 (available for extra charge)
- Tempering unit THW9 C57 (available for extra charge)
- GRANULATE SUCTION ASSEMBLY C58 (available for extra charge)

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Very low hours, used for testing only!
- - Pump hours 220

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

ARBURG_ALLROUNDER_420C_GOLDEN_EDITION_TD_523677_en_GB.pdf
