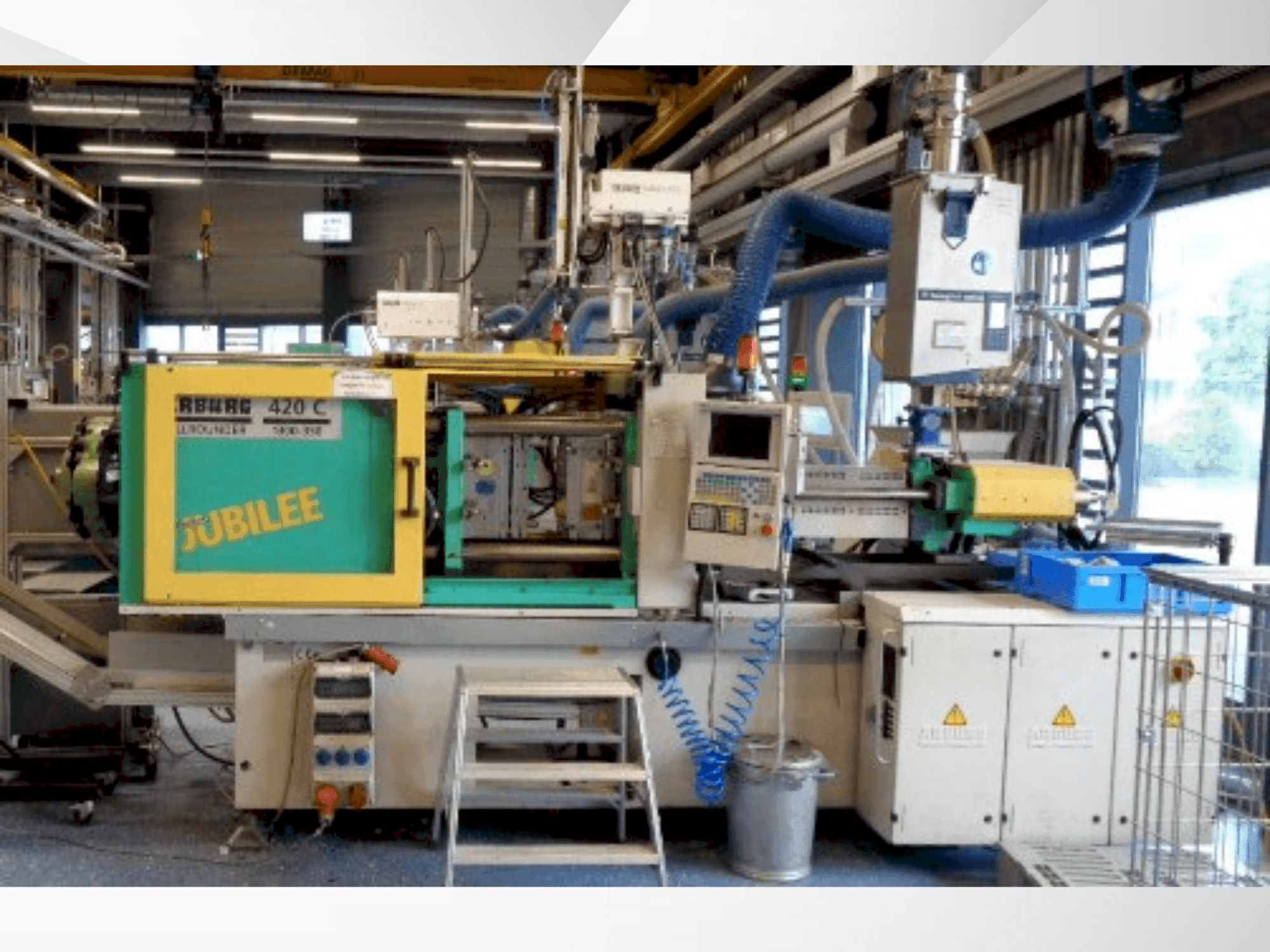

Front view of Arburg Allrounder 420 C 1300-350  machine

Arburg Allrounder 420 C 1300-350

Arburg - Allrounder 420 C 1300-350

1998

Rs. 533,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Arburg Allrounder 420 C 1300-350 injection moulding machine was manufactured in 1998. It features a clamping force of 1300 kN and offers screw diameters of 35, 40, and 45 mm, allowing versatile moulding capabilities. The machine includes a Schuma conveyor belt and optional Geiger Handling, enhancing operational efficiency. With a robust design and substantial injection pressures, it's ideal for precise plastics processing. Consider the Arburg Allrounder machine we have for sale. Contact us for more information.

Overview

  • brand: Arburg
  • year: 1998
  • MODEL: Allrounder 420 C 1300-350
  • production hours: 89000
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Injection Moulding Machine
  • availability: Immediately
  • GINDUMAC ID: DE-INJ-ARB-1998-00002

Technical Information

General Data

  • Measurements width: 1600 MM
  • Measurements depth: 4350 MM
  • Measurements height: 1800 MM
  • Machine weight: 4500 KG

Injection Unit

  • Screw diameter: 35/40/45 mm
  • Shot weight: 27/166/210 g
  • Injection pressure: 2500 / 2120 / 1670 bar

Clamping unit

  • Clamping force: 1300 kn
  • Opening stroke: 500 mm
  • Distance between bars: 420 x 420 mm
  • Mould height min: 250 mm

    Additional equipment

    • - Schuma conveyor belt
    • - Geiger Handling
    • - Optional: carousel and temperature control units

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum distance between mould mounting platens: 750 mm
        • - Versatile injection units, high injection pressures
      • Qualitative Machine Benefits:
        • - Robust design, precise mold alignment

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
