➤ Used Arburg Allrounder 320 U 500-150 For Sale

Show in original language

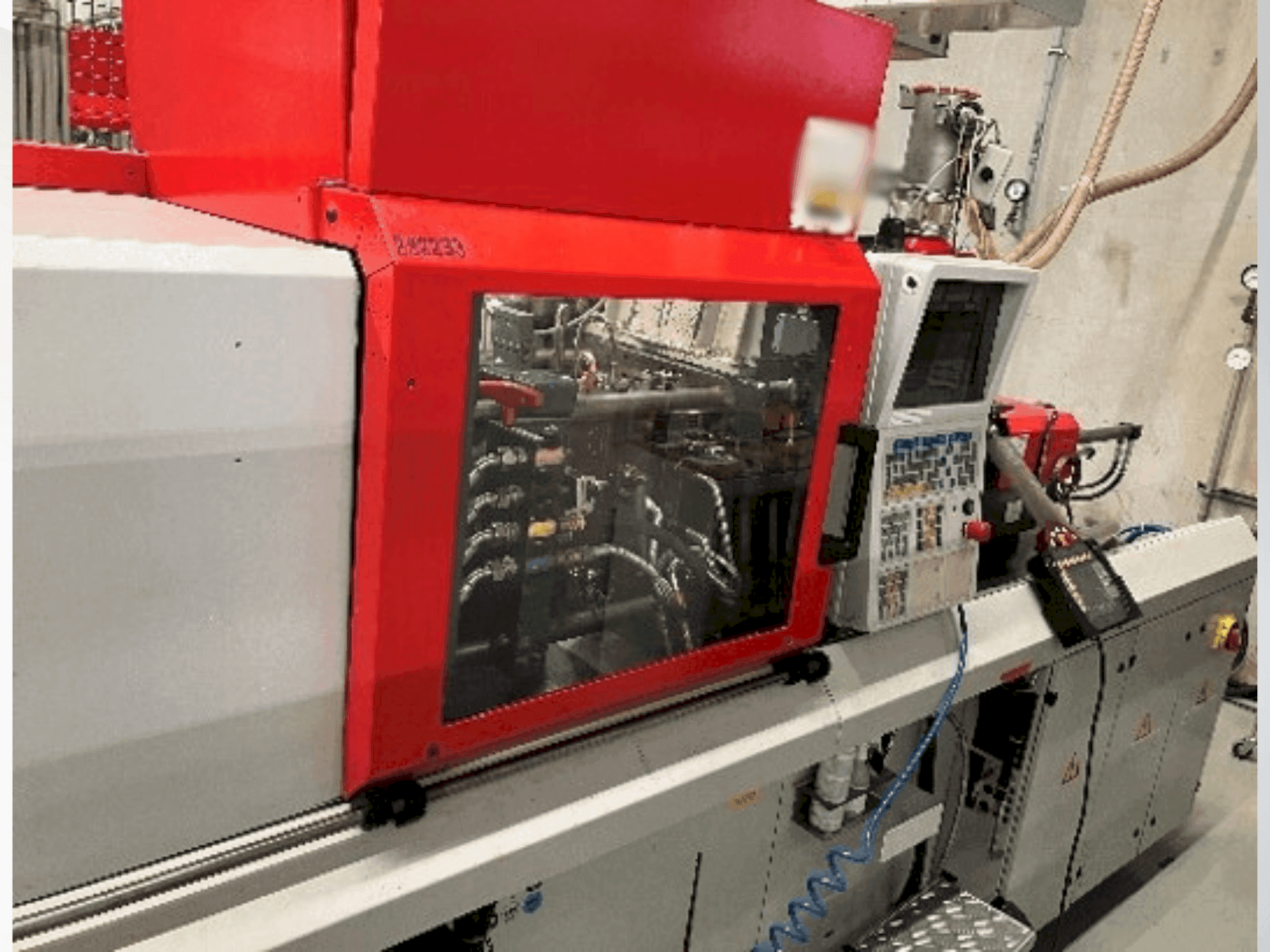

This Arburg Allrounder 320 U 500-150 was manufactured in 2001. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing. Consider the opportunity to buy this Arburg Allrounder 320 U 500-150 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Arburg
year: 2001
MODEL: Allrounder 320 U 500-150
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
Available from: 01/10/2025

Technical Information - Arburg Allrounder 320 U 500-150

General Data

Measurements width: 2300 MM
Measurements depth: 4500 MM

Injection Unit

Screw diameter: 30 mm
Stroke volume: 77 ccm CM³
Injection pressure: 2210 bar

Clamping unit

Clamping force: 50 kn
Opening stroke: 354 mm
Mould height max: 223 mm
Ejector stroke: 125 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tie bar distance: 320 mm
- - Maximum plate distance: 577 mm
- - Coupling diameter: 24 mm
- - Center ring diameter: 125 mm
- - Robot: type w721, quick coupling qca90 (1), communication connector 9-pol, robot vacuum circles 2, robot gripper circles 3, robot axes x, y, z, c, b.
- - Temperature control units: temperature control unit 2 at 100 °c, temperature control unit 3 at 100 °c, number of thermolators 2, serie 4, type of controller intern, temperature sensor (mold) yes (1
- - Area: 10. 35 m²
- - Oil filling quantity: 120 l
- - Cable cross-section: 5x50 mm²
- - Water connection: size 3/4 inch, number of points 2x2
Qualitative Machine Benefits:
- - Valve gate (number): 1
- - Hk control points: 6 (measuring points: 3)
- - Internal pressure: 1
- - Number of hydraulic core pulls (moving side): 1
- - Cold water cycles max: fixed site: 1, moving site: 1
- - Includes extraction wittmann w721-0132
- - 2x temperature control unit hb-therm series 4

Extra information

- Travel paths: X-550, Y-1200, and Z-1500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
