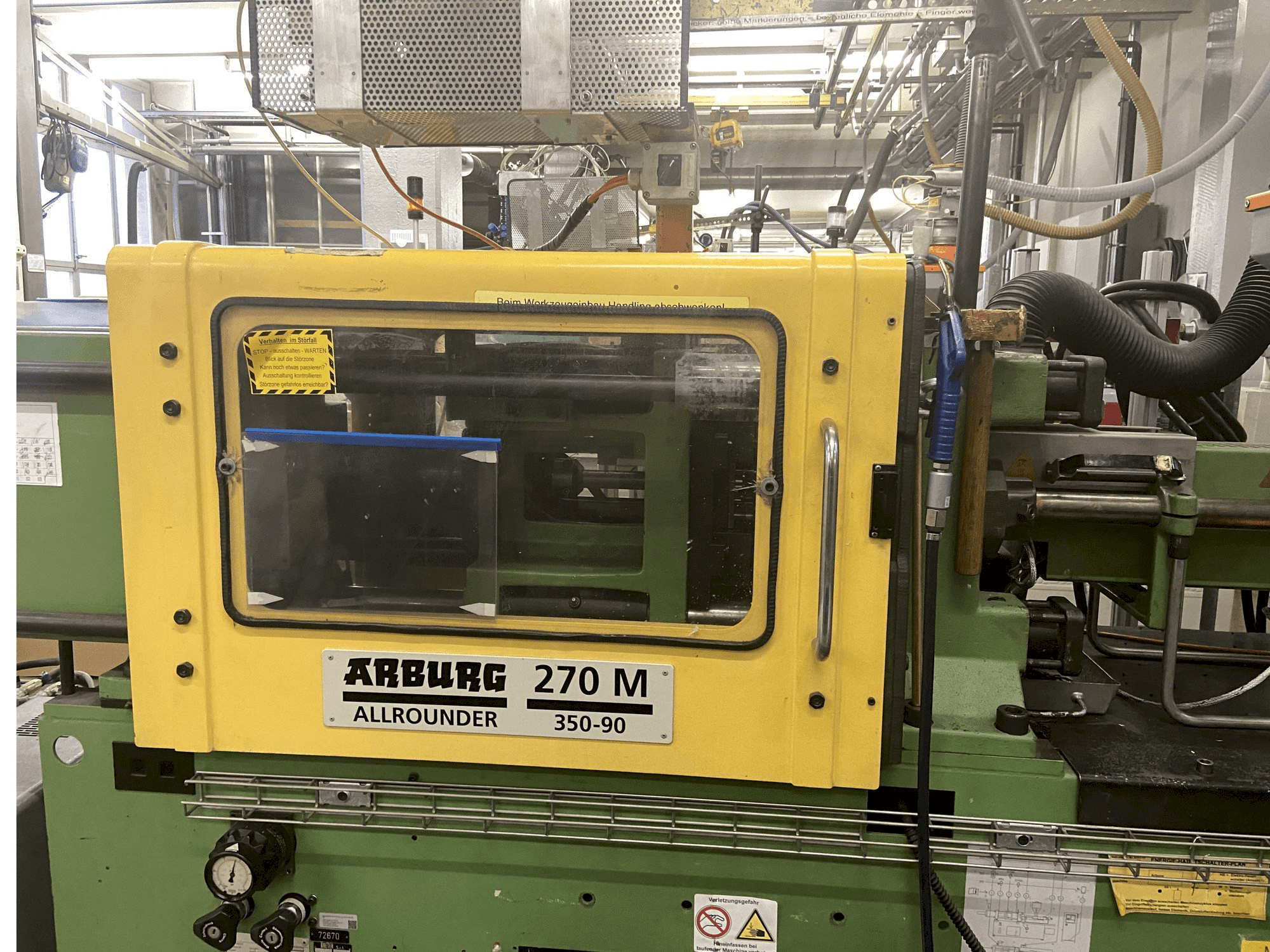

Front view of Arburg ALLROUNDER 270 M 350 - 90 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg ALLROUNDER 270 M 350 - 90

Arburg - ALLROUNDER 270 M 350 - 90CH-INJ-ARB-1996-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg ALLROUNDER 270 M 350 - 90

Show in original language

This Arburg ALLROUNDER 270 M 350 - 90 injection moulding machine was manufactured in the year 1996 in Germany. It operates with an ARBURG MULTRONICA control unit. It has 54355 production hours. This machine can perform with a clamping force 350 kN, and a screw diameter 25 mm.

Overview

brand: Arburg
year: 1996
MODEL: ALLROUNDER 270 M 350 - 90
production hours: 54355
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg ALLROUNDER 270 M 350 - 90

General Data

Measurements width: 3300 mm
Measurements depth: 1200 mm
Measurements height: 1500 mm
Machine weight: 1800 Kg

Control Unit

Model: MULTRONICA
Brand: ARBURG

Injection Unit

Screw diameter: 25 mm
Shot weight: 35,7 G/PS
Stroke volume: 39 CM³
Heating capacity: 4.6 kW

Clamping unit

Clamping force: 350 kN

Media

Main electronic connection: 400 V 3 - 50 Hz
Pump drive power: 1 X 11.00 kW
Power consumption: 15.6 kW

Additional equipment

- Temperature devices (additional cost)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tie bar spacing (h) 270 mm
- - Tie bar spacing (v) 270 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
