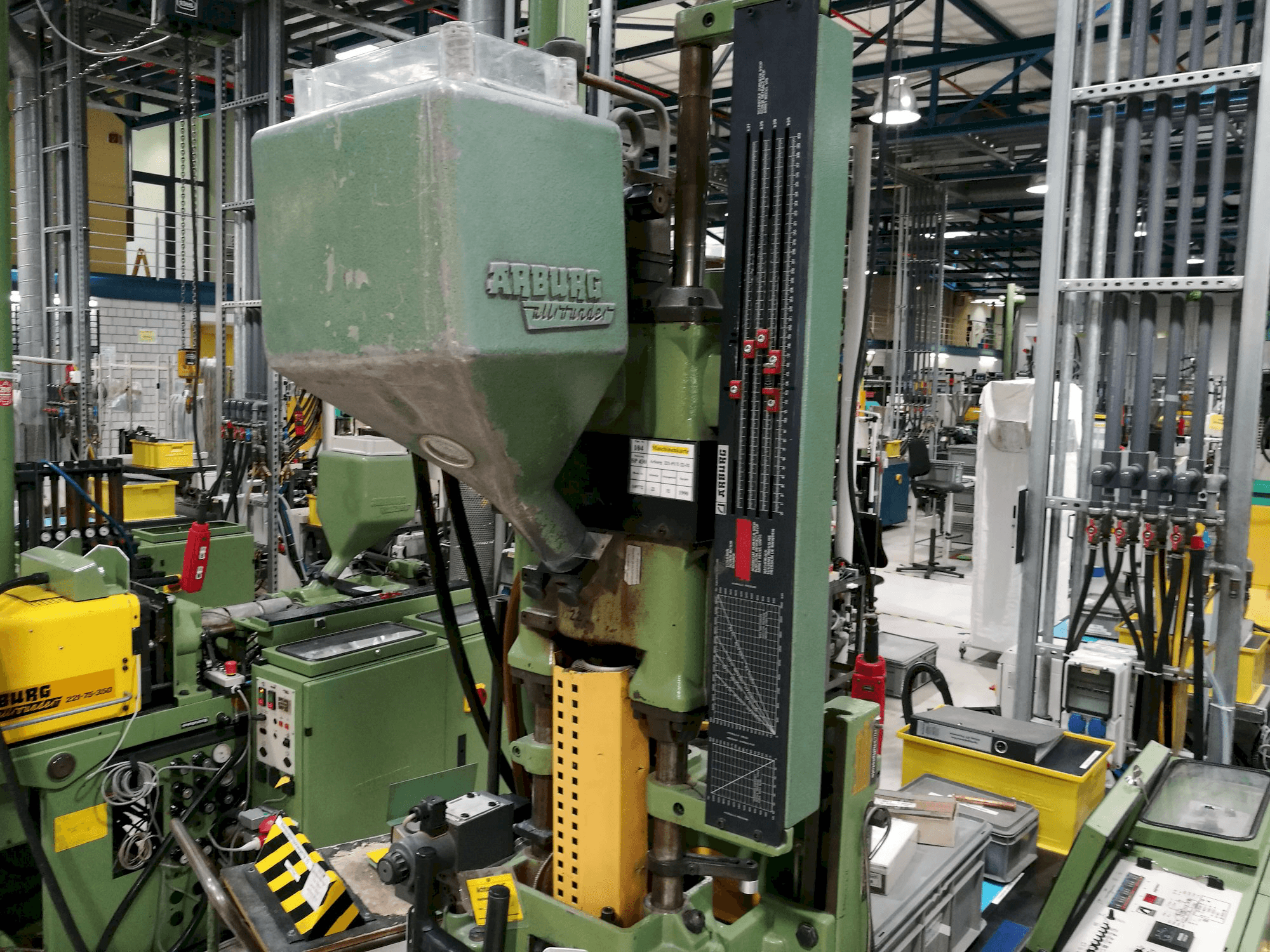

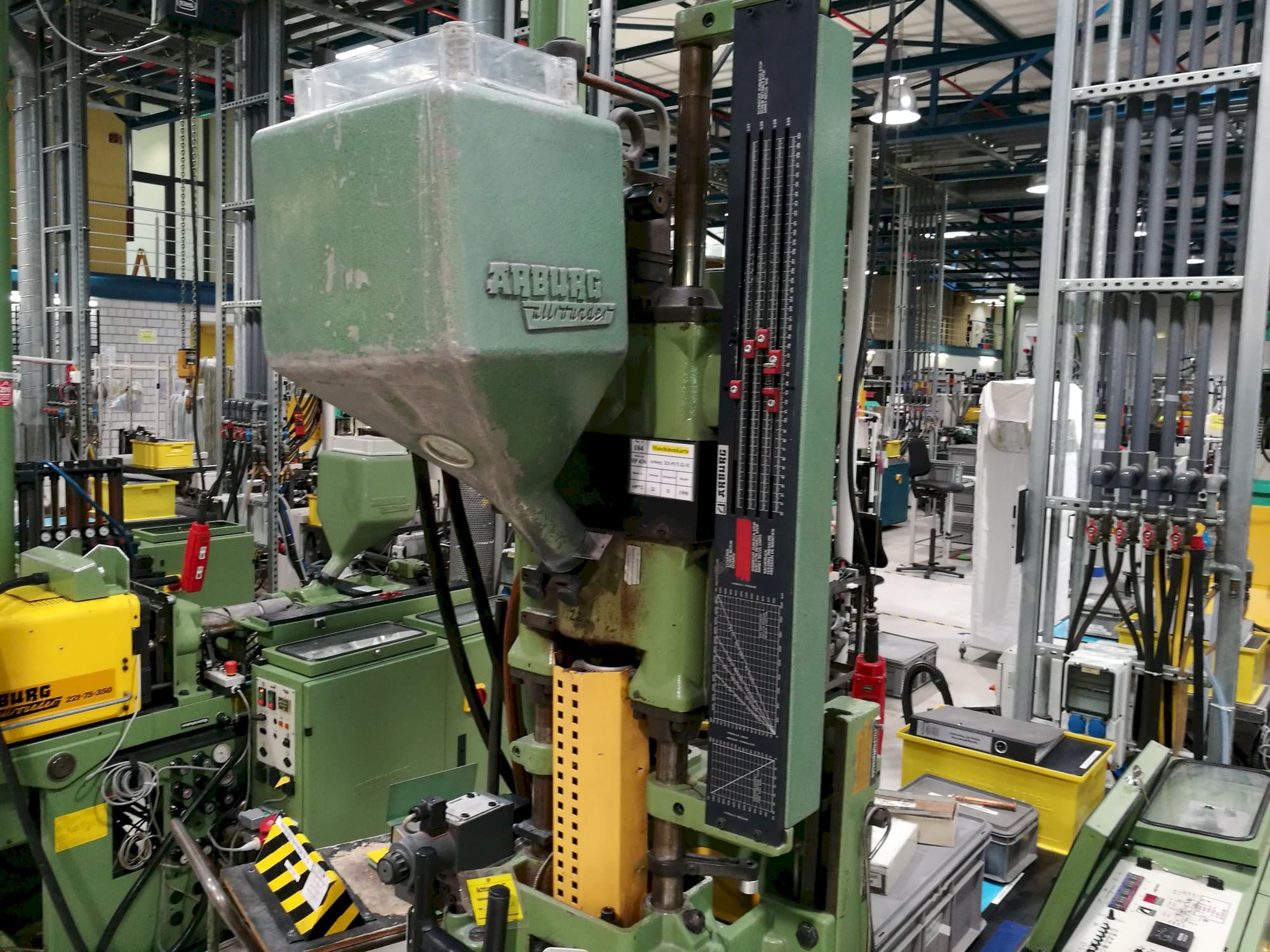

This Arburg Allrounder 221-75-350 Injection Moulding Machine from Germany was made in 1990 and counts with 21267 working hours. Operated through an Arburg Polytronica Control unit, this machine offers a clamping force of 350 kN.
Overview
- brand: Arburg
- year: 1990
- MODEL: Allrounder 221-75-350
- production hours: 21267
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machine
- availability: Sold
- control unit brand: Arburg
- GINDUMAC ID: DE-INJ-ARB-1990-00001
Technical Information
General Data
- Measurements width: 2700 mm
- Measurements depth: 1200 mm
- Measurements height: 2100 mm
- Machine weight: 970 kg
Control Unit
- Brand: Arburg
- Model: Polytronica
- CNC main language: German
Injection Unit
- Screw diameter: 22 mm
- Stroke volume: 38 cm³
- Injection pressure: 1570 bar
- Screw speed: 400 rpm
- Heating capacity: 3,46 kW
- Nozzle pressure: 50kN
Clamping unit
- Clamping force: 350 kN
- Opening stroke: 200 mm
- Max open daylight: 475 mm
- Distance between bars: 221 mm
- Mould height min: 150 mm
- Mould height max: 300 mm
- Size of mold platens: 346 mm
- Ejector stroke: 100 mm
- Ejector force for / back: 17 kN
Media
- Main electronic connection: 380 V
- Power consumption: 11 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
