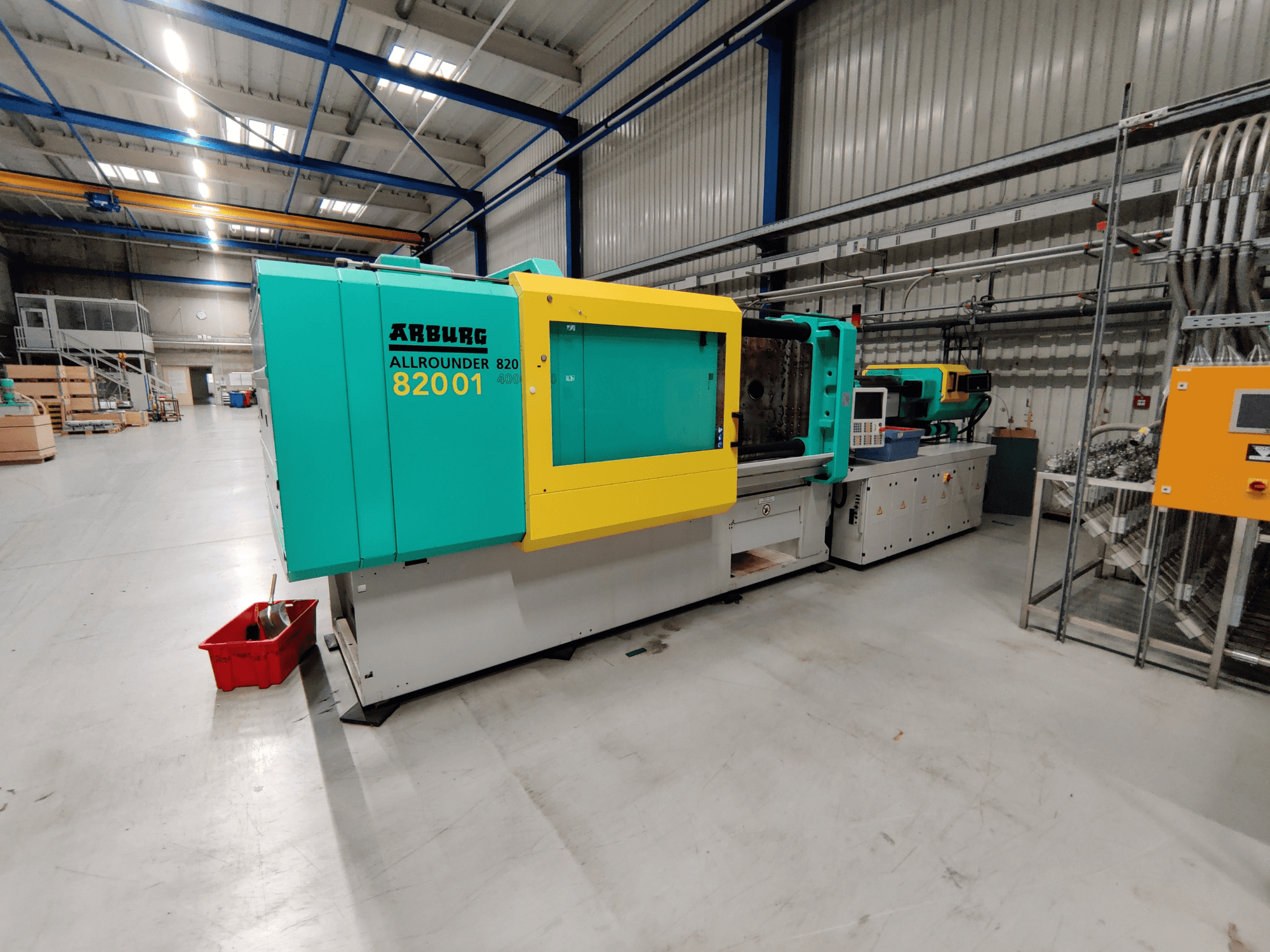

Arburg - 820 S 4000-2100DE-INJ-ARB-2016-00008

• Control system: SELOGICA direct

• Distance between tie bars: 820 x 820 mm

• Platen size: 1171 x 1171 mm

• Max. mould installation height: 850 mm

• Max. opening stroke: 700 mm

• Max. daylight: 1550 mm

• Ejector force: 100 kN

• Ejector stroke: 250 mm

• Max. weight of movable mould half: 4500 kg

• Injection unit: 2100

• Heating zones: 6 + nozzle

• Drive power (hydraulic pump): approx. 55 kW

• Total installed power: 88.9–96.2 kW

• Total connected load: 124 kW

• Operating voltage: 400 V 3~ 50 Hz

• Machine cycles: 4,157,591

• Pump hours: 69,800 h

• Automatic operation hours: 58,556 h

• working hours 33,255h

• Machine options: 2x core pulls, AES Energy Saving System

Additional equipment

• ARBURG Multilift Select 15 kg robot (2016, transverse)

  • Load capacity: 15 kg

  • Y-axis stroke extension: 1400 mm

  • C-axis: pneumatic 0/90°, 28 Nm torque

  • Vacuum equipment: 2 circuits (23 l/min each)

  • Gripper interface: 8 inputs / 4 outputs (programmable)

  • Valve equipment: 5/3-way valve

  • Safety: monitored adjustable workspace

• Conveyor belt: 800 x 2500 mm

• Air blow unit

• Srew diamter 70mm
