Arburg - 820 S 4000 - 2100DE-INJ-ARB-2016-00005
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Arburg 820 S 4000 - 2100 For Sale | gindumac.com

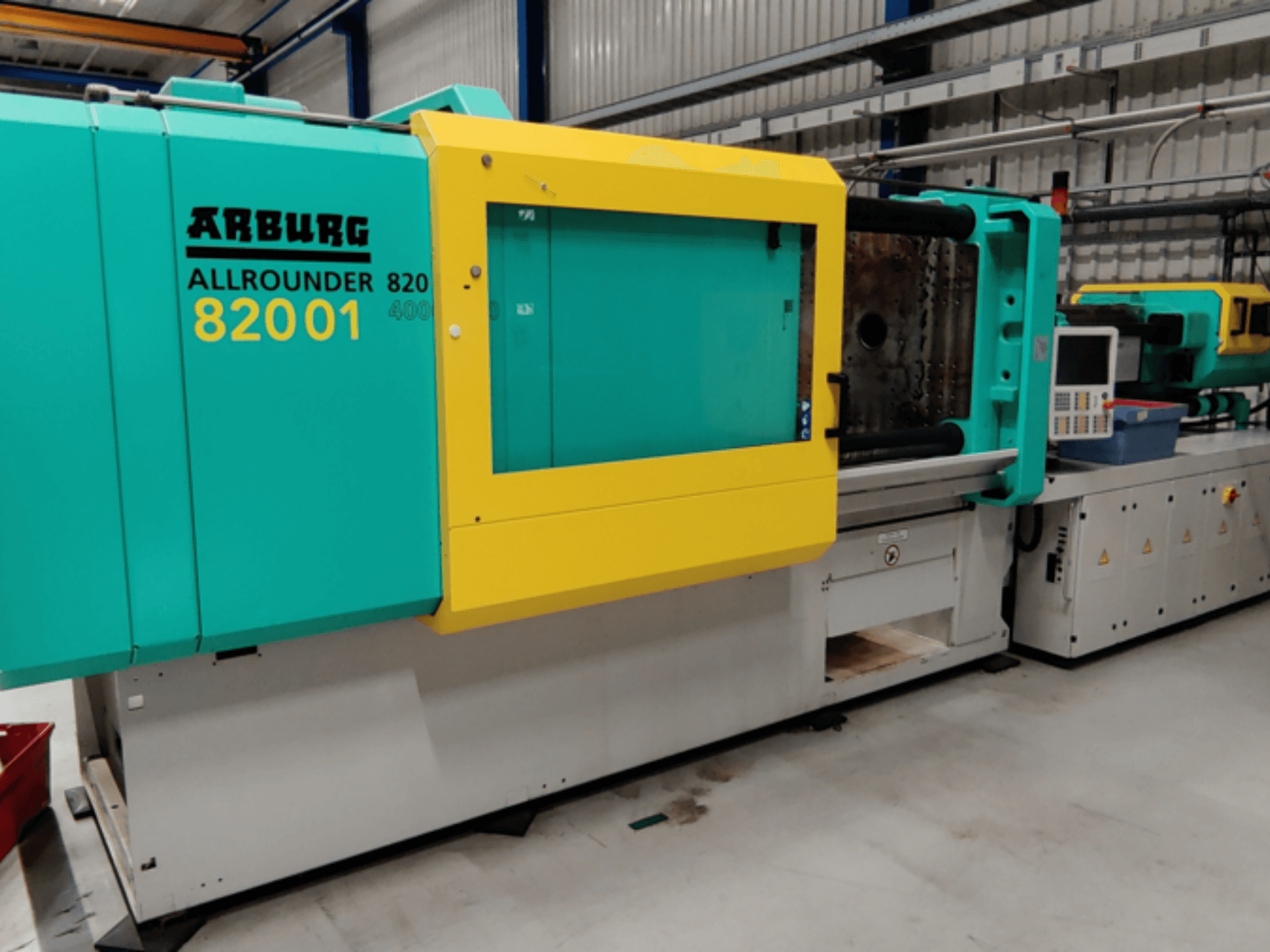

This Arburg 820 S 4000 - 2100 was manufactured in 2016. It features a clamping force of 4000 kN, a screw diameter of 60-100 mm, and a shot weight up to 1860 g. The machine is equipped with a SEPRO SR AXESS 30 S3 robot and has a hydraulic pump drive power of 55 kW. Ideal for precision in plastic injection molding. Contact us for more information about this machine.
Overview
- brand: Arburg
- year: 2016
- MODEL: 820 S 4000 - 2100
- production hours: 37049
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Arburg 820 S 4000 - 2100
Dimensions
- Machine Weight: 21000 kg
Technical Specification
- Clamping Force: 4000 kN
Additional Information
Clamping unit
Locking force (max.): 150 kN
Opening force (max.): 100 kN / increased: 800 kN
Opening stroke (max.): 700 mm
Mold height (min.): 350 mm
Distance between platens (max.): 1050–1550 mm
Clear tie bar distance: 820 × 820 mm
Mold mounting platens (W × H): 1171 × 1171 mm
Mold half weight (max.): 4500 kg
Ejector force (max.): 100 kN
Ejector stroke (max.): 250 mm
Hydraulics / drive / miscellaneous
Hydraulic pump drive power: 55 kW
Installed total power:
4000-2100: 88.9 kW
4000-3200: 96.2 kW
Color: Plastic-coated structure (light gray / mint green / rapeseed yellow)
Control cabinets: Safety regulation DIN EN 60204
Socket combination: 1 Schuko + 1 Cekon
Injection unit power supply: 1 × 16 A
Injection unit
Effective screw length (L/D): 23/20/17.5 | 70/80/90 | 23/20/18
Screw diameter (mm): 60/65/70 | 80/90/100 | 60/65/70
Theoretical shot volume (max., cm³): 792/1078/1407 | 2513/3462/4240 | 1132/1608/2036
Shot weight (max., g PS): 293/384/1826 | 1255/1469/1860 | 820/1167/1477
Injection pressure (max., bar): 2500/2000/1530 | 2500/1500/1200 | 2500/2000/1530
Injection flow rate (max., cm³/s): 294/362/400 | 812/1030/1250 | 312/396/440
Injection flow rate with accumulator (max., cm³/s): 354/450/502 | 1188/1552/1964 | 375/475/528
Back pressure positive/negative (max., bar): 350/50 | 350/50 | 350/50
Screw circumferential speed (max., m/s): 0.38 | 0.28 | 0.28
Screw torque (max., Nm): 2057/2247/2247 | 6757/80 | 2057/2247/2247
Nozzle contact force (max.): 110 kN
Nozzle stroke (max.): 600 mm
Heating zones / heating capacity: 6 × 4500 + 3300 | 6 × 5500 + 4300
Installed nozzle heating: 1000 W | 1250 W
Dimensions and weights (base machine)
Clearance length: 490 mm
Electrical connection (fuse protection) motor + heating: 250 A
Electrical connection (fuse protection) motor: 125 A
Electrical connection (fuse protection) heating: 50 / 63 A
Additional equipment
SEPRO SR AXESS 30 S3 robot (2008)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
