ARBURG 470C 1500-675 Injection moulding machine

Show in original language

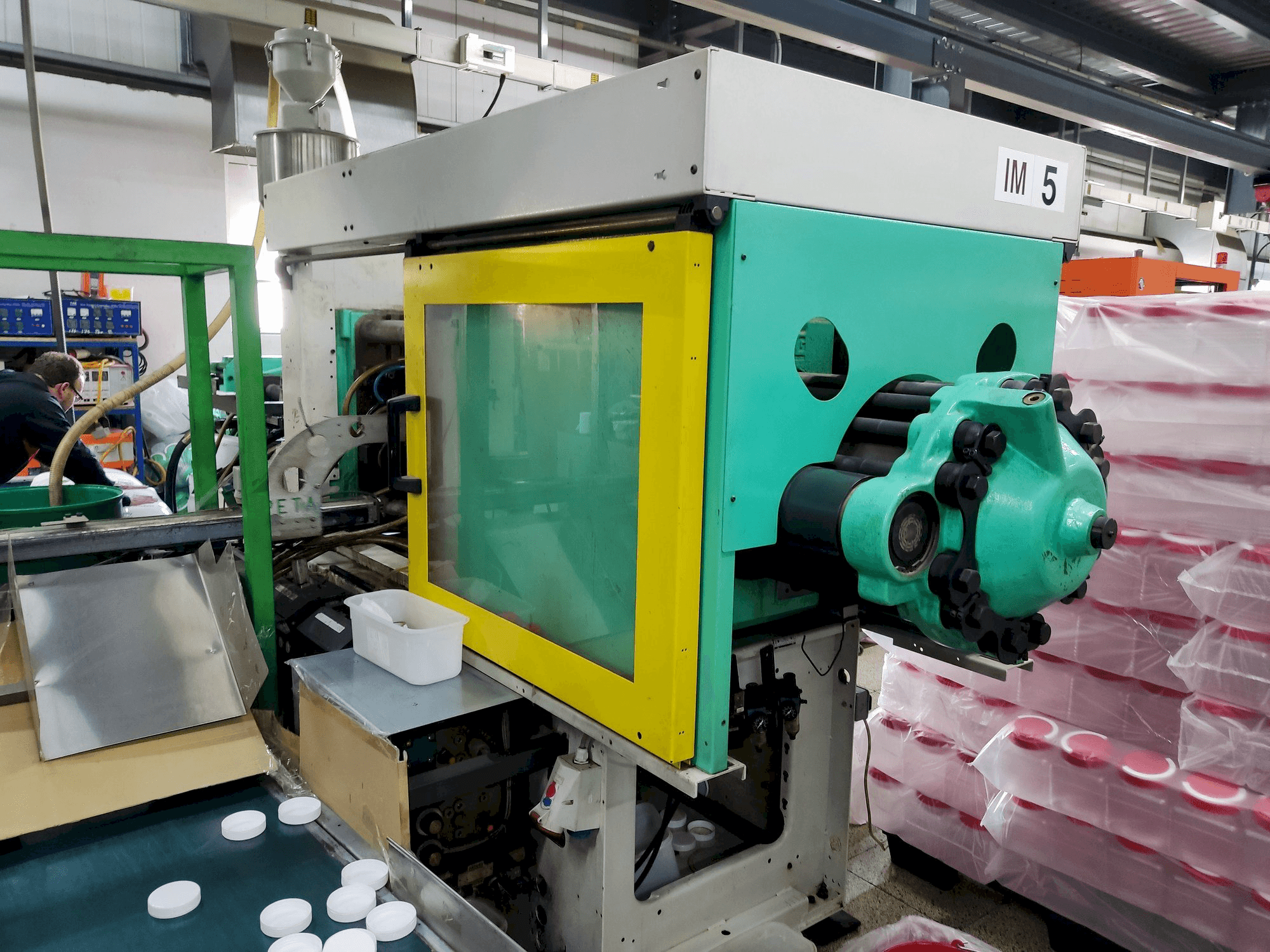

This ARBURG 470C 1500-675 Injection moulding machine was manufactured in the year 2003 in Germany. The machine has clamping force of 1500 kN, a Opening stroke max. of 500 mm and a Mould height of min 250 mm.

Overview

brand: Arburg
year: 2003
MODEL: 470C 1500-675
application type: Injection Moulding
Location: Cyprus
machine type: Injection Moulding Machine
availability: Immediately
GINDUMAC ID: CY-INJ-ARB-2003-00001

Technical Information

Clamping unit

Clamping force: 1500 kN
Opening stroke: 500 mm
Distance between bars: 470x470 mm
Mould height min: 250 mm
Ejector stroke: 175 mm
Ejector force for / back: 40 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Opening force / increased max: 35/350 kn
- - Distance between clamping platens: max. 750 mm
- - Mould clamping platens (w x h): 650x650 mm
- - Weight of m oving mould half: 1000 kg
- - Hydraulics, drive, general
- - Drive capacity of hydraulic pump: 30 kw
- - Dry cycle time for opening stroke: 2,4-329 s-mm
- - Total connected load: 46,3 : kw
- - Colour: plastic coating structure light grey / mint green / canary yellow
- - Control cabinet
Qualitative Machine Benefits:
- - Safety standard acc. To: din en 60204
- - Socket combination (1 single-phase, 1 three-phase): 1x16a

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
