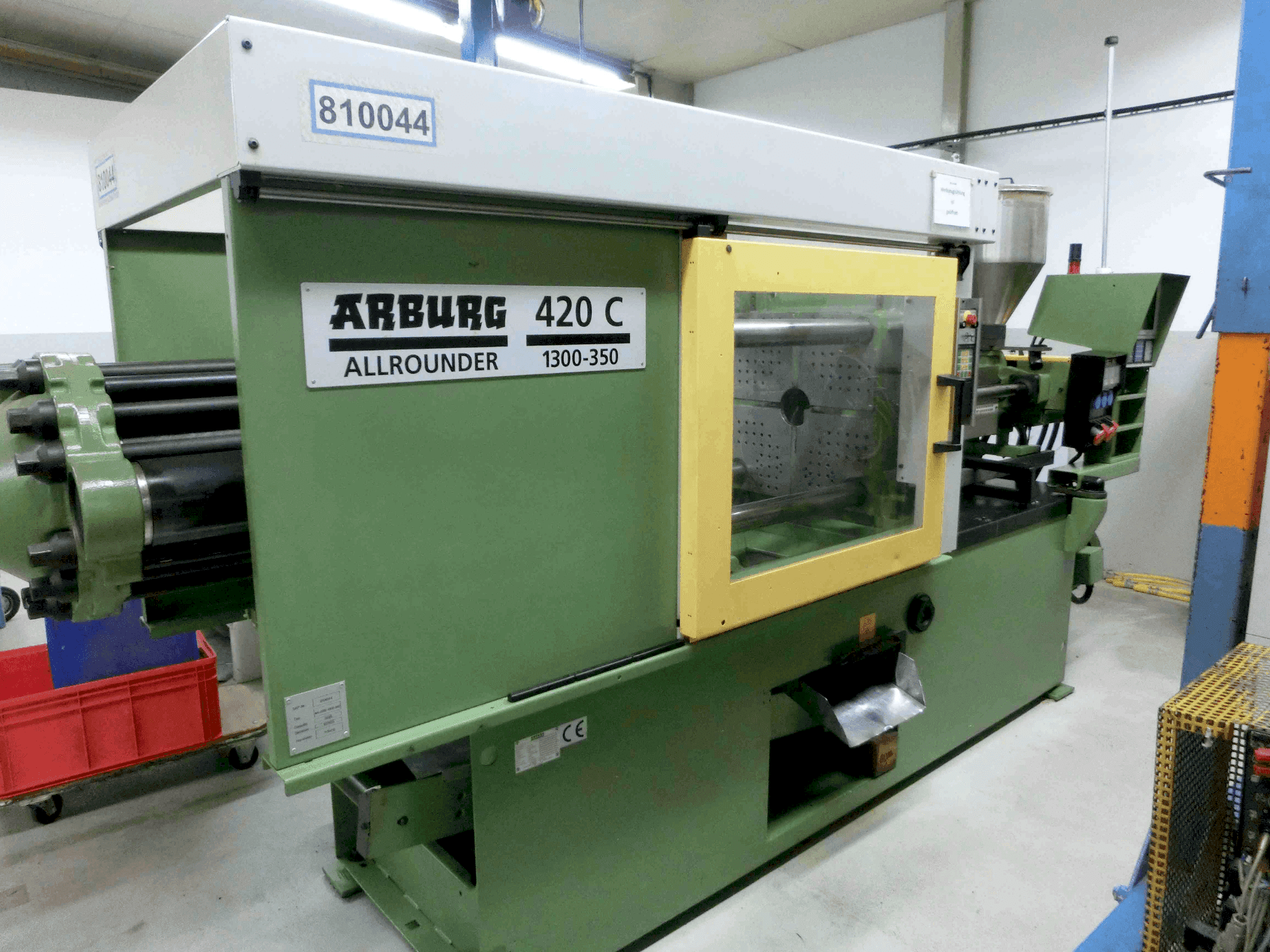

Front view of Arburg 420C-1300-350 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 420C-1300-350

Arburg - 420C-1300-350DE-INJ-ARB-1996-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg 420C-1300-350 For Sale | gindumac.com

Show in original language

This Arburg 420C-1300-350 was manufactured in 1996. A robust injection moulding machine featuring a clamping force of 1300 kN and a screw diameter range of 35/40/45 mm. It supports a mould weight up to 600 kg and has a mould installation height of 250 mm. Ideal for precise and efficient production, the Arburg 420C-1300-350 machine we have for sale is a valuable addition to any manufacturing setup. Contact us for more information.

Overview

brand: Arburg
year: 1996
MODEL: 420C-1300-350
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg 420C-1300-350

General Data

Machine weight: 4500 kg

Injection Unit

Screw diameter: 35/40/45 mm
Shot weight: 194 g/hp
Injection pressure: 2500/2050/1650 bar

Clamping unit

Clamping force: 1300 kN
Opening stroke: 500 mm
Distance between bars: 420x420 mm
Mould height min: 250 mm
Size of mold platens: 615x615 mm
Ejector stroke: 175 mm
Ejector force for / back: 40 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Closing force max: 50 kn
- - Opening force / increased max: 35/350 kn
- - Weight of mould half max: 600 kg

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
