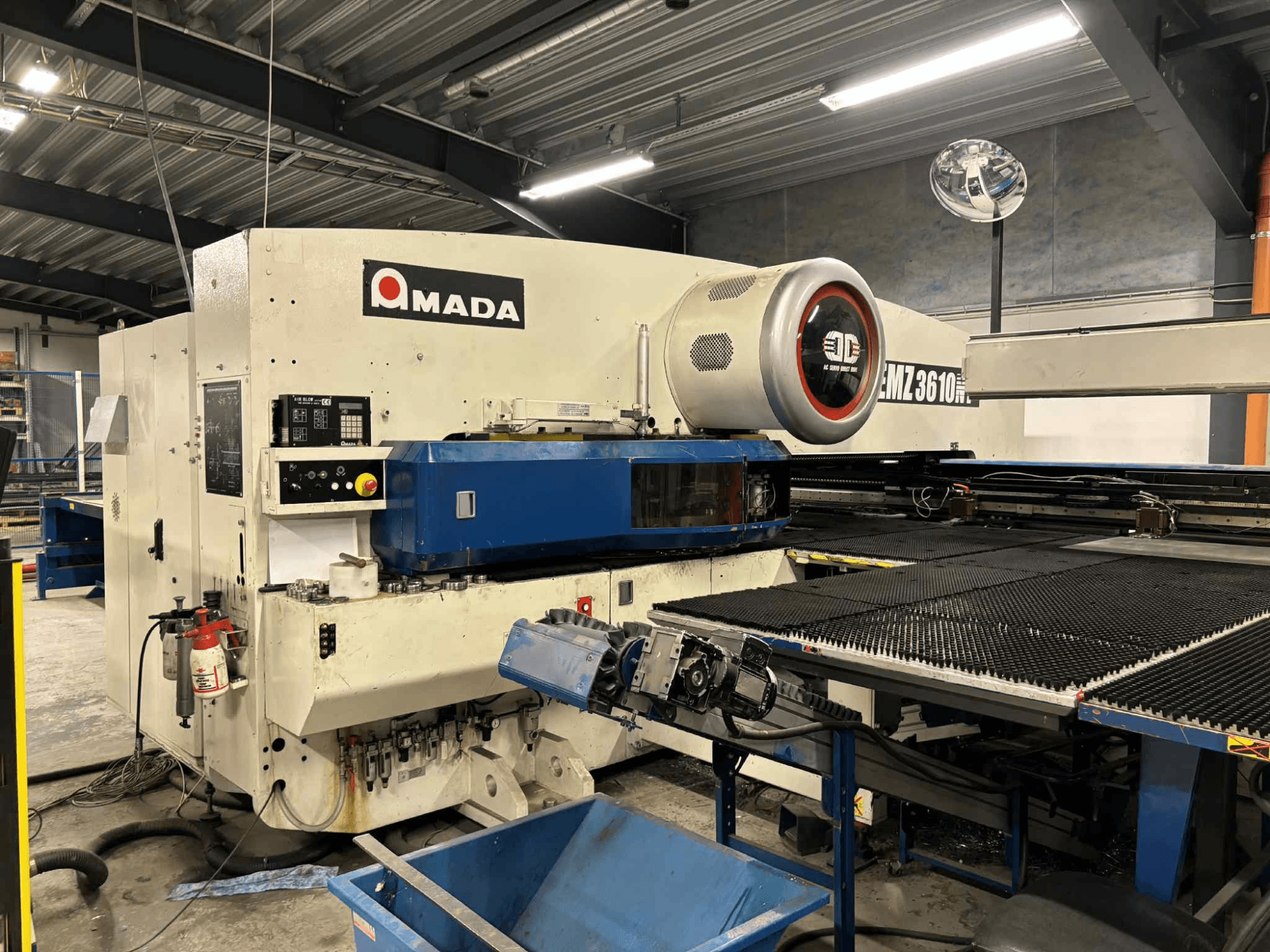

AMADA - EMZ 3610 NTNO-PUN-AMA-2011-00001

• Working area with repositioning: 5000 x 1525 mm

• Max. sheet thickness: 4,5 mm (mild steel)

• Feed rate X/Y: 100 / 80 m/min (128 m/min simultaneous)

• Positioning tolerance: +/- 0,1 mm

• Z-turret stations: 45

• AutoIndex stations: 4 (2 x B, 2 x C)

• Turret feed rate: 30 1/min

• Max. number of hits: 1000/min

• Machine frame: Bridge frame

• Punching drive: Servo-electric Twin Drive

• Drives (turret + table): AC-Servo motors

• Clamps: Pneumatical

• Electrical connection: 400V / 50Hz

• Electrical consumption: 1 kW – 7 kW

• Air consumption (machine): 250 l/min

• Air consumption (Air Jet Vakuum): 250 l/min

Additional equipment

• Loading unit: Loader L III 300

  • Sheet size min.: 1000 x 300 mm

  • Sheet size max.: 3000 x 1500 mm

  • Material thickness: 0,5 – 8,0 mm

  • Max. loading weight: 300 kg

  • Max. stack height: 300 mm

  • Max. pallet weight: 4000 kg (2x2000 kg)

  • Max. feed rate (traverse): 70 m/min

  • Number of suction cups: 34 pieces

  • Double sheet control: Yes, with sheet thickness detector

  • Air consumption: 510 l/min, 6 bar inlet pressure

  • Electrical connection: 400V

• Unloading unit with Parts Remover: PR 3 UL 300 P

  • Part size min./max.: 150 x 150 mm / 2500 x 1000 mm

  • Sheet thickness: 0,5 – 3,0 mm (4 mm for EM-Serie)

  • Max. part weight: 50 kg

  • Storage table size: 3400 x 1400 mm

  • Max. part size for unloading clamps: 3000 x 1500 mm

  • Max. stack height skeleton table: 450 mm

  • Max. weight skeleton table: 2000 kg

  • Max. stack height storage table: 450 mm

  • Max. weight storage table: 4000 kg

  • Max. feed rate X-/Y-direction: 180 / 90 m/min

  • Air consumption: 1000 l/min, 6 bar inlet pressure

  • Electrical connection: 400V
