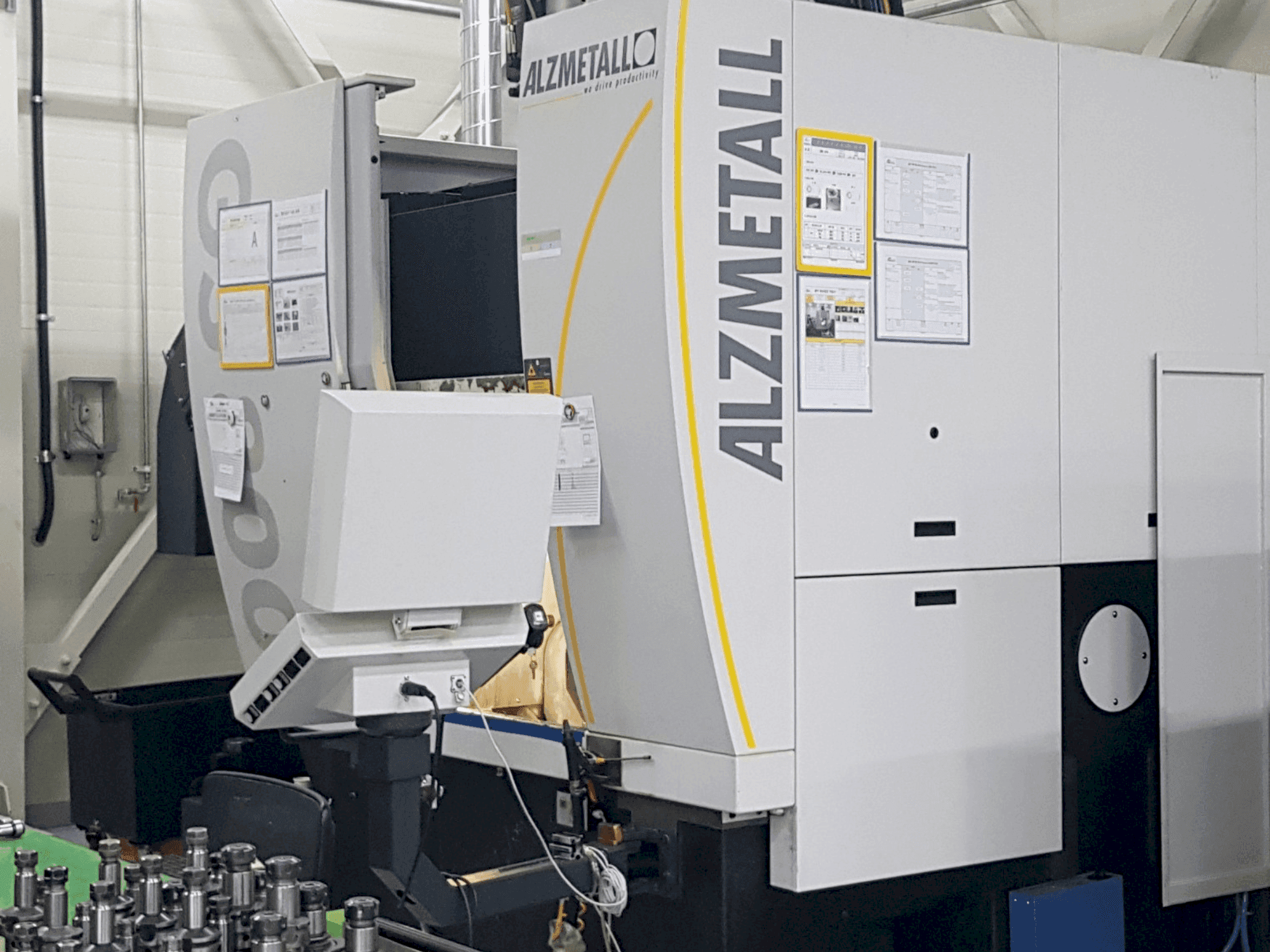

Front view of Alzmetall GS800/5-T  machine

Alzmetall GS800/5-T

Alzmetall - GS800/5-T

2015

Rs. 19,103,200
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis ALZMETALL GS800/5-T universal machining centre was manufactured in 2015. It boasts advanced technology including Heidenhain TNC 640 control, 30,000 rpm capability with HSK A63, and high precision packages ensuring remarkable exactness up to TP 0.005mm for X, Y, Z axes. Enhanced features like dynamic collision monitoring, tool measuring via laser and a robust security compound window combine to offer peak performance and safety. The ALZMETALL GS800/5-T machine we have for sale is equipped to increase productivity and precision in complex machining tasks. For more information about this ALZMETALL GS800/5-T universal machining centre, please reach out to us.

Overview

  • brand: Alzmetall
  • year: 2015
  • MODEL: GS800/5-T
  • application type: Milling
  • Location: South Korea
  • machine type: Machining centers (universal)
  • availability: Immediately
  • control unit brand: Heidenhain
  • GINDUMAC ID: KR-MIL-ALZ-2015-00001

Technical Information

General Data

  • Machine weight: 13000 KG

Control Unit

  • Brand: Heidenhain
  • Model: TNC 640

Main drive

  • Spindle speed range: 30000 1/MIN
  • Number of axis: 5

    Additional equipment

    • - A & C axis torque motors
    • - Optical gauging with Kinematics opt (incl. calibration ball dia 30mm)
    • - Hand-wheel HR 410
    • - Dynamic collision monitoring
    • - Work probe TC 50 (BLUM)// Tool measuring via laser (BLUM)
    • - Dynex version (rapid travel max. 100m/mm)
    • - High precision package HPP (TP 0.005mm for X, Y & Z axis, TP 4” for C axis, TP 6” for A axis)
    • - Chip rinsing of working area// Emulsion mist extraction (LTA)
    • - Production package A (Chip conveyor, coolant cleaning by micro filter, through the main spindle 20bar, coolant band filter, air sealing for linear measuring system)
    • - Best surface kit (for true contours, better surface quality & Higher accuracy)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Various axis configurations for multi-directional machining
        • - High spindle speed for efficient cutting
        • - Precision control with heidenhain tnc 640
        • - Collision monitoring for safety
        • - Tool measuring via laser for accuracy
        • - Chip rinsing and mist extraction for cleanliness
        • - Frequency control and mql system for efficiency
      • Qualitative Machine Benefits:
        • - Mql system
        • - Security compound window (instead of polycarbonate window)
        • - Roll shutter roof protection (automatic opening & closing with coordinate drive system)
        • - Iox metal sheet cover (inside)

      Extra information

      • - Machine is under power.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
